Remove/install front axle transverse control arm - AR33.20-P-1452MCC

MODEL 451.3/4

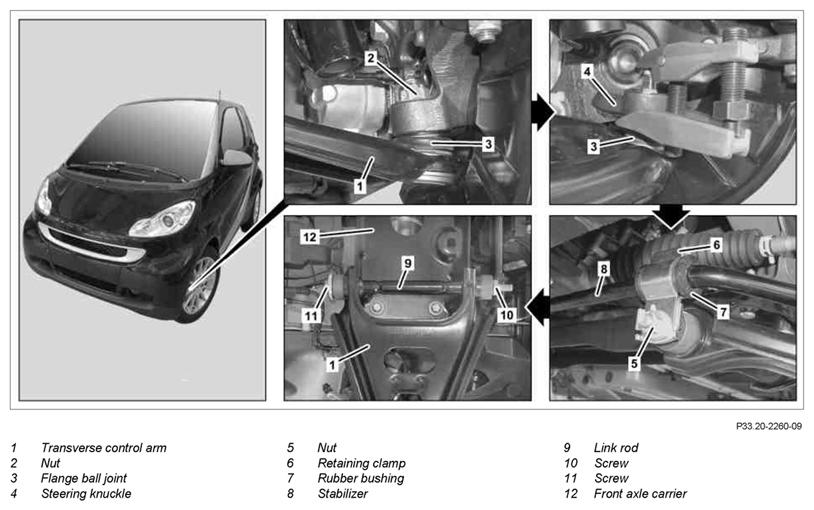

Fig 1: Identifying Front Axle Transverse Control Arm Remove/Install Components
G10978349Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
2 Remove underfloor panels Rechargeable drill/screwdriver
3 Unscrew nut (2) and, using puller, pry flange ball joint (3) off the steering knuckle (4) NOTES Carefully press off flange ball joint (3). Otherwise the rubber boot may be damaged and the transverse control arm will have to be replaced.
IMPORTANT Use a Torx wrench (size T40) counterhold threaded pin of flange ball joint (3) when unbolting.
INSTALLATION IMPORTANT : Check rubber boot, if necessary, replace transverse control arm (1). Position the vehicle on its wheels. Only tighten nuts (5) and bolts (10, 11) when the vehicle is unladen (approx. 75 kg weight on the driver seat and a full tank or approx. 20 kg weight in the front passenger area).
TORQUE SPECIFICATION
*BA32.20-P-1003-02I
    TORQUE SPECIFICATION *BA33.15-P-1001-01C
    TORQUE SPECIFICATION *BA33.25-P-1001-01D
    SPECIAL TOOL Puller Fig 2
4 Unscrew nut (5) and remove retaining clamp (6) from stabilizer bar (8) IMPORTANT The retaining clamp (6) is 2-piece.
INSTALLATION IMPORTANT : Check rubber mounts (7) for damage, and replace if necessary.
The opening of the rubber mounts (7) must point in the direction of travel.
Insert the retaining clamp (6) at a right angle to the stabilizer bar (8).
Screw nut (5) all the way on The nut (5) is tightened later on.

5 Using a suitable tool counterhold the left and right link rod (9) and unscrew the bolts (10, 11) INSTALLATION IMPORTANT : Bolts (10, 11) will be tightened again at a later stage.
6 Remove transverse control arm (1)
7 Release link rod (9) from front axle carrier (12) and replace Only when link rod (9) was damaged during removal.
8 Install in the reverse order
FRONT AXLE STABILIZER BAR

Number Designation Model 451.3/4
BA32.20-P-1003-02I Nut, stabilizer bar to retaining clamp Nm 95
TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number Designation Model 451.3/4
BA33.15-P-1001-01C Bolt, transverse control arm to front axle carrier Stage 1 Nm 50
Stage 2 ∠ ° 90
AXLE HOUSING, STEERING KNUCKLE

Number Designation Model 451.3/4
BA33.25-P-1001-01D Nut, flange ball joint to swivel bearing Nm 50
Fig 2: Identifying Puller (454 589 00 33 00)
G10978324Courtesy of MERCEDES-BENZ USA
