Check track rod and drag link linkage for play, check rubber boots - AP46.00-P-4653EW

MODEL 212, 218, 231

Shown on model 212.002

Fig 1: Checking Power Steering Fluid Level - Shown On Model 212.002

Courtesy of MERCEDES-BENZ USA

	Check
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of the mechanism when the components are moving.	AS00.00-Z-0009-01A
1	Turn key in ignition lock to position "0"
2	Raise vehicle using vehicle lift until the wheels are clear of the ground

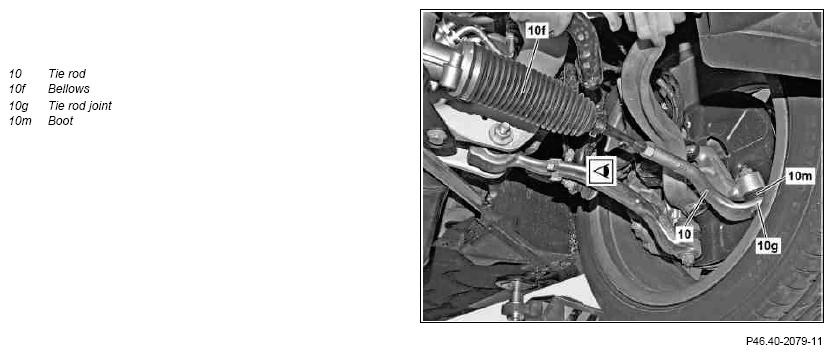

3	Check boots (10m) and tie rod joint (10g)	Check boots (10m) for condition, leaktightness and correct seat. Check play of tie rod joint (10g) by pulling and pushing firmly on the tie rod (10). In the event of complaints: ↓ Replace tie rod (10), subject to separate repair order.
4	Remove bottom engine compartment paneling	MODEL 231
			AR61.20-P-1105RK
5	Check boots (10f)	Do not check the boots (10f) by pressing in or around the raised beads. This can damage the material, resulting in leaks with consequential damage. Stretch bellows (10f) by turning steering to left and right wheel lock; check for cracks, indentations and chafing. In the case of cracks, indentations and chafe marks: ↓ Replace boot (10f), subject to separate repair order.
6	Install lower engine compartment paneling	MODEL 231
			AR61.20-P-1105RK
7	Lower vehicle
