Remove/install seat belt guide - AR91.45-P-0500MCC
MODEL 451.3/4

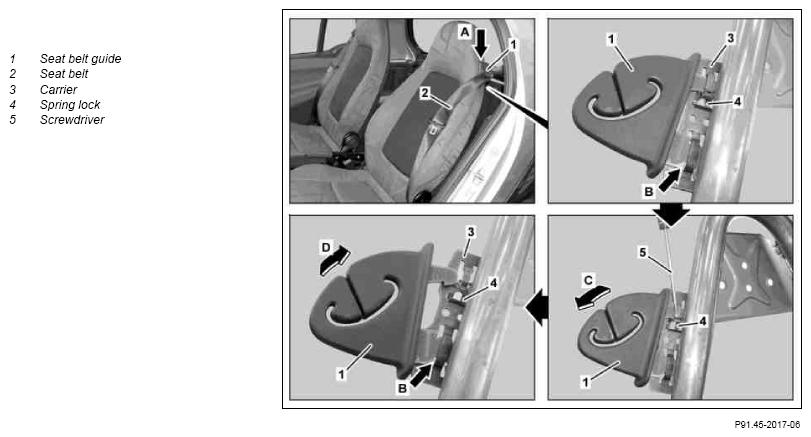

Removal of belt guide is shown with the foam section removed for sake of clarity
| Removing | |||
| 1 | Move the seat forward | ||
| 2 | Thread seat belt (2) out of belt guide (1) | ||
| 3 | Insert suitable screwdriver (5) from above (arrow A) between belt guide (1) and backrest cover | ||
| 4 | Release spring lock (4) by means of a screwdriver (5) by pressing downward on carrier (3) and fold belt guide (1) outward in direction of arrow (arrow C) | ||
| 5 | Remove screwdriver (5), release belt guide (1) from lower guide (arrow B) of carrier (3) and remove | ||
| Install | |||
| 6 | Insert belt guide (1) into lower guide (arrow B) of carrier (3) | ||
| 7 | Press belt guide (1) in direction of arrow (arrow D) | ||
| 8 | Thread seat belt (2) into belt guide (1) | ||
| 9 | Move seat back to its default position |
