Remove/install airbag unit on the steering wheel - AR91.60-P-0660MCU

MODEL 451.3/4

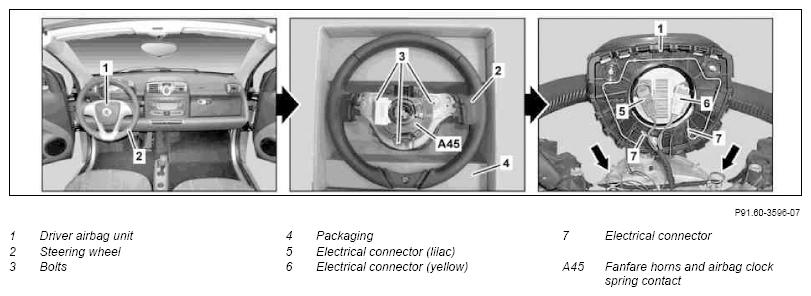

Fig 1: Identifying Airbag Unit On Steering Wheel Remove/Install Components
G10979195Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units. Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. AS91.00-Z-0001-01A
NOTES Notes on performing repair, body work and welding on vehicles with airbags and ETR units   AH91.00-P-0002-01SM
IMPORTANT Legal requirements on handling and storing airbags and emergency tensioning retractor units   AH91.00-P-0004-01A
IMPORTANT If the driver airbag unit (1) is deployed the complete steering wheel (2) must always be replaced
1 Remove steering wheel (2) and place onto a suitable base IMPORTANT For safety reasons, the steering wheel (2) must not be placed onto the driver airbag unit (1) or onto the fanfare horns and airbag clock spring contact (A54).
A suitable base would be, e.g. the packaging (4) of a new steering wheel (2).
AR46.10-P-0100MCC
2 Remove coverings for steering wheel spokes   AR46.10-P-0105MCC
3 Undo screws (3) on driver airbag unit (1) IMPORTANT The screws (3) remain on the steering wheel (2).
    TORQUE SPECIFICATION *BA91.60-P-1005-01C
4 Remove driver airbag unit (1) from steering wheel (2) until the electrical connectors (5, 6, 7) are accessible INSTALLATION IMPORTANT Before positioning the driver airbag unit (1) onto the steering wheel (2), make sure that the springs are correctly seated (arrows).
There are three springs (arrows on the steering wheel (2).

5 Detach the electrical connector (lilac) (5), electrical connector (yellow) (6) and the electrical connectors (7) and place the driver airbag unit (1) to one side IMPORTANT If driver airbag unit (1) is being replaced, the defective driver airbag unit (1) must be disposed of properly.
Refer to: ↓

REFER TO FORMS   Notes on disposing of airbag and emergency tensioning retractor units OS91.00-P-0001-01A
6 Install in the reverse order
7 Check supplemental restraint system using STAR DIAGNOSIS Only when replacing the driver airbag unit (1).
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04MCC
AIRBAG

Number Designation Model 451.3 Model 451.4
BA91.60-P-1005-01C Bolt, airbag to steering wheel Nm 4 4
