Notes on repairing the stationary heater - AH83.70-P-0001-03B
MODEL 168 Retrofitted Thermo Top C stationary heater
The heater can be dismantled into the following components during repair work:
- Combustion air blower unit
- Burner insert
- Retrofitted control unit/heat exchanger unit
The stationary heater is protected with two separate fuses (heater and timer) which are located at the right in the engine compartment on the bulkhead.
A fault shutoff occurs as a consequence of overvoltage or undervoltage (≥ 15 V or ≤10 V), in other words the heater interrupts the heating program and switches to power-down. The fault shutoff can be canceled by switching the heater off and on again.

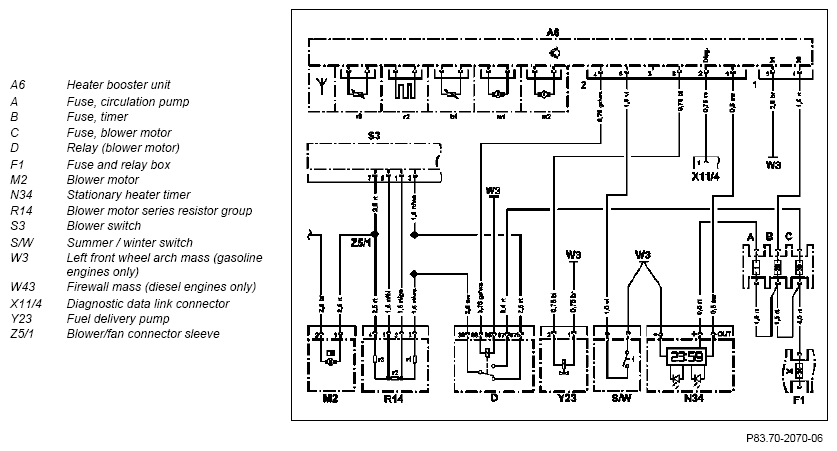

Retrofitted stationary heater system display
