Notes on differentiating characteristics of Telestart - AH83.70-P-0003-03A

MODEL 210 (except) with CODE 228 (Auxiliary heater) except MODEL 163, 168, 170, 202

MODEL 163, 168, 170, 202, 210 Retrofitted heater or stationary preheater Thermo Top C

IMPORTANT

Fig 1: Identifying Telestart Transmitter (T60)
G10037695Courtesy of MERCEDES-BENZ USA

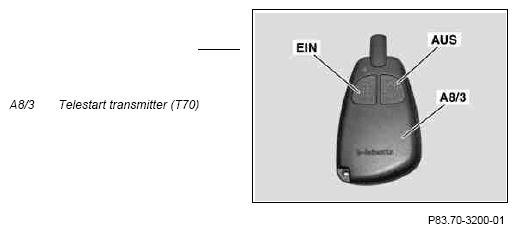

Fig 2: Identifying Telestart Transmitter (T70)
G10037696Courtesy of MERCEDES-BENZ USA

IMPORTANT The Telestart system T60 shall be replaced by being phased in as from the middle of 2000 with the Telestart system T70.

IMPORTANT The Telestart transmitter (A8/3) is an external differentiating characteristic for the various radio remote control systems.

NOTES The individual components in the Telestart systems must not be interchanged.

As otherwise the functionality will not be given.
