Remove/install refrigerant line between condenser and expansion valves - AR83.30-P-7817MEX

MODEL 451.390/392/490/492

With CODE V03 (Battery cooling system)

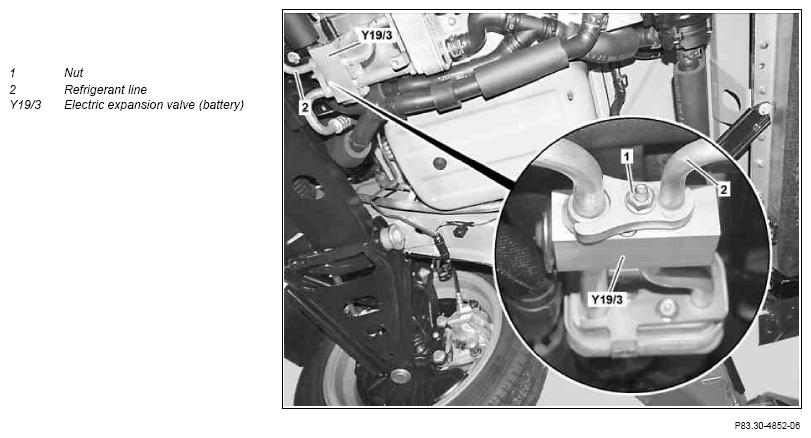

Fig 1: Identifying Refrigerant Line Between Condenser And Expansion Valves Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on model 451.490 with code V03 (Battery cooling system)

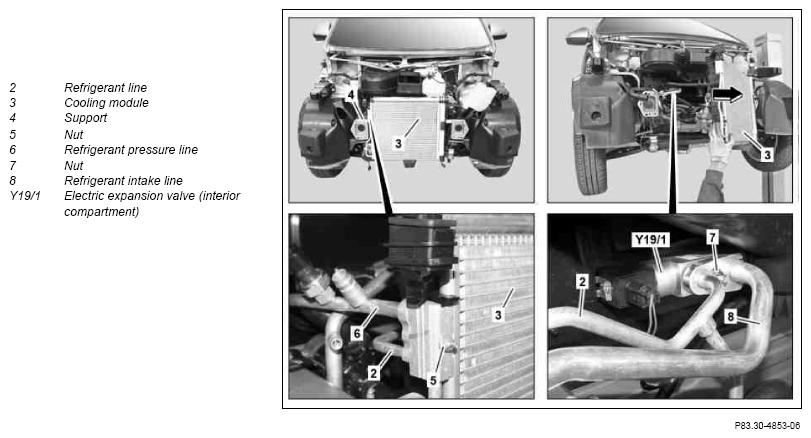

Fig 2: Identifying Refrigerant Line Between Condenser And Expansion Valves Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant.	Do not perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained.	AS83.00-Z-0001-01A
	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-N-0005-01A
	Procedure for a damaged or leaky air conditioning system		AH83.30-N-0004-01A
	Note on high-voltage on-board electrical system		AH54.00-P-0010-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on handling refrigerant R134a		AH83.30-N-0003-01A
	Remove/install
1	Remove transmitter key and mains plug
2	Remove front module		AR62.30-P-1575MCC
3	Drain air conditioning system	Evacuate air conditioning and then fill it.	AR83.30-P-1760MCC
4	Disconnect air conditioning service unit
	000 588 04 82 00 Air conditioning service unit		WS83.00-P-0031B
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
5	Raise vehicle with vehicle lift
6	Remove front underfloor paneling
7	Unscrew nut (1)	Model 451.390/392/490/492 with code V03 (Battery cooling system)
		Nut to refrigerant line separating point	*BA83.55-P-1011-01V
8	Disconnect refrigerant line (2) from electrical expansion valve (battery) (Y19/3)	Model 451.390/392/490/492 with code V03 (Battery cooling system)
	Compressor oils (specification 362.0)	Close off refrigerant line (2) and connection to electric expansion valve (battery) (Y19/3) using suitable stop plugs. Otherwise penetrating dirt and moisture will damage components that are connected to the refrigerant circuit. Replace sealing ring at refrigerant line (2) and moisten with compressor oil when inserting.	MB 362.0 compressor oil A 001 989 08 03
9	Lower vehicle with vehicle lift
10	Unscrew nut (5)
11	Disconnect refrigerant pressure line (6) and refrigerant line (2) from condenser
	Compressor oils (specification 362.0)	Close off refrigerant pressure line (6), refrigerant line (2) and connections to condenser using suitable stop plugs. Otherwise penetrating dirt and moisture will damage components that are connected to the refrigerant circuit. Replace sealing rings at refrigerant pressure line (6) and refrigerant line (2) and moisten with compressor oil when inserting.	MB 362.0 compressor oil A 001 989 08 03
12	Remove mount (4) and swivel right front cooling module (3) outwards in direction of arrow	For the next steps, a helper is required to hold the cooling module (3).
		Mounting fixture	Figure
13	Unscrew nut (7)	Nut, refrigerant line to expansion valve	*BA83.55-P-1006-01V
14	Disconnect refrigerant intake line (8) and refrigerant line (2) from electric expansion valve (interior) (Y19/1)
	Compressor oils (specification 362.0)	Close off refrigerant intake line (8), refrigerant line (2) and connections to electric expansion valve (interior) (Y19/1) using suitable stop plugs. Otherwise penetrating dirt and moisture will damage components that are connected to the refrigerant circuit.	MB 362.0 compressor oil A 001 989 08 03
		Replace sealing rings at refrigerant intake line (8) and refrigerant line (2) and moisten with compressor oil when inserting.
15	Remove refrigerant line (2) towards the front top
16	Install new desiccant cartridge		AR83.30-P-6525MCC
17	Install in the reverse order

Fig 3: Identifying Mounting Fixture (451 589 01 31 00)

Courtesy of MERCEDES-BENZ USA
