Remove/install refrigerant compressor - AR83.55-P-5300MEV

ENGINE 780.009 in MODEL 451.391/491

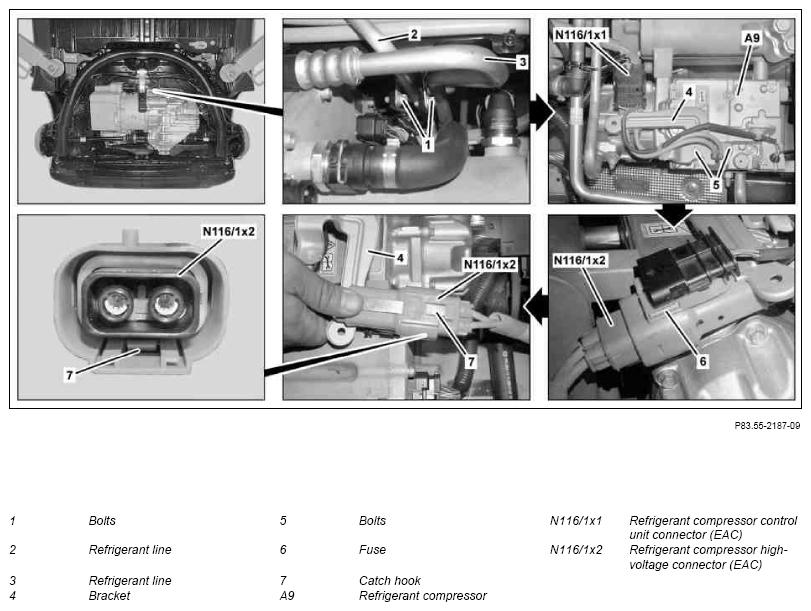

Fig 1: Identifying Refrigerant Compressor Remove/Install Components (1 Of 2)
G10979076Courtesy of MERCEDES-BENZ USA

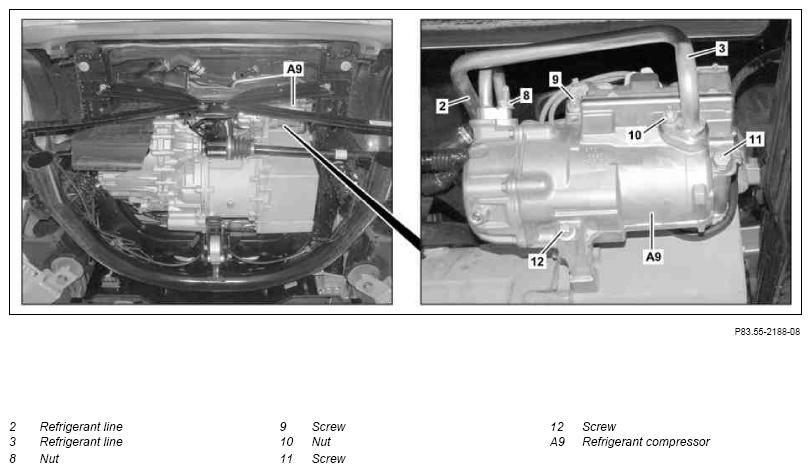

Fig 2: Identifying Refrigerant Compressor Remove/Install Components (2 Of 2)
G10979077DANGERDANGERNOTESNOTESNOTESNOTESIMPORTANTREMOVINGINSTALLINGINSTALLATION IMPORTANTREFER TO SPECIAL TOOLSIMPORTANTIMPORTANTIMPORTANTSPECIAL TOOLTORQUE SPECIFICATIONREFER TO CAPACITIES & SPECIFICATIONSNOTESINSTALLATION IMPORTANTTORQUE SPECIFICATIONIMPORTANTINSTALLATION IMPORTANTTORQUE SPECIFICATIONINSTALLATION IMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant. Do not perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained. AS83.00-Z-0001-01A
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
NOTES Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-N-0005-01A
NOTES Procedure for a damaged or leaky air conditioning system   AH83.30-N-0004-01A
NOTES Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
IMPORTANT Notes on handling refrigerant R134a   AH83.30-N-0003-01A
REMOVINGINSTALLING Remove/install
1 Drain air conditioning system INSTALLATION IMPORTANT Evacuate air conditioning and then fill it. AR83.30-P-1760MCC
2 Disconnect air conditioning service unit
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit   WS83.00-P-0031B
3 Remove vehicle key and mains plug
4 Perform disable for the high-voltage on-board electrical system IMPORTANT After completing the work, attach initial startup event log together with the power disable event log to the vehicle file. AR54.10-P-1160MEV
5 Remove external socket of communications control unit IMPORTANT If installed in vehicle. AR54.10-P-5108MEV
6 Remove bolts (1)
7 Remove battery charger for high-voltage battery   AR54.10-P-5106MEV
8 Release and disconnect refrigerant compressor control unit connector (EAC) (N116/1x1)
9 Remove screws/bolts (5) and swivel bracket (4) forwards
10 Release retainer (6) at refrigerant compressor high-voltage connector (EAC) (N116/1x2) by pressing in
11 Release and disconnect refrigerant compressor high-voltage connector (EAC) (N116/1x2) at catch hook (7) using a suitable tool, as shown IMPORTANT A feeler gauge can be used to release this, for example.
12 Cover plug and connector of refrigerant compressor high-voltage connectors (EAC) (N116/1x2) with protective covers SPECIAL TOOL Set of protective covers Figure
13 Unscrew nuts (8, 10) TORQUE SPECIFICATION Nut, refrigerant line to refrigerant compressor *BA83.55-P-1005-01V
14 Remove refrigerant lines (2, 3) at refrigerant compressor (A9), place to one side and remove sealing rings of refrigerant lines (2, 3)
REFER TO CAPACITIES & SPECIFICATIONS Compressor oils (specification 362.0) NOTES Close off refrigerant lines (2, 3) and refrigerant compressor (A9) with suitable stop plugs. Otherwise, penetrating dirt and moisture will damage components that are connected to the refrigerant circuit.
INSTALLATION IMPORTANT Replace sealing rings at refrigerant lines (2, 3) and moisten with compressor oil when inserting.
MB 362.0 compressor oil A 001 989 08 03
15 Remove screws/bolts (9, 11) TORQUE SPECIFICATION Bolt, refrigerant compressor to engine *BA83.55-P-1004-01V
16 Remove screw/bolt (12) and remove refrigerant compressor (A9) with screw/bolt (12) toward bottom right IMPORTANT The screw/bolt (12) remains in the refrigerant compressor (A9) during removal for reasons of accessibility.
INSTALLATION IMPORTANT Before inserting the refrigerant compressor (A9), ensure that screw/bolt (12) is inserted in the corresponding hole at the refrigerant compressor (A9).

    TORQUE SPECIFICATION Bolt, refrigerant compressor to engine *BA83.55-P-1004-01V
17 Remove filter dryer INSTALLATION IMPORTANT Always replace the filter drier after opening the refrigerant circuit. AR83.30-P-6525MCC
18 Install in the reverse order
REFRIGERANT COMPRESSOR

Number Designation Engine 780.009
BA83.55-P-1004-01V Bolt, refrigerant compressor to engine M8 Nm 20
M10 Nm 40
REFRIGERANT COMPRESSOR

Number Designation Engine 780.009
BA83.55-P-1005-01V Nut, refrigerant line to refrigerant compressor Nm 20
Fig 3: Identifying Set Of Protective Covers (001 589 01 91 00)
G09974030Courtesy of MERCEDES-BENZ USA
