Remove/install blend air flap actuator motor - AR83.10-P-2026MCC

MODEL 451.3/4 with CODE (I01) Air conditioning Plus

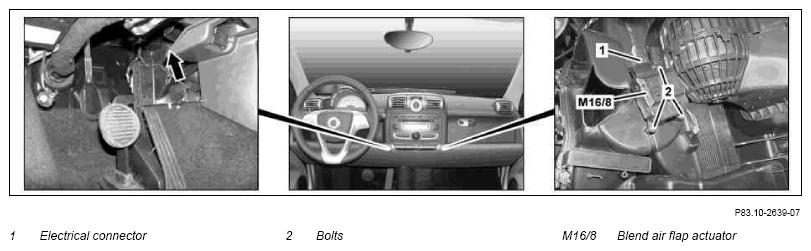

Fig 1: Identifying Blend Air Flap Actuator Motor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move right seat toward rear
2	Disconnect electrical connector (1) at blend air flap actuator (M16/8)
3	Remove bolts (2) and remove blend air flap actuator (M16/8)	Counterhold driver shaft of blend air flap actuator (M16/8) on the opposite side on air conditioner housing (arrow).
4	Install in the reverse order
5	Carry out function test on blend air flap actuator (M16/8)
