Remove/install air conditioner housing temperature sensor - AR83.30-P-8088MCV

MODEL 451.39/49

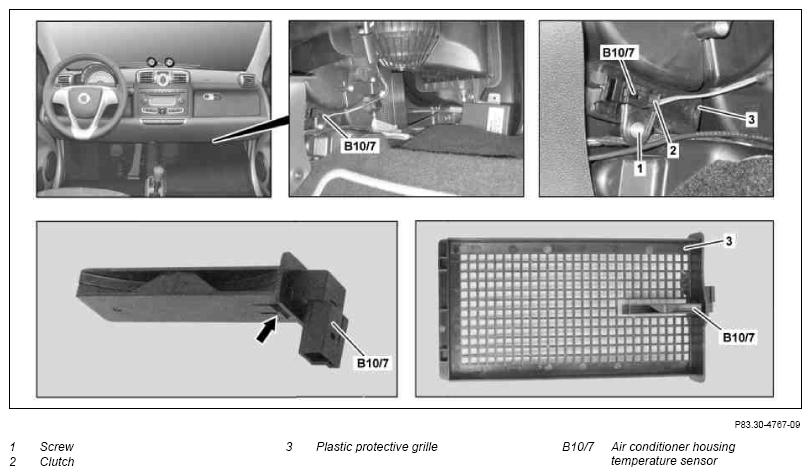

Fig 1: Identifying Air Conditioner Housing Temperature Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move right seat toward rear
2	Disconnect coupling (2) at air conditioner housing temperature sensor (B10/7)
3	Remove screw/bolt (1) and remove plastic protective grille (3) with air conditioner housing temperature sensor (B10/7)
4	Release catch hook (arrow) at air conditioner housing temperature sensor (B10/7) and remove air conditioner housing temperature sensor (B10/7) from plastic protective grille (3)	The air conditioner housing temperature sensor (B10/7) is fixed in place with two catch hooks (arrow) at plastic protective grille (3).
5	Install in the reverse order
