Remove and install evaporator temperature sensor - AR83.30-P-8085MCC

MODEL 451.3/4 with CODE (I01) Air conditioning Plus

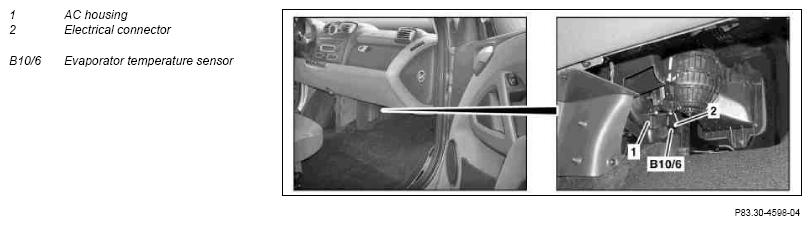

Fig 1: Identifying Evaporator Temperature Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move right seat toward rear
2	Disconnect electrical connector (2) at evaporator temperature sensor (B10/6)
3	Pull evaporator temperature sensor (B10/6) out of air conditioner housing (1)
4	Install in the reverse order
