Remove and install blower motor - AR83.25-P-1200MCU
MODEL 451.3/4

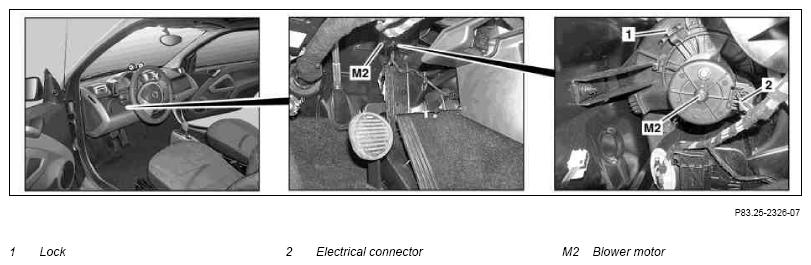

Shown on vehicle with Code (I01) AC Plus
| Remove/install | |||
| 1 | Adjust left seat to the rear | ||
| 2 | Detach electrical connector (2) on blower motor (M2) | ||
| 3 | Release lock (1) on blower motor (M2) | ||
| 4 | Detach blower motor (M2) by turning in counterclockwise direction and removing from air conditioning or heater housing | ||
| 5 | Install in the reverse order | ||
| 6 | Perform function test on blower motor (M2) |
