Check visible area of poly-V belt for wear - AP13.22-P-1352EW

Model 166 with engine 157, 276, 278, 642, 651

Model 207 with engine 271, 272, 273, 274, 276, 278, 642, 651

Model 212 with engine 156, 157, 271, 272, 273, 274, 276, 278, 642, 651

Model 217 with engine 157, 278, 279

Model 218 with engine 157, 274, 276, 278, 642, 651

Model 222 with engine 157, 276, 277, 278, 279, 642, 651

Model 231 with engine 157, 276, 278, 279

Model 292 with engine 157, 276, 642

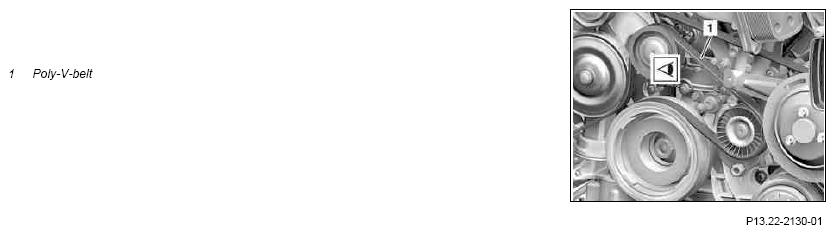

Fig 1: Inspecting Poly-V Belt Area For Wear

Courtesy of MERCEDES-BENZ USA

	Preparatory activity
1	Open engine hood and raise to vertical position	Model 166, 207, 212, 217, 218, 222, 231, 292
	Open engine hood and raise to vertical position	ENGINE 207, 212 Model 207, 212 with code U60 (Active engine hood (pedestrian protection)) Moving the engine hood to the vertical position: Detach left and right clamping levers at the upper left and right hinges.	AR88.40-P-1000EW
	Check
2	Check poly-V belt (1) for wear and damage at visible points and compare with damage profiles		AP13.22-P-1351-01A
2		If wear or damage is present: ↓ Replace the poly-V belt (1), subject to a separate repair order.	AP13.22-P-1351-01A
	Remove
3.1	Remove bottom engine compartment paneling	MODEL 207, 212, 218 with gasoline engine; MODEL 217, 222, 231
		MODEL 207, 212, 218	AR61.20-P-1105EW
		MODEL 217, 222	AR61.20-P-1105LF
		MODEL 231	AR61.20-P-1105RK
3.2	Remove bottom sections of soundproofing	Model 207, 212, 218 with diesel engine
			AR94.30-P-5300EW
3.3	Remove center underfloor paneling	Model 166, 292
			AR61.30-P-1001GQ
	Check
4	Check poly-V-belt (1) for wear and damage at visible points when vehicle is raised, and compare with damage profiles		AP13.22-P-1351-01A
4		If wear or damage is present: ↓ Replace the poly-V belt (1), subject to a separate repair order.	AP13.22-P-1351-01A
	Install
5.1	Install lower engine compartment paneling	MODEL 207, 212, 218 with gasoline engine; MODEL 217, 222, 231
		MODEL 207, 212, 218	AR61.20-P-1105EW
		MODEL 217, 222	AR61.20-P-1105LF
		MODEL 231	AR61.20-P-1105RK
5.2	Install bottom section of soundproofing	Model 207, 212, 218 with diesel engine
			AR94.30-P-5300EW
5.3	Install center underfloor paneling	Model 166, 292
			AR61.30-P-1001GQ
6	Close engine hood	Model 166, 207, 212, 217, 218, 222, 231, 292
	Close engine hood	ENGINE 207, 212 Model 207, 212 with code U60 (Active engine hood (pedestrian protection)) Close engine hood: Mount left and right clamping levers at the upper left and right hinges.	AR88.40-P-1000EW
