Inspect poly-V belt for wear and damage - AP13.22-P-1351MCC
ENGINE 132.9, 660.9 in MODEL 451.3/4

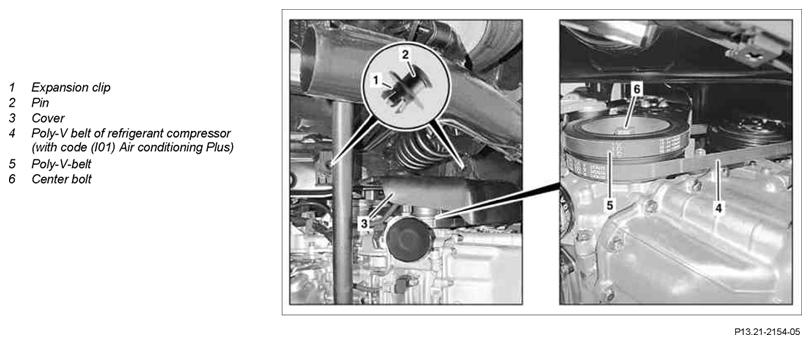

Shown on model 451.331 with engine 132.9 and code (I01) Air conditioning Plus

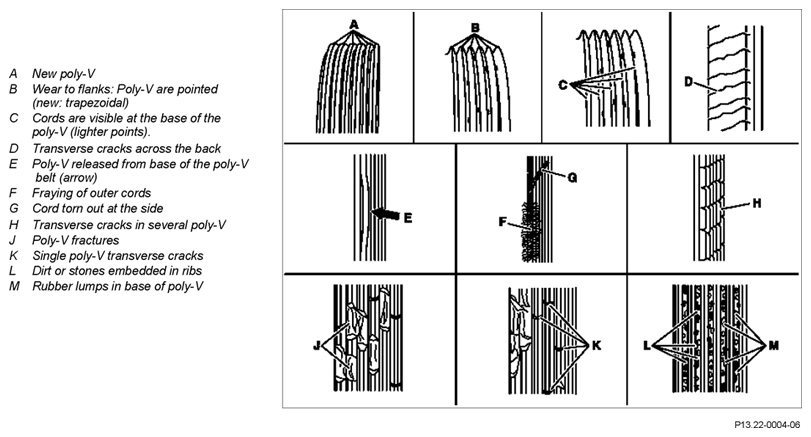

Damage profiles
| Remove | |||
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||
| 2 | Pull out pins (2) using suitable pliers from the expansion clip (1), remove expansion clip (1) and cover (3) | ||
| Check | |||
| 3 | Turn engine at the center bolt (6) of the crankshaft in the direction of engine rotation and check poly-V belt (5) and poly-V belt of refrigerant compressor (4) for wear and damage | ||
| Remove/install poly-V belt | ENGINE 132.9 in MODEL 451.3/4 (except 451.334/380/480) | AR13.22-P-1202MCC | |
| Remove/install poly-V belt | ENGINE 660.9 | AR13.22-P-1202MCD | |
| Remove/install poly-V belt of starter-alternator | ENGINE 132.910 in MODEL 451.334/380/480 | AR13.22-P-0005MCC | |
| Remove/install poly-V belt for compressor | ENGINE 132.9 with CODE I01 (Air conditioning Plus) | AR13.21-P-1202MCC | |
| Remove/install poly-V belt for compressor | ENGINE 660.9 with CODE I01 (Air conditioning Plus) Apply chalk marking as a starting point on the poly-V belt (5) and on the poly-V belt of the refrigerant compressor (4). |
AR13.21-P-1202MCD | |
| Install | |||
| 4 | Position cover (3), insert expansion clips (1) and press in pins (2) | ||
| 5 | Lower vehicle with vehicle lift |
