Check all visible parts of vehicle underside for damage and leaks - AP00.20-P-0054EW
Model 164, 171, 172, 197.3/4, 203, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 231, 251

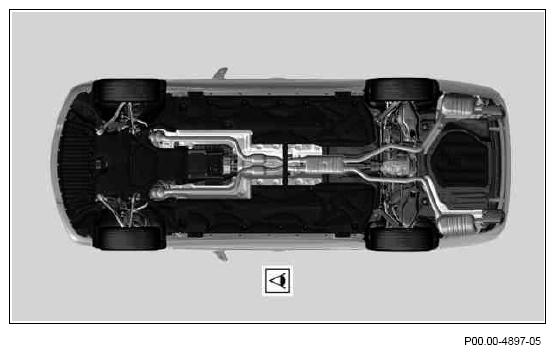

Shown on model 212
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Note on high-voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Evaluation of high-voltage components | AH54.00-P-6500-01SXH | ||
| Notes on evaluating leakages | AH00.00-N-0011-01A | ||
| Remove | |||
| 1.1 | Remove lower center and rear engine compartment paneling | Vehicles with lower engine compartment paneling | |
| MODEL 164 | AR61.20-P-1105GZ | ||
| Model 171 | AR61.20-P-1105V | ||
| Model 172 | AR61.20-P-1105W | ||
| Model 197 | AR61.20-P-1105RQ | ||
| MODEL 203, 209 | AR61.20-P-1105P | ||
| Model 204 (except 204.9), 207, 212, 218 | AR61.20-P-1105EW | ||
| MODEL 204.9 | AR61.20-P-1105CY | ||
| Model 211 | AR61.20-P-1105T | ||
| MODEL 216, 221 except CODE Z07 (Highest protection) | AR61.20-P-1105SX | ||
| Model 219 | AR61.20-P-1105TX | ||
| MODEL 221.1 with CODE Z07 (Highest protection) | AR61.20-P-1105SXS | ||
| MODEL 230 with CODE P99 ("AMG Black Series" special model) | AR61.20-P-1105RBS | ||
| MODEL 230 except CODE P99 ("AMG Black Series" special model) | AR61.20-P-1105R | ||
| Model 231 | AR61.20-P-1105RK | ||
| Model 251 | AR61.20-P-1105RT | ||
| 1.2 | Remove bottom section of soundproofing | Vehicles with bottom section of soundproofing | |
| MODEL 164 | AR94.30-P-5300GZ | ||
| Model 172 | AR94.30-P-5300W | ||
| MODEL 203, 209 | AR94.30-P-5300P | ||
| Model 204 (except 204.9), 207, 212, 218 | AR94.30-P-5300EW | ||
| Model 211 | AR94.30-P-5300T | ||
| Model 219 | AR94.30-P-5300TX | ||
| Model 251 | AR94.30-P-5300RT | ||
| Check | |||
| 2 | Check visible systems, powertrain components, lines, hoses on the underfloor for damage, correct routing, leaks, correct mounting and corrosion | Spring elements, Shock absorber, Suspension lines and sensors, Steering, Front axle, Engine and mounted major assemblies, Cooling system, Heater and A/C system, Transmission, Exhaust system, Exhaust aftertreatment, Heat shields, Rear axle, Rear axle shafts with boots, Rear axle differential, Fuel system. If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 3 | Check visible systems, components, lines and hoses on the underfloor for damage, correct routing, leaks, correct mounting and corrosion | Depends on equipment Transfer case (4Matic), Stationary heater (equipment specific) Hybrid components. If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 4 | Check underfloor and visible components on underfloor for damage, routing, mounting and corrosion | Underfloor paneling, Underfloor. If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 5 | Check visible body panels for corrosion | Front axle carrier, Rear axle carrier, Chassis steering arms, Underfloor body panels, Body reinforcements. If corrosion is detected: ↓ proceed in accordance with the country-specific regulations for mobility and body shell complaints. |
|
| 6 | Check vehicle underside for evidence of driving over obstacles or damage caused by contact with the vehicle underside | If driving over obstacles or damage caused by contact with the vehicle underside is suspected: ↓ Check steering for mechanical damages. If the steering shows signs of mechanical damage: ↓ Subject to separate repair order, replace steering for safety reasons. |
|
| Install | |||
| 7.1 | Install lower center and rear engine compartment paneling | Vehicles with lower engine compartment paneling | |
| MODEL 164 | AR61.20-P-1105GZ | ||
| Model 171 | AR61.20-P-1105V | ||
| Model 172 | AR61.20-P-1105W | ||
| Model 197 | AR61.20-P-1105RQ | ||
| MODEL 203, 209 | AR61.20-P-1105P | ||
| Model 204 (except 204.9), 207, 212, 218 | AR61.20-P-1105EW | ||
| Model 204.9 | AR61.20-P-1105CY | ||
| Model 211 | AR61.20-P-1105T | ||
| MODEL 216, 221 except CODE Z07 (Highest protection) | AR61.20-P-1105SX | ||
| Model 219 | AR61.20-P-1105TX | ||
| MODEL 221.1 with CODE Z07 (Highest protection) | AR61.20-P-1105SXS | ||
| MODEL 230 with CODE P99 ("AMG Black Series" special model) | AR61.20-P-1105RBS | ||
| MODEL 230 except CODE P99 ("AMG Black Series" special model) | AR61.20-P-1105R | ||
| Model 231 | AR61.20-P-1105RK | ||
| Model 251 | AR61.20-P-1105RT | ||
| 7.2 | Install bottom sections of soundproofing | Vehicles with bottom section of soundproofing | |
| MODEL 164 | AR94.30-P-5300GZ | ||
| Model 172 | AR94.30-P-5300W | ||
| MODEL 203, 209 | AR94.30-P-5300P | ||
| Model 204 (except 204.9), 207, 212, 218 | AR94.30-P-5300EW | ||
| Model 211 | AR94.30-P-5300T | ||
| Model 219 | AR94.30-P-5300TX | ||
| Model 251 | AR94.30-P-5300RT |
