Storage, care and removal from storage of vehicles - AP00.20-P-0060MC

Model 451.3/4

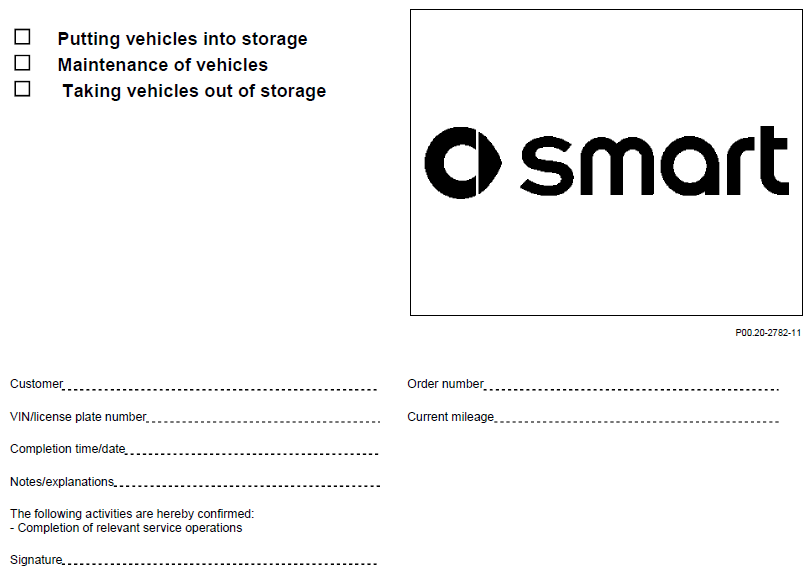

Fig 1: Storage Maintenance Sheet

Courtesy of MERCEDES-BENZ USA

ON	PF	OFF		Input condition not OK:	ⓧ
Completed
□			Put vehicle into storage  In order to protect the fuel tank against condensation water, we recommend filling the vehicle with fuel	... Except MODEL 451.391/491	□
□			Charge high-voltage battery completely	... Model 451.391/491	□
□			Apply service brake until it becomes warm so that any moisture on brake disks and brake lining evaporates	... Moisture on brake disks and braking linings must be prevented. The brake system will otherwise be damaged as a result of the brake linings sticking to the brake disks.	□
□			Secure the vehicle by engaging a gear or by a wedge, parking brake in release position	...	□
□			Move all backrests to vertical position	...	□
□			Open front passenger door and lock the vehicle using the transmitter key	...	□
□			Disconnect ground line of battery	... Battery discharging caused by no-load current consumers (clock, etc.) is prevented. The diagnostic system does not need to be connected.	□	AR54.10-P-0003MCC
□			Close door on passenger-side	...	□
□			Confirm in table that vehicle has been put into storage	...	□
	□		Maintenance of parked vehicles  Perform stock maintenance every 90 days and confirm in table that stock maintenance has been performed	...	□	AP00.20-P-0018B
				The defects or complaints found during the process are to be rectified when the vehicle is taken out of storage or during the delivery inspection.
	□		Perform stock maintenance every 270 days and confirm in table that stock maintenance has been performed	...	□	AP00.20-P-0018B
				The defects or complaints found during the process are to be rectified when the vehicle is taken out of storage or during the delivery inspection.
		□	Take vehicle out of storage  Unlock vehicle via lock cylinder of driver door	...	□
		□	Open front passenger door from inside	...	□
		□	Connect ground line to battery	...	□	AR54.10-P-0003MCC
				The diagnostic system does not need to be connected.
		□	Eliminate defects found during stock care	... If defects are found: ↓ Rectify the found defects subject to a separate repair order.	□
		□	Confirm in table that vehicle has been taken out of storage	...	□

VEHICLE PUT INTO STORAGE BY

Parked at:
Company:
Name:
Date:
Signature:
Remarks/defects found:

STOCK MAINTENANCE PERFORMED EVERY 90 DAYS BY

Parked at:
Company:
Name:
Date:
Signature:
Remarks/defects found:

STOCK MAINTENANCE PERFORMED EVERY 270 DAYS BY

Parked at:
Company:
Name:
Date:
Signature:
Remarks/defects found:

VEHICLE TAKEN OUT OF STORAGE BY

Parked at:
Company:
Name:
Date:
Signature:
Remarks/defects found:
