Perform delivery and hand-over inspection - AP00.20-P-1100A

MODEL 451.390/392/490/492

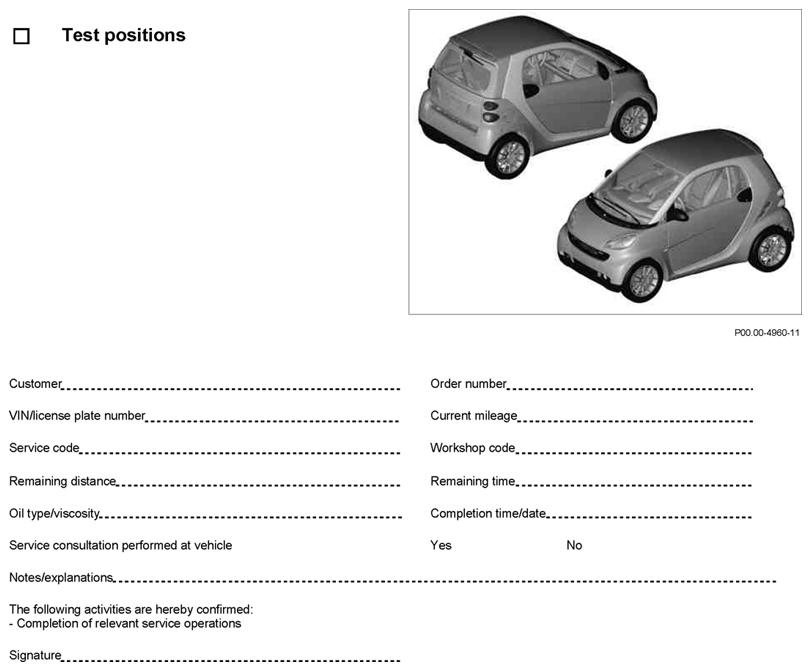

Fig 1: Stock Maintenance Sheet - Test Positions

Courtesy of MERCEDES-BENZ USA

		Input condition not OK:	ⓧ
Completed
	Before test drive if installed in model version or included in special equipment (SA)
□	Load battery (12 V)	...	◦
□	Check tire inflation pressure, correct if necessary	...	◦
□	Tighten the wheel attachment bolts to the correct torque	...	◦
□	Install the wheel covers	...	◦
□	Check the exterior lights, horn, hazard warning system and turn signal lamps	...	◦
□	Check setting of headlamps, correct if necessary	...	◦
□	Check setting of front fog lamps (special equipment), correct if necessary.	...	◦
□	Check windshield wipers, windshield washer nozzles and adjust if necessary	...	◦
□	Service area: Check fluid levels, correct if necessary	...	◦
□	Check windows, paint, plastic parts (incl. roof) for shipping damage; rectify if necessary (see end of sheet)	...	◦
□	Check setting of doors and flaps (see end of sheet)	...	◦
□	Mount the rod antenna	...	◦
□	Check the central locking	...	◦
□	Check the display instruments, the indicator lamps and the warning lamps; set the clock	...	◦
□	Check the interior illumination and the illumination of the interior controls	...	◦
□	Check audio system, CD changer (SA) and speaker system	...	◦
□	Check power windows	...	◦
□	Check the manually operated or power outside mirror adjustment (special equipment)	...	◦
□	Check the headlamp range adjustment	...	◦
□	Check function of complete Soft top "open" valve	...	◦
□	Check that roller sun blind (special equipment) functions correctly	...	◦
□	Check the rear window heater and the heated outside mirrors (special equipment)	...	◦
□	Connect Star Diagnosis and deactivate transport protection in menu item "Control unit adaptation" of drivetrain control unit (N127)	...	◦
□	Check seat adjustment	...	◦
□	Check seat belts	...	◦
□	Check all other electrical consumers	...	◦
□	Check airbag warning sticker for correct location and language	...	◦
□	Inspect the vehicle interior for proper condition and damage	...	◦
□	Hazard warning triangle, first aid kit pocket, TIREFIT	...	◦
□	Check operator's manual, service booklet, quick guide and operating instructions for accessories; add if necessary	...	◦
□	Check ventilation, heating, air conditioning system	...	◦
□	Reset maintenance interval display: Connect Star Diagnosis and select in menu item: - Control unit adaptation - Maintenance interval display - Reset maintenance interval display at total distance < 250 km	...	◦
		Immediately before vehicle handover to the customer.
	During test drive if installed in model version or included in special equipment
□	Service and parking brake (without dynamometer)	...	◦
□	Shift mechanism	...	◦
□	Steering wheel centering	...	◦
	After test drive if installed in model version or included in special equipment	...	◦
□	Check major assemblies for leaks and damage	...	◦
□	Check electric drive cooling system and high-voltage battery cooling system for leaktightness and damage	...	◦
□	Check brake system for leaks and damage	...	◦
□	Check vehicle underfloor for signs of damage.	...	◦
□	Engine compartment: visual inspection of routing and condition of electrical lines and hoses	...	◦
□	Immediately before vehicle handover to customer: Check charge level of high-voltage battery	...	◦
□	Quick test of DAS (DAS) (read out fault memory, erase if necessary)	...	◦
□	Check open service fixes, take action if necessary	...	◦
□	Remove any transport film, cardboard boxes and covers	...	◦
		Ensure that the seat is not made dirty by any dirty foils. Tear the protective foil of the seat centrally and remove starting from the top.
