Check swivel seat or swivel/tilting seat for proper operation - AP86.20-P-8651C

MODEL 156, 169, 172, 176, 204, 205, 207, 212, 217, 218, 221, 222, 242, 245, 246

(with driving aids ex factory)

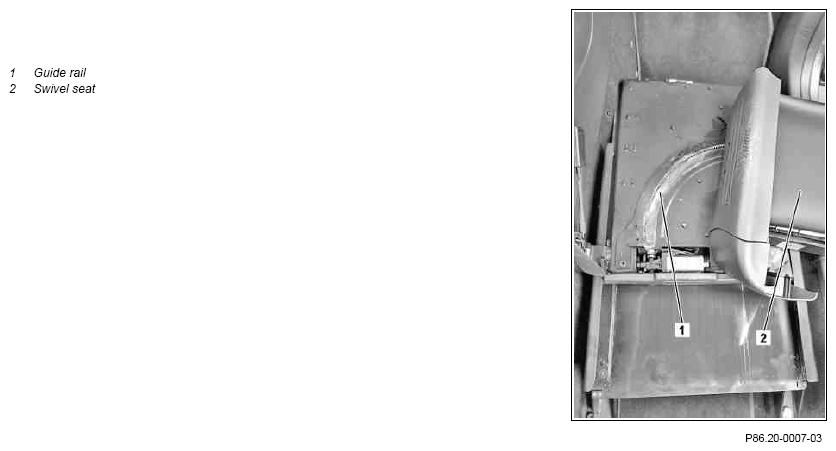

Fig 1: Identifying Guide Rail And Swivel Seat

Courtesy of MERCEDES-BENZ USA

	Check
1	Check swivel seat (2) for proper operation	If there are problems: ↓ Repair the problem, subject to separate repair order.
	Clean
2	Clean swivel seat (2) when extended using vacuum cleaner	Fluids must not  be used.
	Lubricate
3	Lubricate guide rail (1) on swivel seat (2)
