Check pedal cover - AP86.20-P-8657C
MODEL 156, 169, 172, 176, 204, 205, 207, 212, 217, 218, 221, 222, 242, 245, 246
(with driving aids ex factory)
Courtesy of MERCEDES-BENZ USA
 |
Check |
|
|
| 1 |

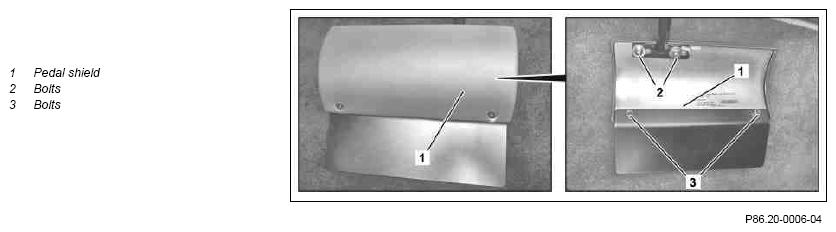

Check that threaded connections (2, 3) at bracket are tight |
Threaded connections (2, 3) not secured adequately:
↓
Retighten threaded connections (2, 3). |
|
