Replace the oil pump chain - AR18.10-P-2140SX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272
ENGINE 273
| Removing | |||
| 1 | Remove oil pump | ||

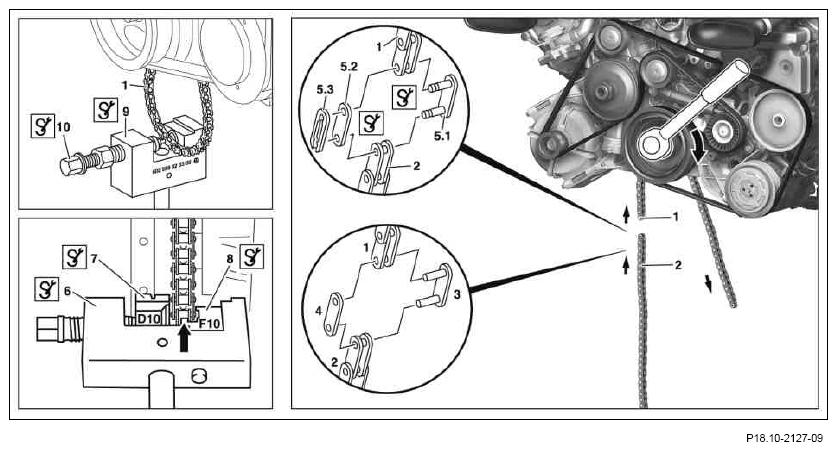

| 2 | Separate the old pump chain (1) | AR18.10-P-2140-01TX | |
| Install | |||
| 3 | Draw in new oil pump chain (2) and rivet | AR18.10-P-2140-02TX | |
| 4 | Install oil pump |
