Remove/install oil-water heat exchanger - AR18.30-P-6840SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 207, 212, 221, 218

Shown on engine 642.910

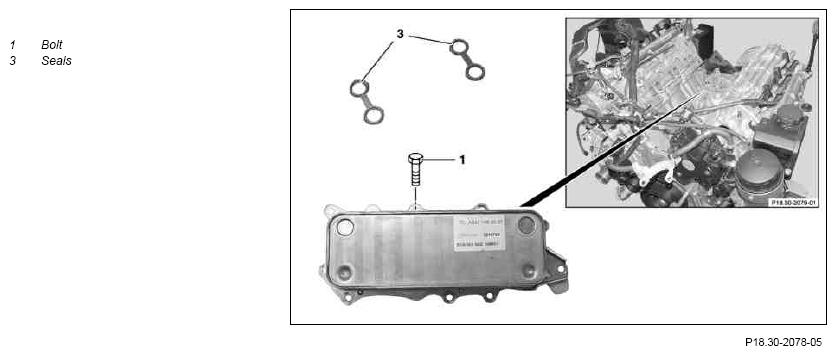

Fig 1: Oil-Water Heat Exchanger Remove/Install Components - Shown On Engine 642.910
G09975234Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
1 Remove charge air manifold   AR09.41-P-1310SXI
2 Remove bolts (1) on oil/water heat exchanger TORQUE SPECIFICATION *BA18.30-P-1001-01J
3 Remove oil-water heat exchanger INSTALLATION NOTES Install new seals (3) to avoid leaks.
IMPORTANT Seals (3) and oil-water heat exchanger must be free of oil and grease.
4 Install in the reverse order
5 Check engine oil level NOTES In order to avoid measurement errors, vehicle must be parked on an even surface.
IMPORTANT Inspect engine oil level about 5 min. after switching off warm engine		 AR18.00-P-3035-01SXI
FLUID SPECIFICATION Without code (474) Particulate filter *BF18.00-P-1001-01A
FLUID SPECIFICATION With code (474) Particulate filter *BF18.00-P-1001-01S
6 Check for leaks with engine running
7 Inspect cooling system for leaks Model 207 AR20.00-P-1010CW
Model 212, 218 AR20.00-P-1010OMA
Model 221 AR20.00-P-1010SX
OIL COOLING SYSTEM

Number Designation Engine 642
BA18.30-P-1001-01J Bolt, oil-water heat exchanger to crankshaft housing Nm 12
ENGINE LUBRICATION SYSTEM

Number Designation Engine 642.826/830/832/834/836/838/850/852/853/854/856/858/862/868 with particulate filter
BF18.00-P-1001-01S Engine oil Filling capacity (oil and filter change) Liters 8.0
Specifications for Operating Fluids Specification Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation Engine 642.930 with particulate filter up to engine No. 64293040458147 Engine 642.930 with particulate filter starting from engine No. 64293040458148 Engine 642.932/961 with particulate filter
BF18.00-P-1001-01S Engine oil Filling capacity (oil and filter change) Liters 9.5 8.0 8.0
Specifications for Operating Fluids Specification Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation Engine 642.930 without particulate filter up to engine no. 64293040458147 Engine 642.930 without particulate filter as of engine no. 64293040458148 Engine 642.932/961 without particulate filter
BF18.00-P-1001-01A Engine oil Filling capacity (oil and filter change) Liters 9.5 8.0 8.0
Specifications for Operating Fluids Specification Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
