Remove/install oil spray nozzles (pistons) - AR18.00-P-4000AMG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 156

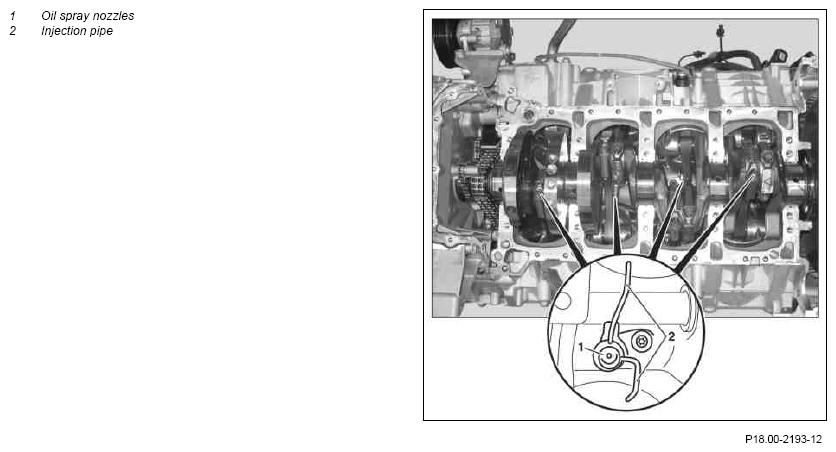

Fig 1: Oil Spray Nozzles (Pistons) Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1.1	Remove engine with front axle carrier	Model 164, 251	AR01.10-P-2500GZS
1.2	Remove engine	Model 204	AR01.10-P-2400CMG
		Model 209	AR01.10-P-2400QMG
		Model 211, 219	AR01.10-P-2400TMG
		Model 212	AR01.10-P-2400EMG
		Model 216, 221	AR01.10-P-2400SMG
		Model 230	AR01.10-P-2400RMG
2	Detach engine from front axle carrier	Model 164, 251	AR01.10-P-2510GZS
3	Detach transmission from engine
4	Mount engine onto assembly stand
5	Remove crankshaft		AR03.20-P-4351AMG
6	Remove oil spray nozzles (1)	Ensure that injection pipes (2) of oil spray nozzles (1) are not bent or damaged during installation.
6	Remove oil spray nozzles (1)		*BA18.00-P-1001-01G
	Clean
7	Clean and check oil ducts	Blow through oil ducts in direction of flow oil with compressed air. Do not use any hard objects for cleaning.
8	Install in the reverse order

ENGINE LUBRICATION, ENGINE OIL COOLING, GENERAL

Number	Designation		Engine 156
BA18.00-P-1001-01G	Fitted bolt, oil spray nozzle to crankcase	Nm	13
