Remove/install oil level check switch - AR18.40-P-5113SX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272, 273
| Remove/install | |||

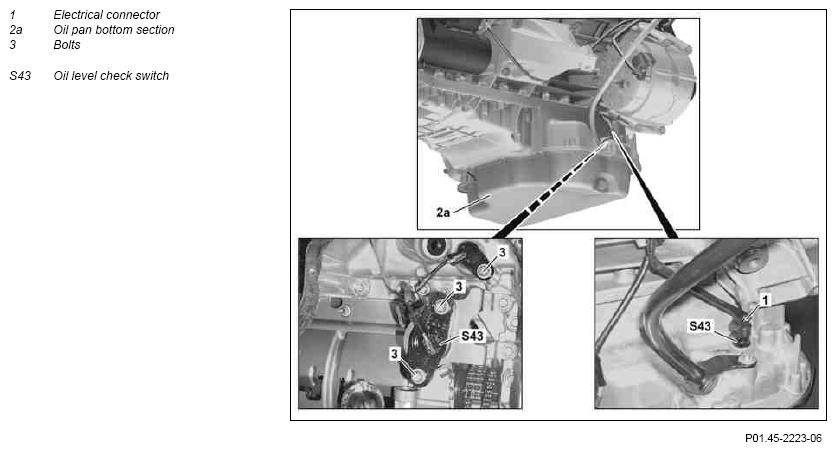

| 1 | Remove oil pan bottom section (2a) | ||
| 2 | Disconnect electrical connector (1) at oil level check switch (S43) | ||
| 3 | Remove bolt (3) | *BA18.40-P-1001-02B | |
| 4 | Remove oil level check switch (S43) from oil pan | ||
| 5 | Install in the reverse order | ||
| 6 | Connect STAR DIAGNOSIS and read fault memory | Stored faults which may be caused by removed cables or by a simulation, must be processed and erased in the fault memories after completing the work. | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
OIL SENSOR
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA18.40-P-1001-02B | Bolt, oil level check switch to oil pan | Nm | 14 | 14 |
