Remove/install oil dipstick guide tube - AR18.40-P-3510EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 212
| Remove/install | |||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| 1 | Switch off ignition | ||
| 2 | Open engine hood and raise to vertical position | AR88.40-P-1000EW | |
| 3 | Remove air filter housing | AR09.10-P-1150EWS | |

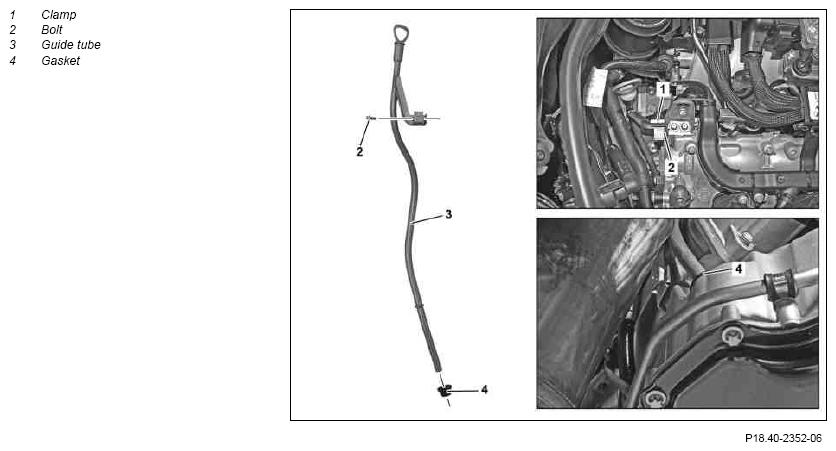

| 4 | Ply off clamp (1) and remove bolt (2) | *BA01.45-P-1006-01M | |
| 5 | Drain engine oil | ||
| Engine oil and filter change | AP18.00-P-0101EW | ||
| 6 | Pull out guide tube (3) upwards | ||
| 7 | Pull oil dipstick out of guide tube (3) | When replacing the guide tube (3) | |
| 8 | Replace seal (4) in oil pan | ||
| 9 | Install in the reverse order | ||
| Checking | |||
| 10 | Check engine oil level; correct if necessary | ||
| Engine oil and filter change | AP18.00-P-0101EW | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Conduct engine test run and check engine for leaks |
OIL PAN
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA01.45-P-1006-01M | Mounting bolt for oil dipstick guide tube | Nm | 9 | 9 |
