Check oil pressure - AR18.00-P-1250SX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273

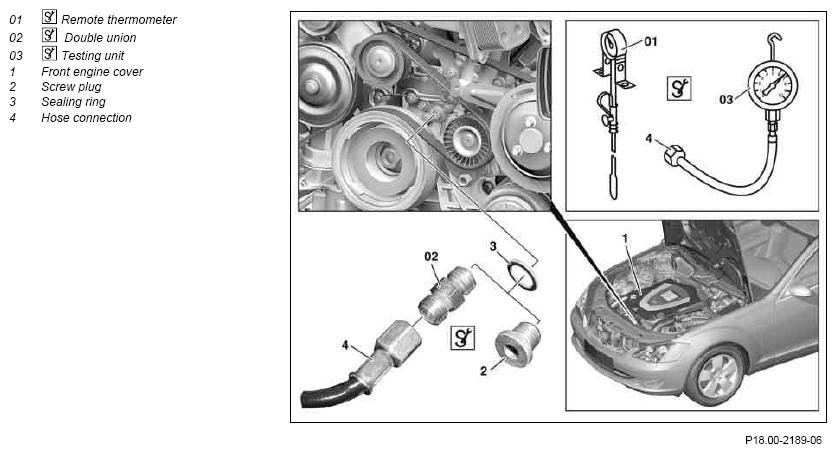

Fig 1: Checking Oil Pressure

Courtesy of MERCEDES-BENZ USA

	Checking
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
1	Run engine until warm
2	Check engine oil temperature with remote thermometer (01)	Lead temperature sensor of remote thermometer (01) through oil dipstick guide tube into engine oil. The engine oil temperature must be at least 100 °C.
2	Check engine oil temperature with remote thermometer (01)		Figure
3	Check engine oil level about 5 minutes after switching off the warm engine, if necessary adjust to correct level	The vehicle must be parked on a level surface, otherwise false measurements can occur.
	Remove/install
4	Remove front engine cover (1)	Pull upwards out of the mounts.
5	Remove screw plug (2) from timing case cover	Replace sealing ring (3).
		Engine 272	*BA01.40-P-1010-01G
		Engine 273	*BA01.40-P-1005-01T
6	Screw double connectors (02) with sealing ring (3) into the hole in the timing case cover		Figure
7	Connect hose connection (4) of testing unit (03) to double union (02)		Figure
	Measure
8	Start the engine and measure oil pressure	Position testing unit (03) so that it is not caught in the poly-V-belt when the engine is started, otherwise the testing unit (03) and the poly-V-belt may be damaged. Measure the oil pressure at the engine operating pressure.
8	Start the engine and measure oil pressure	When throttle is opened, the oil pressure must rise without any delay.	*BE18.00-P-1001-01B
9	Install in the reverse order
10	Carry out an engine test run and check engine for leaks

OIL PRESSURE TEST SPECIFICATIONS

Number	Designation			Engine 272 except 272.973/974	Engine 272.973/974	Engine 273
BE18.00-P-1001-01B	Oil pressure at operating temperature	-	bar	≥0.7	≥0.7	≥0.7
		at	rpm	700	700	700
		-	bar	≥4.0	1.6 to 2.4	≥3.5
		at	rpm	3000	2000	3000
		-	bar	-	3.5 to 4.7	-
		at	rpm	-	3500	-

CRANKCASE, TIMING CASE COVER, END COVER

Number	Designation			Engine 273
BA01.40-P-1005-01T	Screw plug on timing case cover	M12X1.5	Nm	20
BA01.40-P-1005-01T	Screw plug on timing case cover	M6X23	Nm	14

CRANKCASE, TIMING CASE COVER, END COVER

Number	Designation		Engine 272
BA01.40-P-1010-01G	Screw plug on timing case cover	Nm	20

Fig 2: Identifying Tester (103 589 00 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Remote Thermometer (124 589 07 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Double Union (166 589 00 63 00)

Courtesy of MERCEDES-BENZ USA
