Remove/install underbody paneling - AR61.30-P-1001EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218

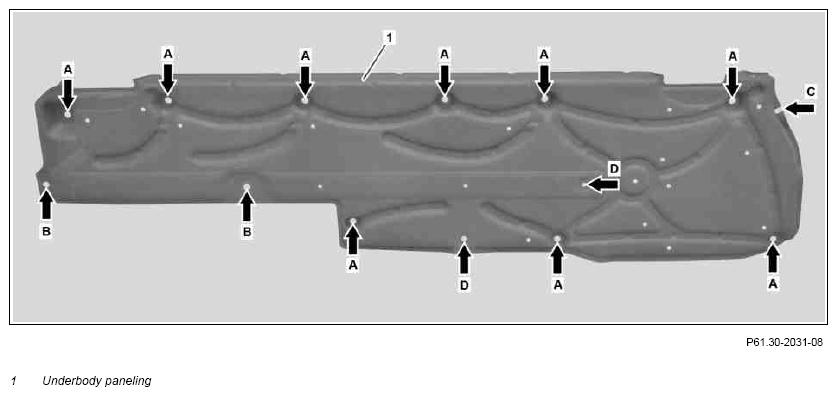

Shown on left underfloor paneling (1)
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | Fig 2 | |
| 2 | Unscrew nuts (arrows A) | ||
Rechargeable drill/screwdriver |
*BA61.30-P-1001-02A | ||
| 3 | Unscrew bolts (arrows B and arrow C) | Rechargeable drill/screwdriver |
|
| 4 | Detach rear bottom section of soundproofing and engine compartment paneling until underfloor paneling (1) can be removed. | ||
| 5 | Remove expansion clips (arrows D) and remove underfloor paneling (1) | Fig 3 | |
| 6 | Install in the reverse order |
UNDERFLOOR PANELING
| Number | Designation | Model 212, 218 | |
|---|---|---|---|
| BA61.30-P-1001-02A | Nut, underfloor paneling to vehicle floor | Nm | 2.5 |
