Performing function test of light signals at trailer coupling socket - AN31.19-P-8100-06CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117, 156.9, 176.0## 1#, 204.0##/2##/3##/9## 1#, 207.3##/4## 1#, 212.0##/2## 1#, 218.9## 1#, 222.0/1, 242.8## 1#, 246.2## 1#

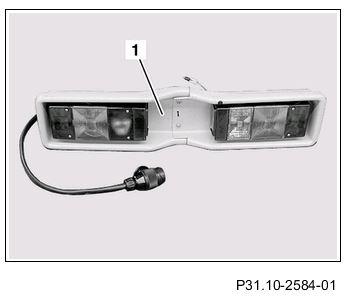

Fig 1: Light Strip

Courtesy of MERCEDES-BENZ USA

Connect light strip (1) or similar test equipment to trailer socket.
Switch on left turn signal indicator, right turn signal indicator and hazard warning system one after the other and check for proper operation.
Simulate failure of the left or right direction indicator lamp.
The flashing frequency of the indicator lamp in the instrument cluster must double.
Switch on standing lights and check for proper operation.
Switch on backup lamps and check for proper operation.
Press brake pedal and check brake lamp for proper operation.
Switch on rear fog lamp and check for proper operation.
The rear fog lamp on the vehicle must not light up.
Simulate failure of rear fog lamp on trailer.
The rear fog lamp on the vehicle must light up.
Check the constant voltage connection (terminal 30) at the trailer socket.
- 10.1) MODEL 117, 156.9, 176.0## 1#, 204.0##/2##/3## 1#, 207.3##/4## 1#, 212.0##/2## 1#, 218.9## 1#, 222.0/1, 242.8## 1#, 246.2## 1#
  Check whether ball neck folds in and out properly.

  See the vehicle operator's manual for the exact operation steps.
- 10.2) MODEL 204.9## 1#
  Check whether ball neck can be installed/removed properly.

  See the vehicle operator's manual for the exact operation steps.
