Wiring diagram for telematics services communications module control unit - PE82.85-P-2105-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

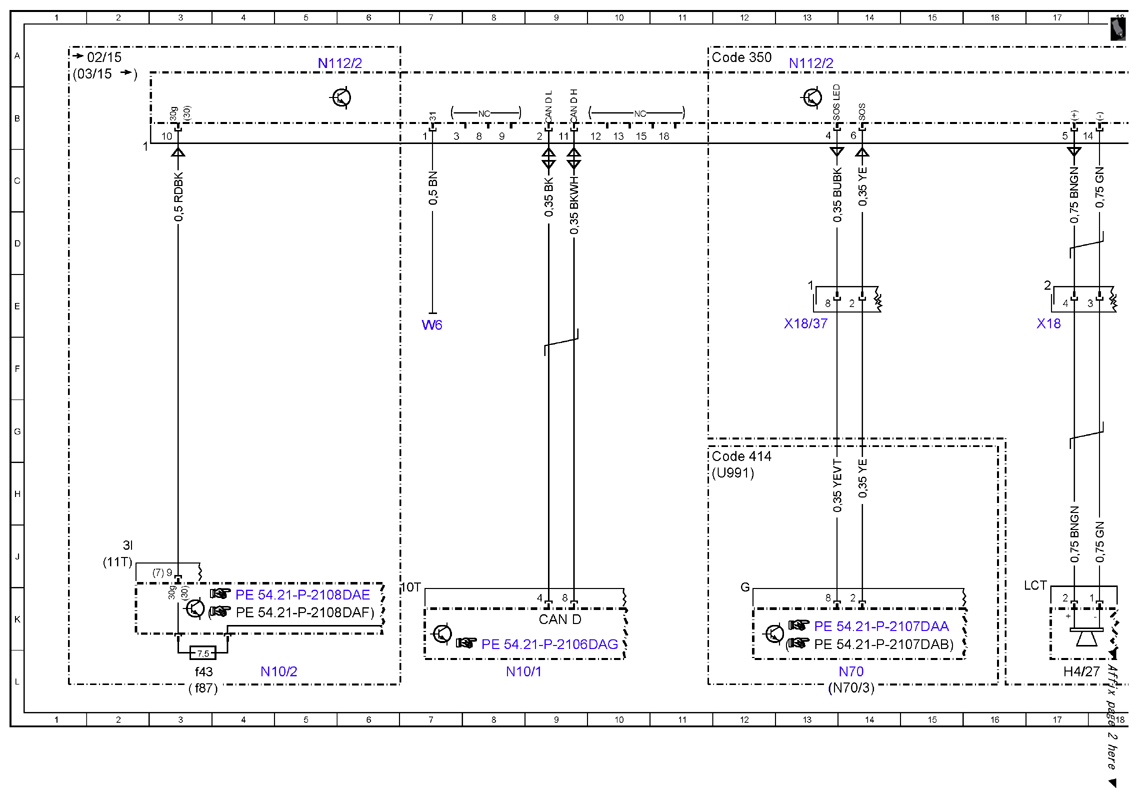

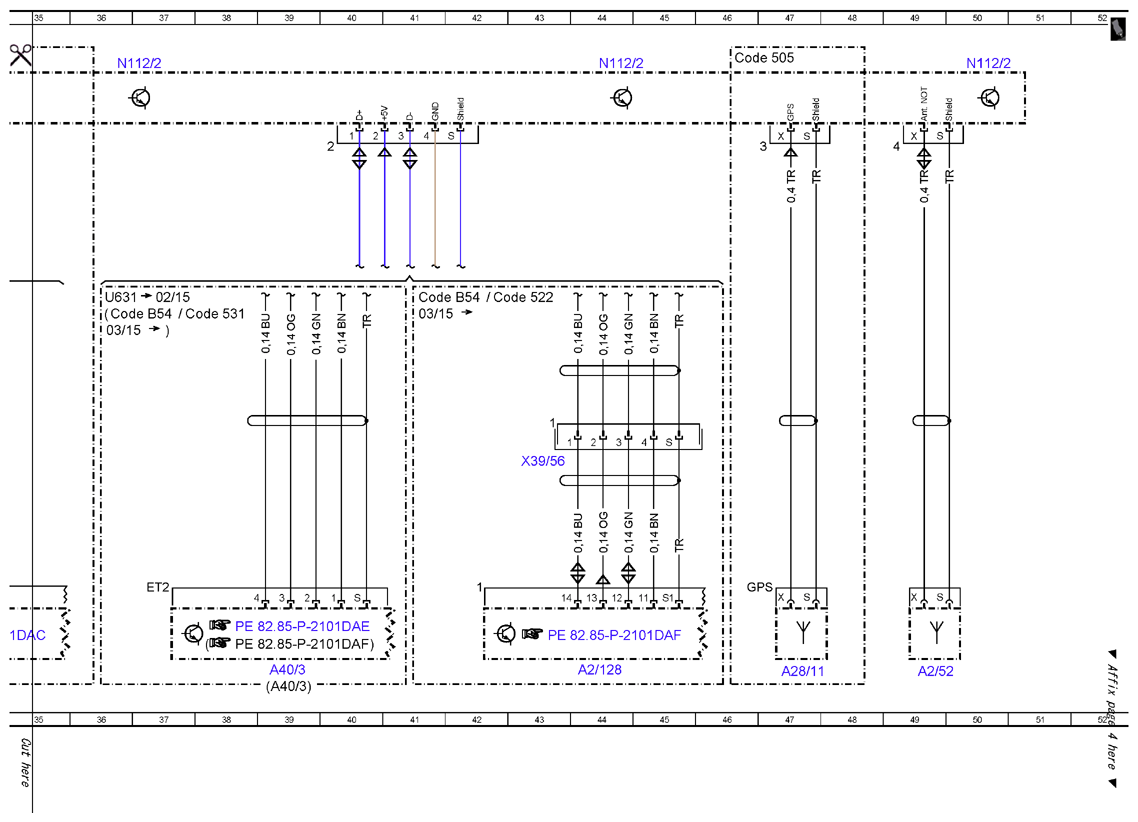

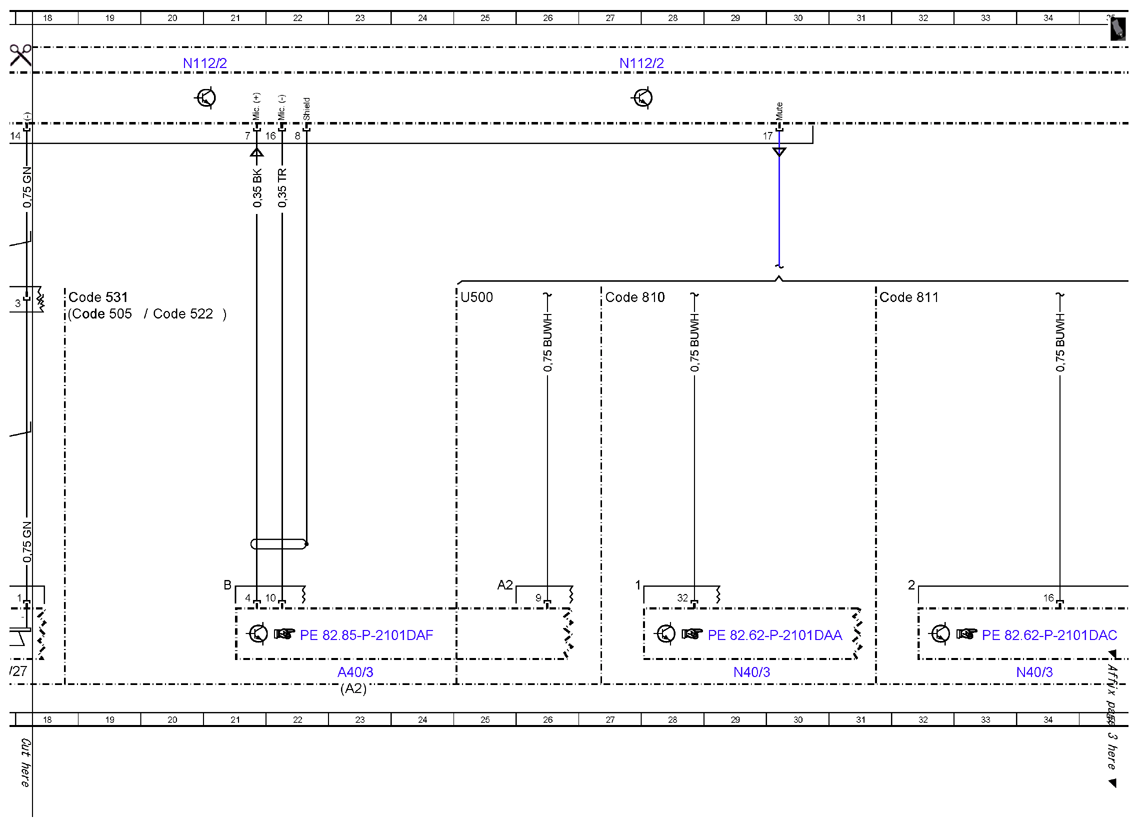

MODEL 212 with CODE B54 (Live Traffic Information) Control unit N112/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 56L |
| A2 | Radio | 23L |
| A2/128 | USB splitter | 44L |
| A2/52 | Emergency call system antenna | 49L |
| A28/11 | Multifunction antenna | 47L |
| A40/3 | COMAND control unit | 39L |
| A40/3 | COMAND control unit | 23L |
| A40/3 | COMAND control unit | 39L |
| CAN D | Diagnostic CAN | 9K |
| Code 350 | Ecall Europe emergency call system | 11A |
| Code 414 | Electric glass tilting/sliding roof | 11G |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 46A |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 18E |
| Code 522 | Audio 20 radio | 20E |
| Code 522 | Audio 20 radio | 42E |
| Code 531 | COMAND APS | 18E |
| Code 531 | COMAND APS | 37E |
| Code 810 | Sound system | 27E |
| Code 811 | Extended sound system | 31E |
| Code B54 | Communications module | 36E |
| Code B54 | Communications module | 41E |
| H4/27 | Center instrument panel speaker | 17L |
| N10/1 | Front SAM control unit with fuse and relay module | 8L |
| N10/2 | Rear SAM control unit with fuse and relay module | 4L |
| N10/2f43 | Fuse 43 | 3L |
| N10/2f87 | Fuse 87 | 3L |
| N112/2 | Telematics services communication module | 5A |
| N112/2 | Telematics services communication module | 13A |
| N112/2 | Telematics services communication module | 20A |
| N112/2 | Telematics services communication module | 27A |
| N112/2 | Telematics services communication module | 36A |
| N112/2 | Telematics services communication module | 50A |
| N112/2 | Telematics services communication module | 44A |
| N40/3 | Sound system amplifier control unit | 29L |
| N40/3 | Sound system amplifier control unit | 34L |
| N70 | Overhead control panel control unit | 14L |
| N70/3 | Overhead control panel electronics | 14L |
| U500 | Not valid for sound system | 25E |
| U631 | Valid for COMAND | 36E |
| U991 | Valid for all except tilting/sliding roof | 11H |
| W6 | Left rear wheel well ground point | 7E |
| X18 | Vehicle interior and harness for taillamp electrical connector | 17E |
| X18/37 | Emergency call system button electrical connector | 13E |
