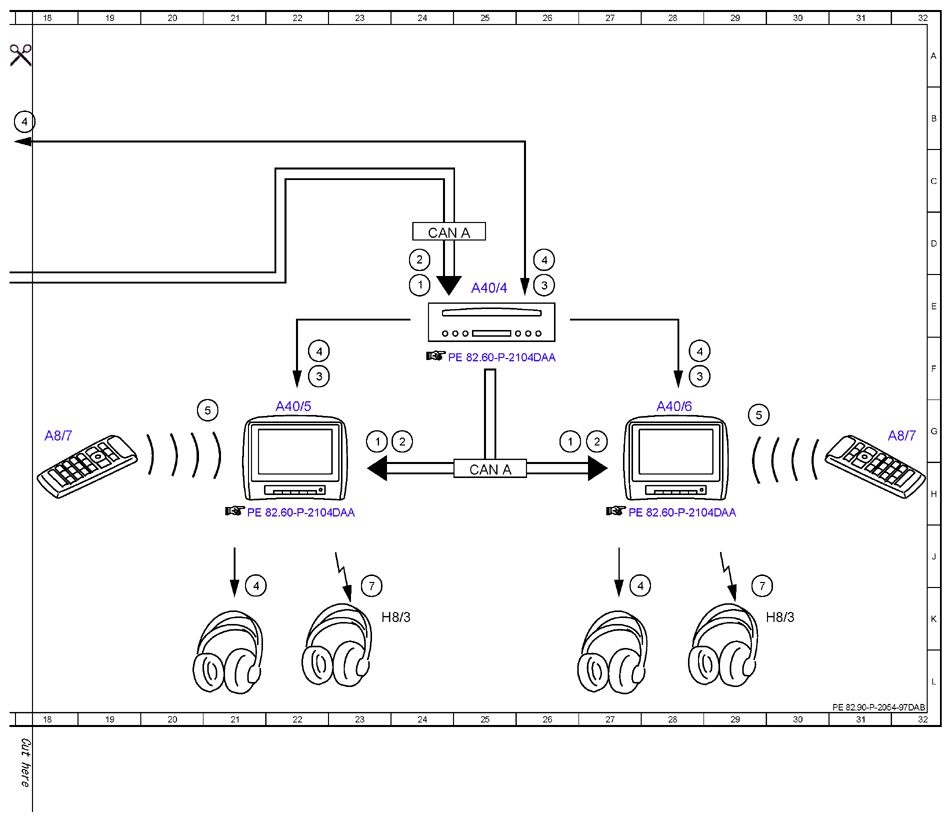

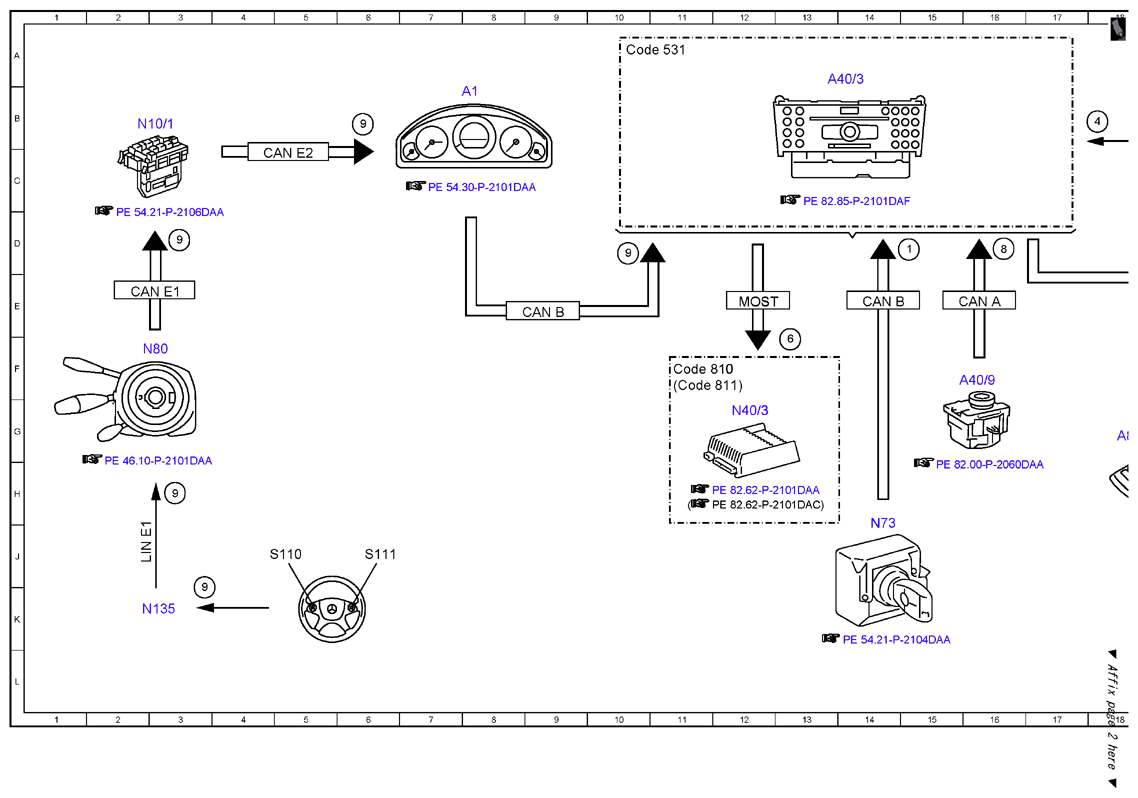

Electrical function schematic for rear entertainment system - PE82.90-P-2054-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of 3/2/15 as of model year 2016 with CODE 864 (Rear entertainment system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 23G |
| 1 | Circuit 15, status | 26G |
| 1 | Circuit 15, status | 24E |
| 1 | Circuit 15, status | 15D |
| 2 | Telematics CAN active, signal | 24G |
| 2 | Telematics CAN active, signal | 27G |
| 2 | Telematics CAN active, signal | 24D |
| 3 | Analog picture signal, signal | 22F |
| 3 | Analog picture signal, signal | 28F |
| 3 | Analog picture signal, signal | 26E |
| 4 | Analog audio signal, signal | 22F |
| 4 | Analog audio signal, signal | 28F |
| 4 | Analog audio signal, signal | 18B |
| 4 | Analog audio signal, signal | 21K |
| 4 | Analog audio signal, signal | 27K |
| 4 | Analog audio signal, signal | 26D |
| 5 | Infrared, signal | 21G |
| 5 | Infrared, signal | 29G |
| 6 | Sound system amplifier, actuation | 13F |
| 7 | Radio frequency, signal | 23K |
| 7 | Radio frequency, signal | 29K |
| 8 | Audio/COMAND controller, request | 16D |
| 9 | Multifunction steering wheel button group, signal | 3H |
| 9 | Multifunction steering wheel button group, signal | 3K |
| 9 | Multifunction steering wheel button group, signal | 3D |
| 9 | Multifunction steering wheel button group, signal | 6B |
| 9 | Multifunction steering wheel button group, signal | 10D |
| A1 | Instrument cluster | 7B |
| A40/3 | COMAND control unit | 13A |
| A40/4 | DVD player | 25E |
| A40/5 | Left rear display | 22G |
| A40/6 | Right rear display | 28G |
| A40/9 | Audio/COMAND control panel | 15F |
| A8/7 | Remote control | 18G |
| A8/7 | Remote control | 32G |
| CAN A | Telematics CAN | 16E |
| CAN A | Telematics CAN | 25H |
| CAN A | Telematics CAN | 24D |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 14E |
| CAN E1 | Chassis CAN 1 | 2E |
| CAN E2 | Chassis CAN 2 | 5C |
| Code 531 | COMAND APS | 10A |
| Code 810 | Sound system | 11F |
| Code 811 | Extended sound system | 11F |
| H8/3 | Radio frequency headphones | 23K |
| H8/3 | Radio frequency headphones | 30K |
| LIN E1 | Steering LIN | 2J |
| MOST | Media Oriented System Transport | 12E |
| N10/1 | Front SAM control unit with fuse and relay module | 2B |
| N135 | Steering wheel electronics | 2K |
| N40/3 | Sound system amplifier control unit | 12G |
| N73 | Electronic ignition switch control unit | 14J |
| N80 | Steering column module control unit | 2F |
| S110 | Left multifunction steering wheel button group | 4J |
| S111 | Right multifunction steering wheel button group | 6J |
