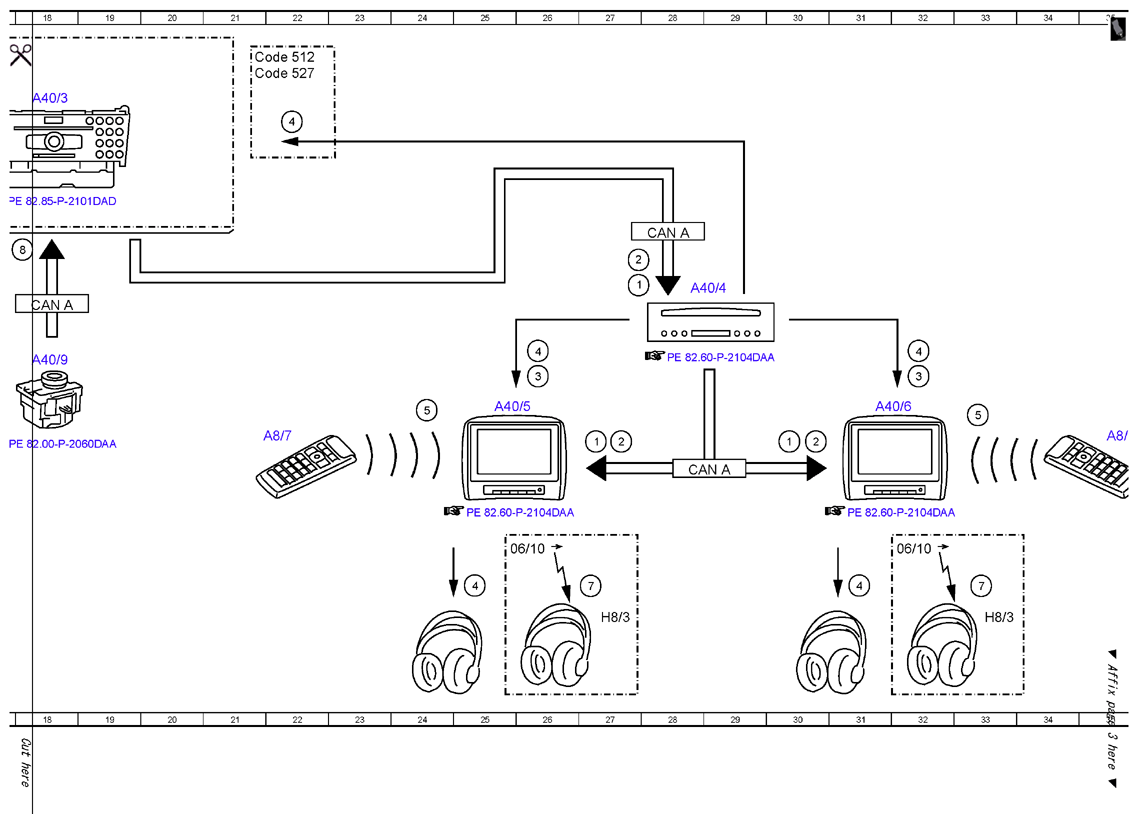

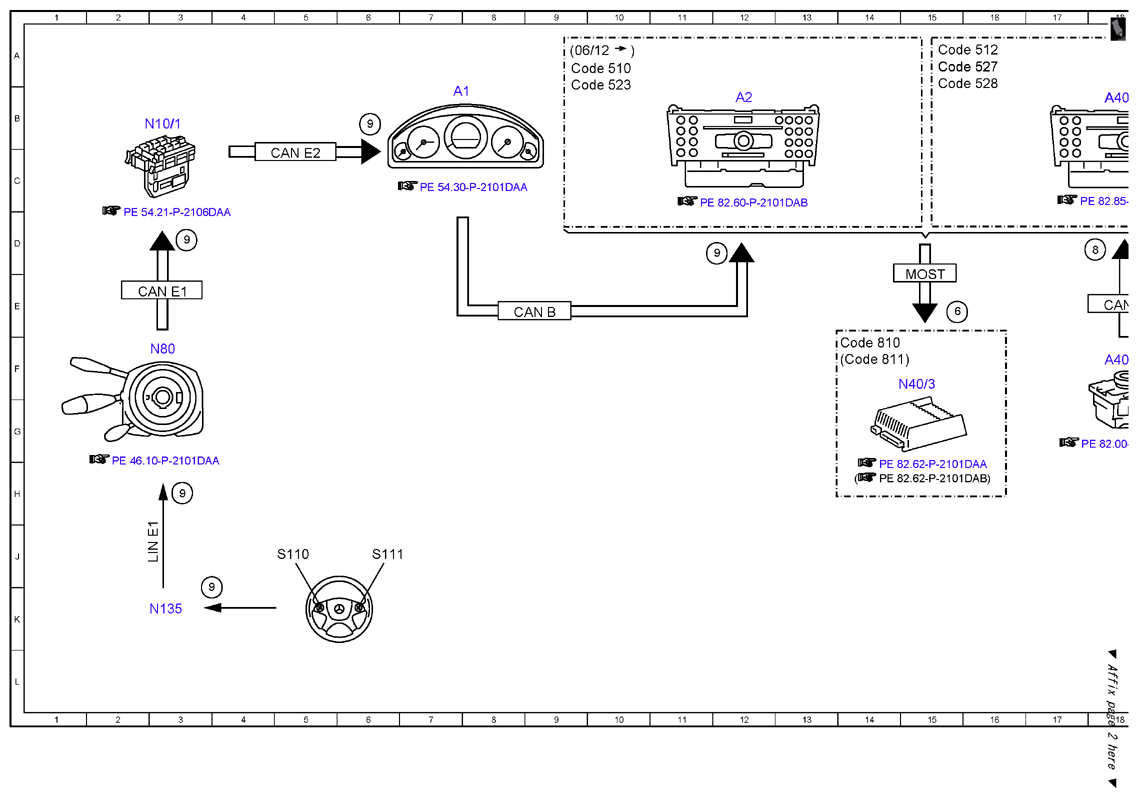

Electrical function schematic for rear entertainment disk applications - PE82.90-P-2051-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 864 (Rear entertainment system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 27G |
| 1 | Circuit 15, status | 30G |
| 1 | Circuit 15, status | 27E |
| 2 | Telematics CAN active, signal | 27G |
| 2 | Telematics CAN active, signal | 30G |
| 2 | Telematics CAN active, signal | 27D |
| 3 | Analog picture signal, signal | 26F |
| 3 | Analog picture signal, signal | 32F |
| 4 | Analog audio signal, signal | 26F |
| 4 | Analog audio signal, signal | 32F |
| 4 | Analog audio signal, signal | 22B |
| 4 | Analog audio signal, signal | 25K |
| 4 | Analog audio signal, signal | 31K |
| 5 | Infrared, signal | 24G |
| 5 | Infrared, signal | 33G |
| 6 | Sound system amplifier, actuation | 15E |
| 7 | Radio frequency, signal | 27K |
| 7 | Radio frequency, signal | 33K |
| 8 | Audio/COMAND controller, request | 18D |
| 9 | Multifunction steering wheel button group, signal | 3H |
| 9 | Multifunction steering wheel button group, signal | 3K |
| 9 | Multifunction steering wheel button group, signal | 3D |
| 9 | Multifunction steering wheel button group, signal | 6B |
| 9 | Multifunction steering wheel button group, signal | 12D |
| A1 | Instrument cluster | 7B |
| A2 | Radio | 12B |
| A40/3 | COMAND control unit | 18B |
| A40/4 | DVD player | 28E |
| A40/5 | Left rear display | 25G |
| A40/6 | Right rear display | 31G |
| A40/9 | Audio/COMAND control panel | 18F |
| A8/7 | Remote control | 22G |
| A8/7 | Remote control | 35G |
| CAN A | Telematics CAN | 18E |
| CAN A | Telematics CAN | 28H |
| CAN A | Telematics CAN | 28D |
| CAN B | Interior CAN | 9E |
| CAN E1 | Chassis CAN 1 | 3E |
| CAN E2 | Chassis CAN 2 | 5C |
| Code 510 | Audio 20 with CD changer | 9A |
| Code 512 | COMAND APS with DVD changer | 21A |
| Code 512 | COMAND APS with DVD changer | 15A |
| Code 523 | Audio 20 radio | 9B |
| Code 527 | COMAND APS (with navigation) | 21A |
| Code 527 | COMAND APS (with navigation) | 15A |
| Code 528 | COMAND with DVD changer | 15B |
| Code 810 | Sound system | 14F |
| Code 811 | Extended sound system | 14F |
| H8/3 | Radio frequency headphones | 27K |
| H8/3 | Radio frequency headphones | 33K |
| LIN E1 | Steering LIN | 2J |
| MOST | Media Oriented System Transport | 15E |
| N10/1 | Front SAM control unit with fuse and relay module | 3B |
| N135 | Steering wheel electronics | 3K |
| N40/3 | Sound system amplifier control unit | 15F |
| N80 | Steering column module control unit | 3F |
| S110 | Left multifunction steering wheel button group | 5J |
| S111 | Right multifunction steering wheel button group | 6J |
