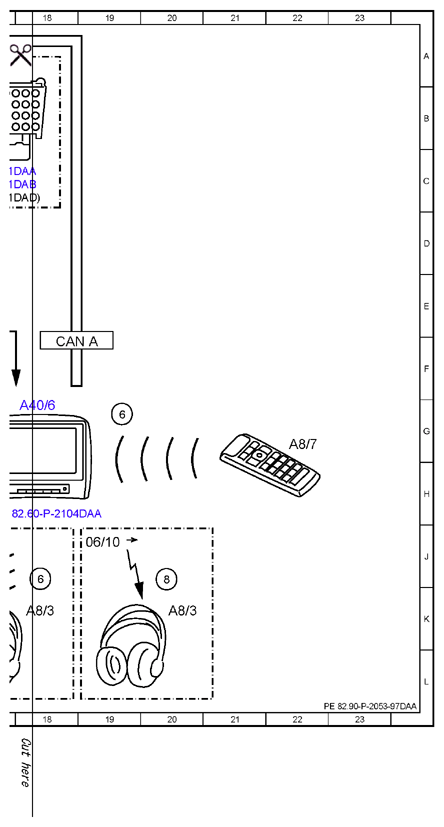

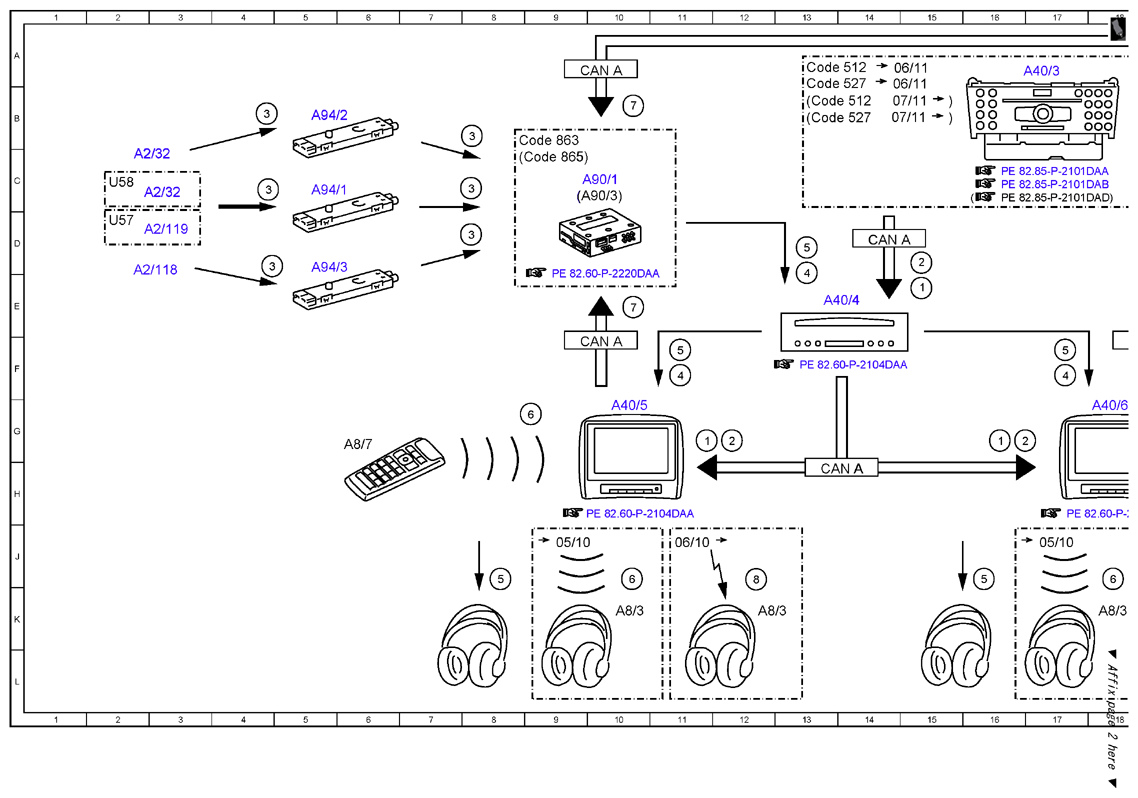

Electrical function schematic for rear entertainment TV reception - PE82.90-P-2053-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 up to 3/1/15 up to model year 2016 with CODE 864 (Rear entertainment system) with CODE 865 (TV tuner)
MODEL 212 up to 5/31/12 up to model year 2013 with CODE 863 (Digital/analog TV tuner) with CODE 864 (Rear entertainment system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 15E |
| 1 | Circuit 15, status | 11G |
| 1 | Circuit 15, status | 16G |
| 2 | Telematics CAN active, signal | 15D |
| 2 | Telematics CAN active, signal | 12G |
| 2 | Telematics CAN active, signal | 16G |
| 3 | TV, signal | 8C |
| 3 | TV, signal | 8D |
| 3 | TV, signal | 8B |
| 3 | TV, signal | 4B |
| 3 | TV, signal | 4C |
| 3 | TV, signal | 4D |
| 4 | Analog picture signal, signal | 11F |
| 4 | Analog picture signal, signal | 13E |
| 4 | Analog picture signal, signal | 17F |
| 5 | Analog audio signal, signal | 11F |
| 5 | Analog audio signal, signal | 13D |
| 5 | Analog audio signal, signal | 17F |
| 5 | Analog audio signal, signal | 16J |
| 5 | Analog audio signal, signal | 8J |
| 6 | Infrared, signal | 9G |
| 6 | Infrared, signal | 19G |
| 6 | Infrared, signal | 18J |
| 6 | Infrared, signal | 10J |
| 7 | TV channel selection, signal | 10E |
| 7 | TV channel selection, signal | 10B |
| 8 | Radio frequency, signal | 20J |
| 8 | Radio frequency, signal | 12J |
| A2/118 | Windshield antenna | 2D |
| A2/119 | Left rear side window antenna | 2D |
| A2/32 | Rear window antenna | 2C |
| A2/32 | Rear window antenna | 2C |
| A40/3 | COMAND control unit | 17A |
| A40/4 | DVD player | 13E |
| A40/5 | Left rear display | 10G |
| A40/6 | Right rear display | 18G |
| A90/1 | TV tuner (analog/digital) | 10C |
| A90/3 | TV digital tuner | 10C |
| A94/1 | TV 1 antenna amplifier | 5C |
| A94/2 | TV 2 antenna amplifier | 5B |
| A94/3 | TV 3 antenna amplifier | 5D |
| CAN A | Telematics CAN | 13H |
| CAN A | Telematics CAN | 10F |
| CAN A | Telematics CAN | 14D |
| CAN A | Telematics CAN | 10A |
| CAN A | Telematics CAN | 18F |
| Code 512 | COMAND APS with DVD changer | 13A |
| Code 512 | COMAND APS with DVD changer | 13B |
| Code 527 | COMAND APS (with navigation) | 13B |
| Code 527 | COMAND APS (with navigation) | 13B |
| Code 863 | Digital/analog TV tuner | 8B |
| Code 865 | TV tuner (digital) | 8C |
| U57 | Valid for model 212.2 | 2D |
| U58 | Valid for model 212.0/1 | 2C |
