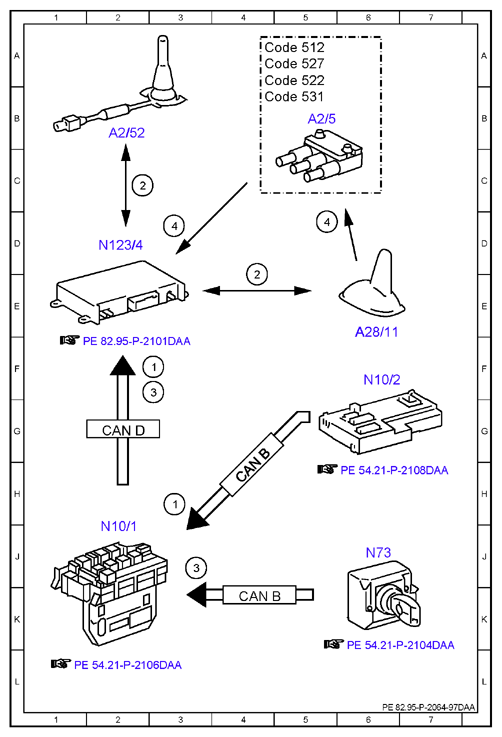

Electrical function diagram for vehicle location, function - PE82.95-P-2064-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 348 (Emergency call/assistant system)
MODEL 212 with CODE 359 (TELE AID emergency call system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | ATA [EDW] alarm, signal | 3F |
| 1 | ATA [EDW] alarm, signal | 3H |
| 2 | Telephone, signal | 2C |
| 2 | Telephone, signal | 4E |
| 3 | Circuit 15, status | 3F |
| 3 | Circuit 15, status | 3J |
| 4 | GPS, signal | 3D |
| 4 | GPS, signal | 5D |
| A2/5 | Global positioning system antenna splitter | 5B |
| A2/52 | Emergency call system antenna | 2B |
| A28/11 | Multifunction antenna | 6E |
| CAN B | Interior CAN | 4H |
| CAN B | Interior CAN | 4K |
| CAN D | Diagnostic CAN | 2G |
| Code 512 | COMAND APS with DVD changer | 4A |
| Code 522 | Audio 20 radio | 4A |
| Code 527 | COMAND APS (with navigation) | 4A |
| Code 531 | COMAND APS | 4B |
| N10/1 | Front SAM control unit with fuse and relay module | 2J |
| N10/2 | Rear SAM control unit with fuse and relay module | 6F |
| N123/4 | Emergency call system control unit | 2D |
| N73 | Electronic ignition switch control unit | 6J |
