Cockpit Management and Data System (COMAND) control unit wiring diagram - PE82.85-P-2101-97DAC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

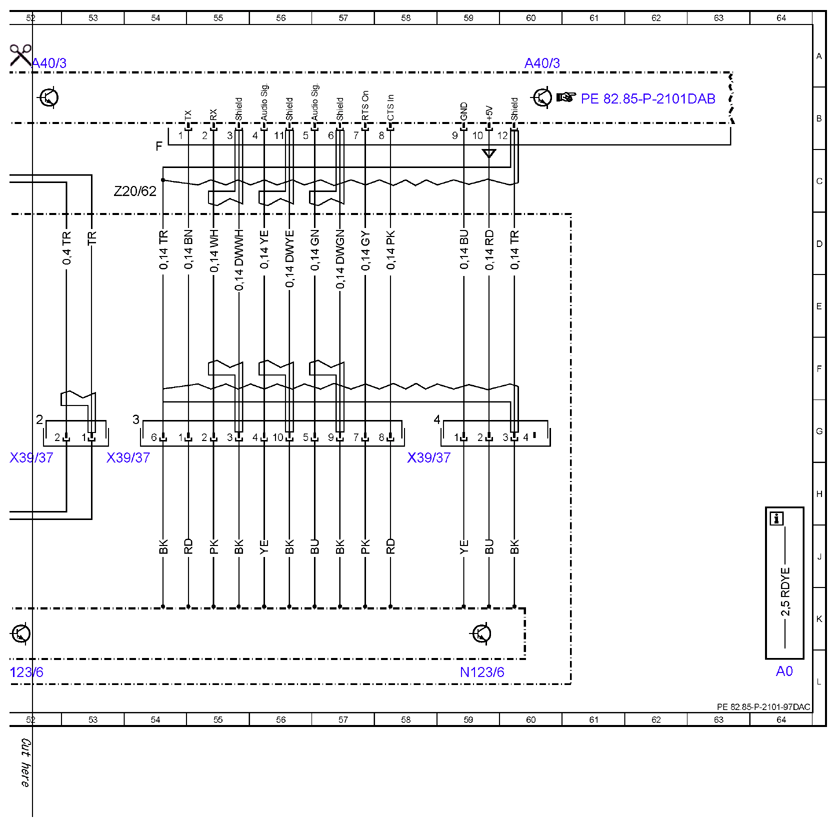

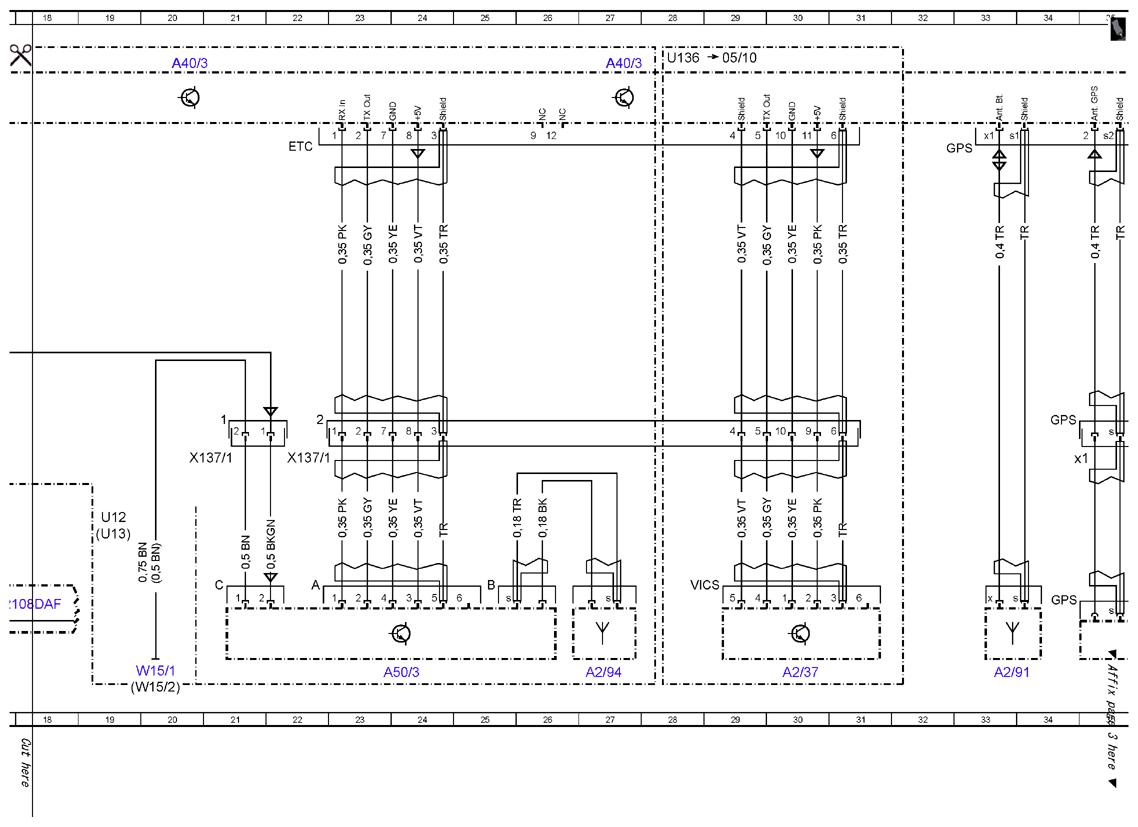

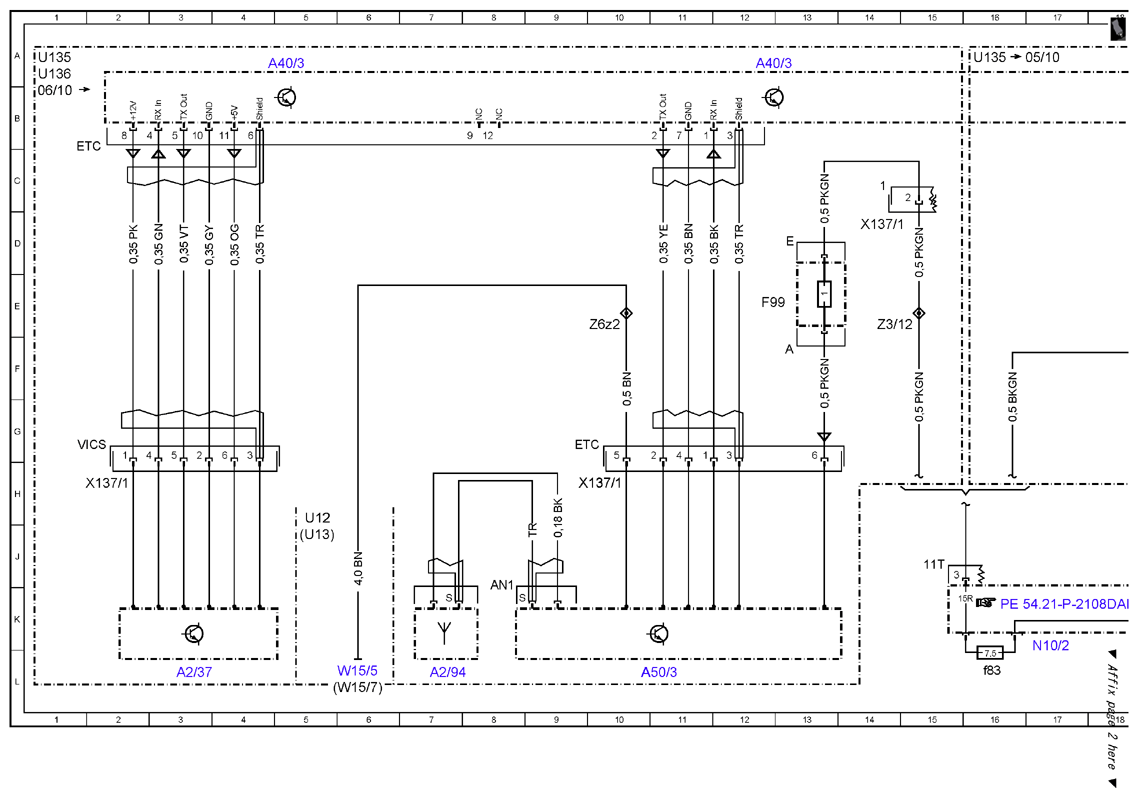

MODEL 212 up to 6/30/11 with CODE 498 (Japanese version) Control unit A40/3, sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| A2/37 | VICS control unit | 30L |
| A2/37 | VICS control unit | 3L |
| A2/91 | Bluetooth antenna | 33L |
| A2/94 | Electronic Toll Collection antenna | 27L |
| A2/94 | Electronic Toll Collection antenna | 7L |
| A28/11 | Multifunction antenna | 36L |
| A28/11x1 | Multifunction antenna electrical connector | 35G |
| A28/11x3 | Multifunction antenna electrical connector | 36G |
| A40/3 | COMAND control unit | 27A |
| A40/3 | COMAND control unit | 36A |
| A40/3 | COMAND control unit | 44A |
| A40/3 | COMAND control unit | 20A |
| A40/3 | COMAND control unit | 12A |
| A40/3 | COMAND control unit | 5A |
| A40/3 | COMAND control unit | 52A |
| A40/3 | COMAND control unit | 60A |
| A50/3 | Electronic Toll Collection control unit | 24L |
| A50/3 | Electronic Toll Collection control unit | 11L |
| F99 | Electronic Toll Collection circuit 15R electrical fuse | 12E |
| N10/2 | Rear SAM control unit with fuse and relay module | 17L |
| N10/2f83 | Fuse 83 | 16L |
| N123/6 | Communication control unit | 43L |
| N123/6 | Communication control unit | 52L |
| N123/6 | Communication control unit | 59L |
| U12 | Valid for left-hand drive vehicles | 19H |
| U12 | Valid for left-hand drive vehicles | 5H |
| U13 | Valid for right-hand drive vehicles | 19J |
| U13 | Valid for right-hand drive vehicles | 5J |
| U135 | Valid for Electronic Toll Collection | 16A |
| U135 | Valid for Electronic Toll Collection | 1A |
| U136 | Valid for Vehicle Information and Communication System (VICS) | 28A |
| U136 | Valid for Vehicle Information and Communication System (VICS) | 1A |
| W15/1 | Right footwell ground point | 20L |
| W15/2 | Left footwell ground point | 20L |
| W15/5 | Left front footwell ground point | 6L |
| W15/7 | Right front footwell ground point | 6L |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 21H |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 22H |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 2H |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 10H |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 14D |
| X39/37 | Mobile phone electrical connector | 54H |
| X39/37 | Mobile phone electrical connector | 52H |
| X39/37 | Mobile phone electrical connector | 58H |
| X39/46 | Adapter cable electrical connector, Japan | 38H |
| Z20/62 | Screening end connector sleeve | 54C |
| Z3/12 | Circuit 15R connector sleeve | 14E |
| Z6z2 | Circuit 31 connector sleeve | 10E |
