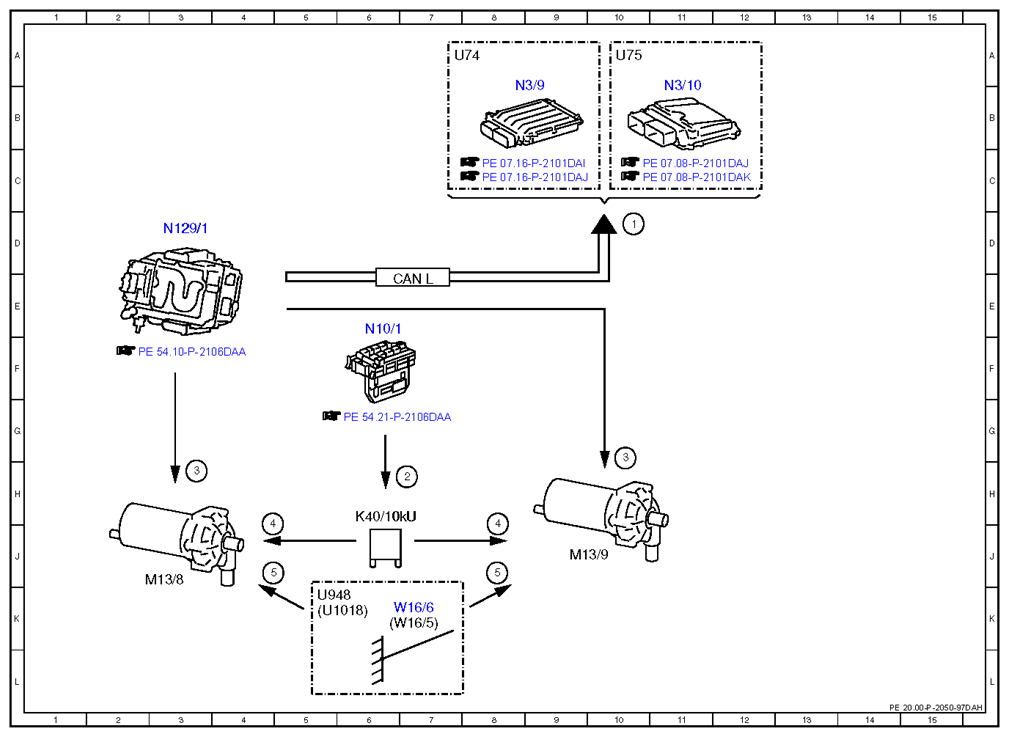

Electrical function schematic for power electronics and DC/DC converter cooling circuit - PE20.00-P-2050-97DAH
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 276.952 in MODEL 212.095
ENGINES 651.924 in MODEL 212.098 /298
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Fan motor, request | 10D |
| 2 | Circuit 87, status | 7H |
| 3 | Power electronics circulation pump, actuation | 3H |
| 3 | Power electronics circulation pump, actuation | 10G |
| 4 | Power supply, status ON | 4J |
| 4 | Power supply, status ON | 8J |
| 5 | Circuit 31, status | 4J |
| 5 | Circuit 31, status | 8J |
| CAN L | Hybrid CAN | 7E |
| K40/10kU | Engine circuit 87 relay | 6H |
| M13/8 | Power electronics circulation pump 1 | 3J |
| M13/9 | Power electronics circulation pump 2 | 9J |
| N10/1 | Front SAM control unit with fuse and relay module | 6E |
| N129/1 | Power electronics control unit | 3D |
| N3/10 | ME-SFI [ME] control unit | 11B |
| N3/9 | CDI control unit | 8B |
| U1018 | Valid for gasoline engine 276 | 5K |
| U74 | Valid for diesel engines | 7A |
| U75 | Valid for gasoline engines | 10A |
| U948 | Valid for diesel engine 651 | 5K |
| W16/5 | Left major assembly compartment electronics ground point | 7K |
| W16/6 | Right major assembly compartment ground point | 7K |
