Coolant pump tightening procedure - AR20.10-P-1280-01KH
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 152, 157, 276, 278
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | ENGINE 276 | |||
|---|---|---|---|---|---|
| BA20.10-P-1001-01AA | Bolt, coolant pump to timing case cover and crankcase | M6 | Stage 1 | Nm | 5 |
| Stage 2 | Nm | 10 | |||
| M8 | Stage 1 | Nm | 10 | ||
| Stage 2 | Nm | 20 | |||
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | ENGINE 152 | ENGINE 157 | |||
|---|---|---|---|---|---|---|
| BA20.10-P-1001-01W | Bolt, coolant pump to timing case cover/cylinder crankcase | M7 | Stage 1 | Nm | 5 | 2 |
| Stage 2 | Nm | 14 | 14 | |||
| M8 | Stage 1 | Nm | 10 | 20 | ||
| Stage 2 | Nm | 20 | - | |||
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | ENGINE 278 | |||
|---|---|---|---|---|---|
| BA20.10-P-1001-01W | Bolt, coolant pump to timing case cover/cylinder crankcase | M7 | Stage 1 | Nm | 5 |
| Stage 2 | Nm | 14 | |||
| M8 | Stage 1 | Nm | 10 | ||
| Stage 2 | Nm | 20 | |||

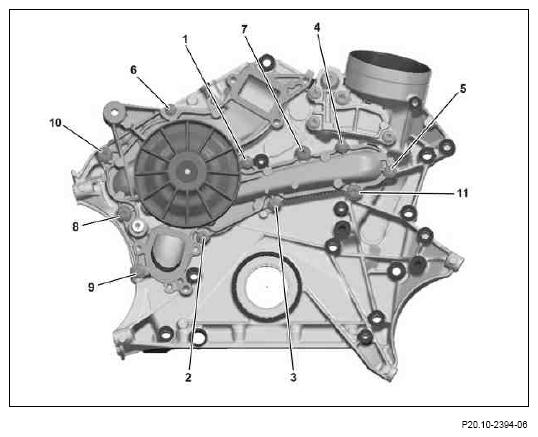

Shown on engine 276

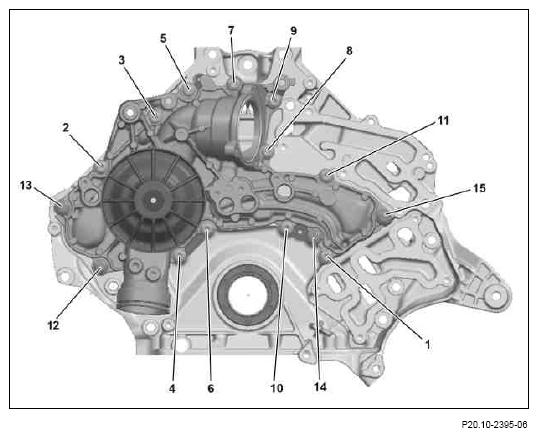

Shown on engine 152, 157, 278
The following sequence for the coolant pump must be observed to avoid consequential damage.
Use the reverse order of tightening to loosen the screw/bolts (1 to 9) of the coolant pump.
- 1.1 ENGINE 276
Tighten screw/bolts (1 to 11) according to Stage 1.
- 1.2 ENGINE 152, 157, 278
Tighten screw/bolts (1 to 15) according to Stage 1.
- 2.1 ENGINE 276
Tighten screw/bolts (1 to 11) according to Stage 2.
- 2.2 ENGINE 152, 157, 278
Tighten screw/bolts (1 to 15) according to Stage 2.
