Bolt plan for coolant pump - AR20.10-P-1271-03MMB

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 152, 157, 278

COOLANT PUMP, COOLANT THERMOSTAT

Number	Designation				Engine 152	Engine 157	Engine 278
BA20.10-P-1001-01W	Bolt, coolant pump to timing case cover and crankcase	M7	Stage 1	Nm	5	2	5
			Stage 2	Nm	14	14	14
		M8	Stage 1	Nm	10	20	10
			Stage 2	Nm	20	-	20

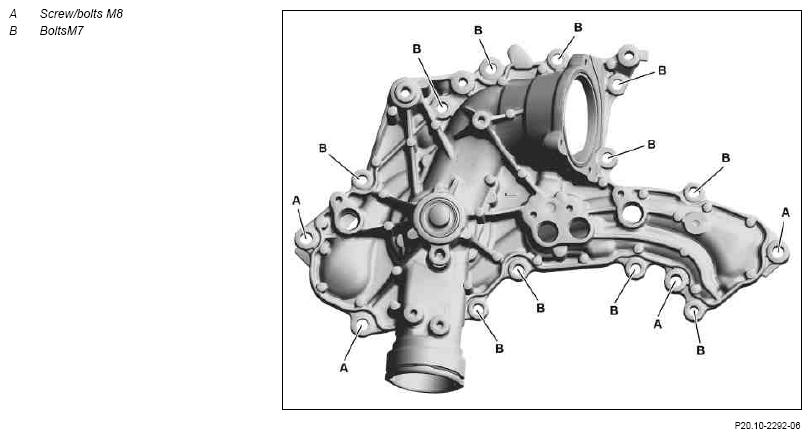

Fig 1: Coolant Pump Bolt Lengths

Courtesy of MERCEDES-BENZ USA
