Bolt plan for coolant pump - AR20.10-P-1271-03MMA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 276

COOLANT PUMP, COOLANT THERMOSTAT

Number	Designation				Engine 276
BA20.10-P-1001-01AA	Bolt, coolant pump to timing case cover and crankcase	M6	Stage 1	Nm	5
		M6	Stage 2	Nm	10
		M8	Stage 1	Nm	10
		M8	Stage 2	Nm	20

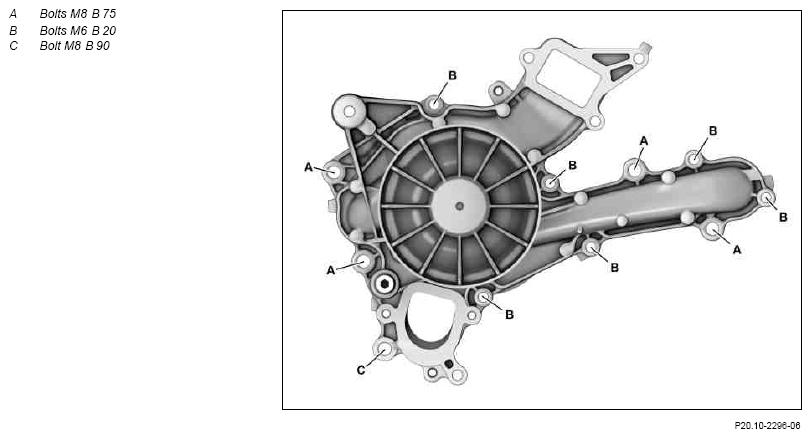

Fig 1: Coolant Pump Bolt Lengths

Courtesy of MERCEDES-BENZ USA
