Wiring diagram for airbag control unit - PE91.60-P-2105-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

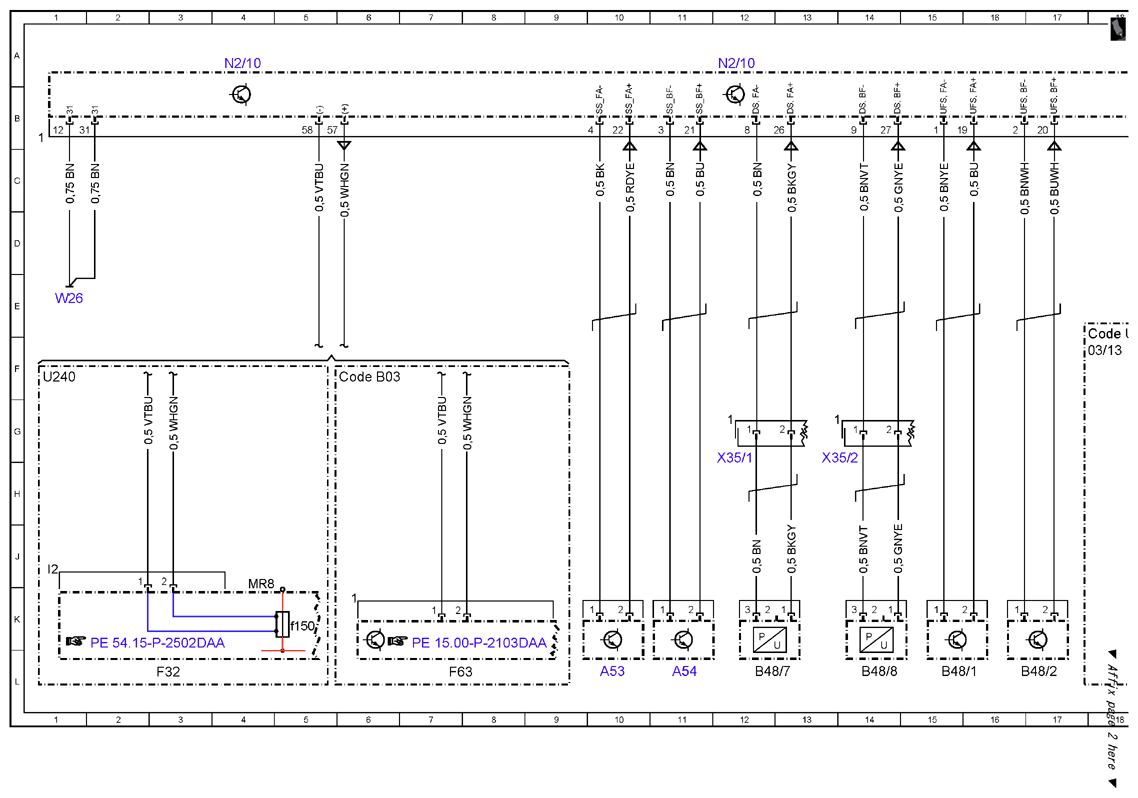

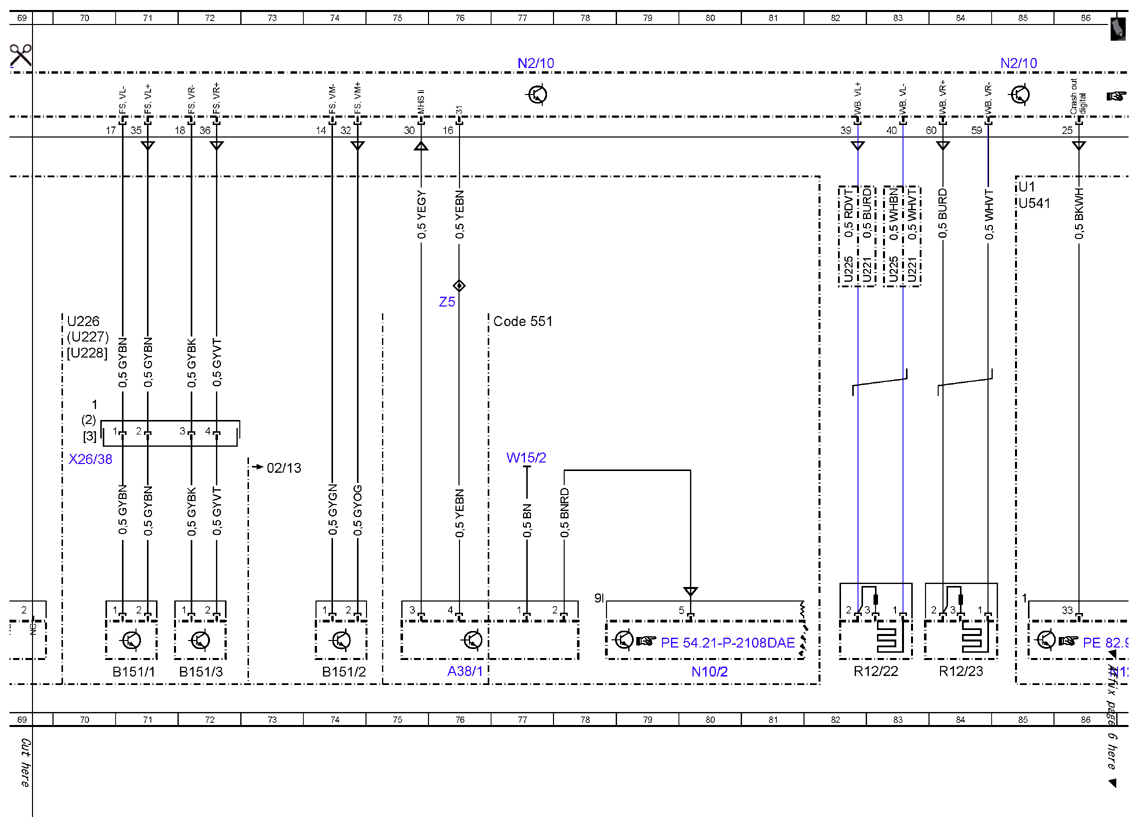

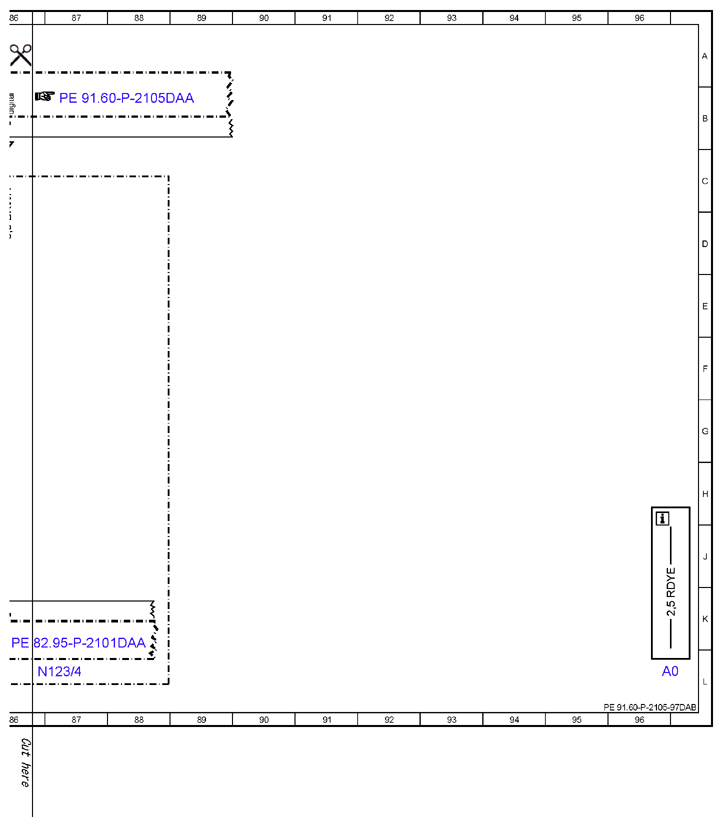

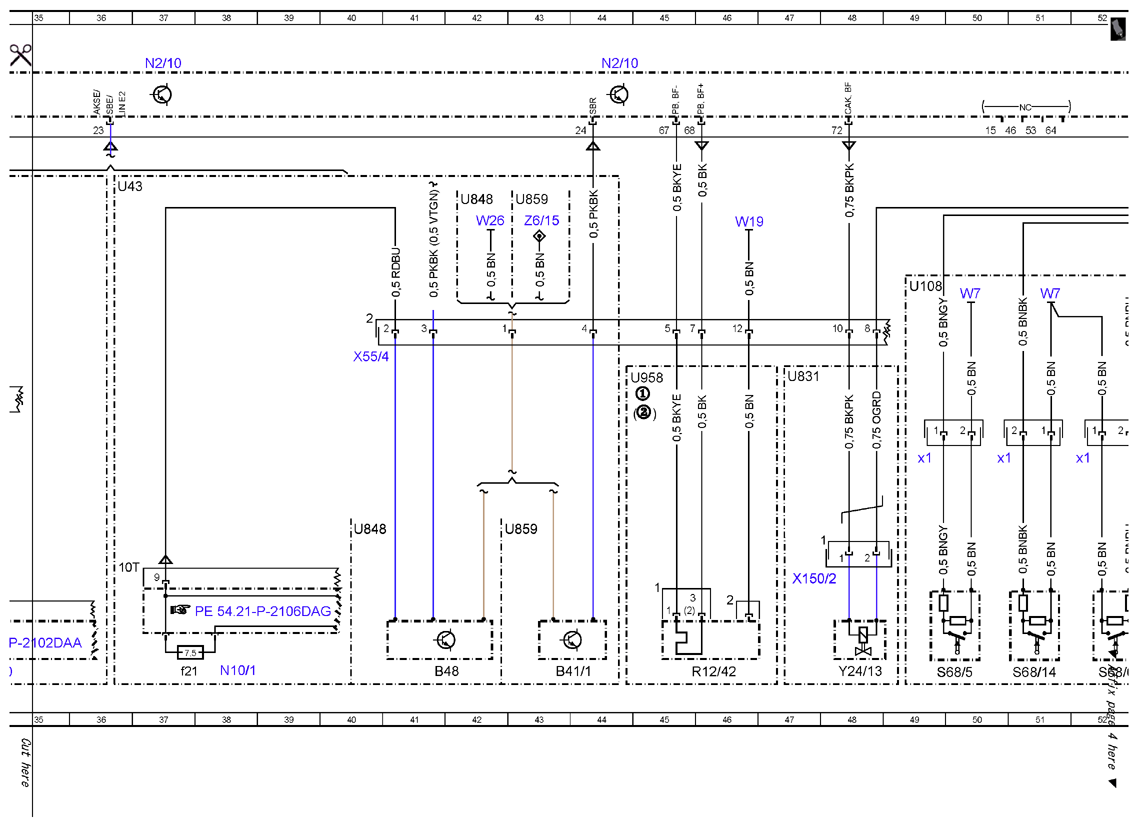

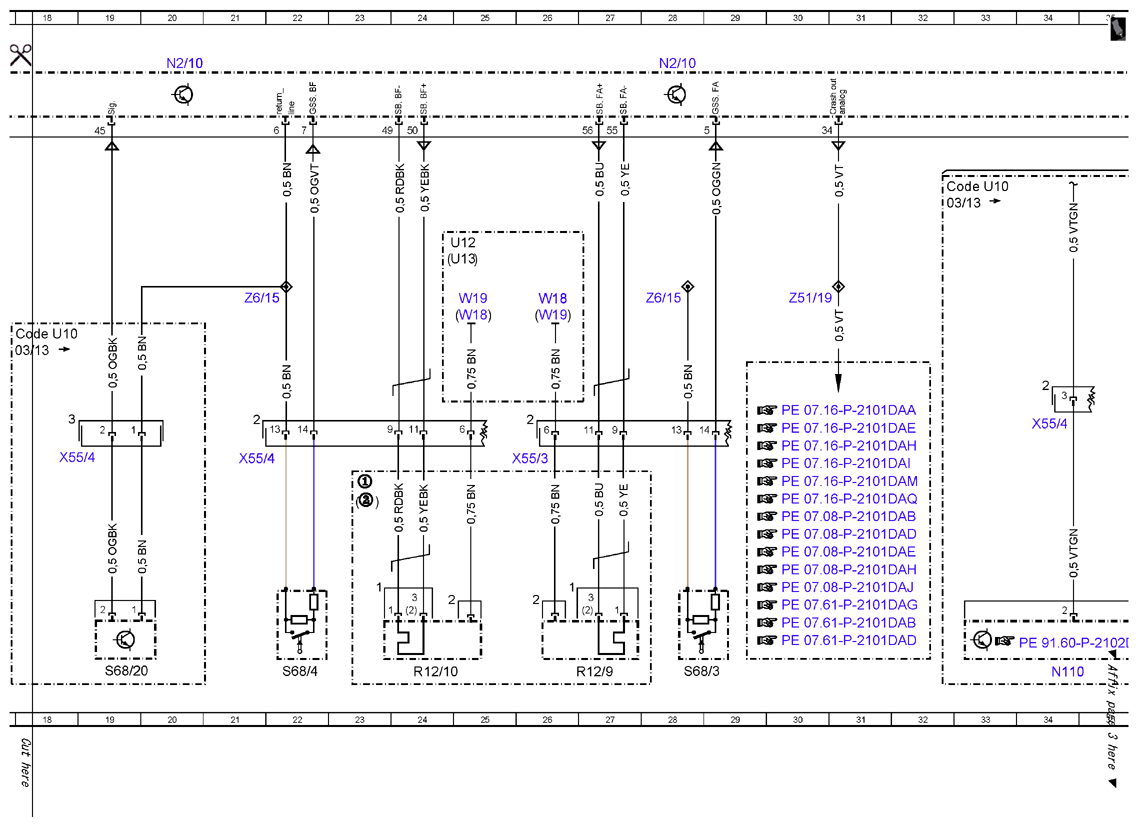

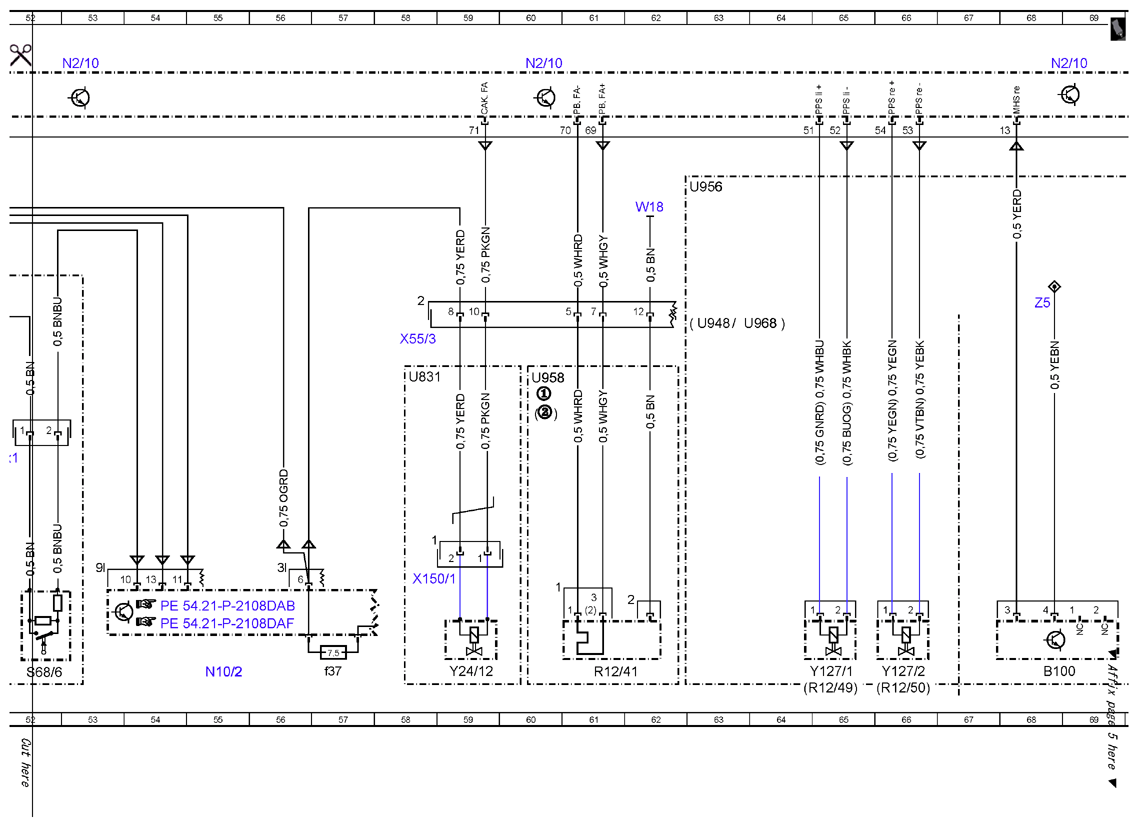

MODEL 212 Control unit N2/10, sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 96L |
| A38/1 | Pedestrian protection Hall sensor + engine hood ATA [EDW] switch | 76L |
| A53 | Left sidebag sensor | 10L |
| A54 | Right sidebag sensor | 11L |
| B100 | Pedestrian protection Hall sensor | 68L |
| B151/1 | Left front bumper pedestrian protection sensor | 71L |
| B151/2 | Center front bumper pedestrian protection sensor | 74L |
| B151/3 | Right front bumper pedestrian protection sensor | 72L |
| B41/1 | Front passenger seat occupied recognition | 43L |
| B48 | Front passenger seat occupied recognition and ACSR | 41L |
| B48/1 | Left frontal acceleration sensor | 15L |
| B48/2 | Right frontal acceleration sensor | 17L |
| B48/7 | Left front door pressure sensor | 12L |
| B48/8 | Right front door pressure sensor | 14L |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 77E |
| Code B03 | ECO start/stop function | 6F |
| Code U10 | Weight sensing system (WSS) | 17F |
| Code U10 | Weight sensing system (WSS) | 32C |
| F32 | Front electrical prefuse box | 3L |
| F32f150 | Pyrofuse 150 | 5K |
| F63 | Pyrofuse | 7L |
| N10/1 | Front SAM control unit with fuse and relay module | 38L |
| N10/1f21 | Fuse 21 | 37L |
| N10/2 | Rear SAM control unit with fuse and relay module | 55L |
| N10/2 | Rear SAM control unit with fuse and relay module | 80L |
| N10/2f37 | Fuse 37 | 57L |
| N110 | Weight Sensing System (WSS) control unit | 34L |
| N123/4 | Emergency call system control unit | 87L |
| N2/10 | Supplemental restraint system control unit | 4A |
| N2/10 | Supplemental restraint system control unit | 12A |
| N2/10 | Supplemental restraint system control unit | 53A |
| N2/10 | Supplemental restraint system control unit | 60A |
| N2/10 | Supplemental restraint system control unit | 68A |
| N2/10 | Supplemental restraint system control unit | 77A |
| N2/10 | Supplemental restraint system control unit | 20A |
| N2/10 | Supplemental restraint system control unit | 28A |
| N2/10 | Supplemental restraint system control unit | 37A |
| N2/10 | Supplemental restraint system control unit | 85A |
| N2/10 | Supplemental restraint system control unit | 44A |
| R12/10 | Front passenger sidebag squib | 24L |
| R12/22 | Left windowbag squib | 82L |
| R12/23 | Right windowbag squib | 84L |
| R12/41 | Driver pelvis airbag squib | 61L |
| R12/42 | Front passenger pelvis airbag squib | 46L |
| R12/49 | Left active engine hood squib | 65L |
| R12/50 | Right active engine hood squib | 66L |
| R12/9 | Driver sidebag squib | 27L |
| S68/14 | Center rear seat belt buckle switch | 51L |
| S68/14x1 | Center rear seat belt buckle switch electrical connector | 50H |
| S68/20 | Front passenger seat position detection switch | 19L |
| S68/3 | Driver seat belt buckle restraint system switch | 28L |
| S68/4 | Front passenger seat belt buckle restraint system switch | 22L |
| S68/5 | Left rear seat belt buckle switch | 50L |
| S68/5x1 | Left rear seat belt buckle switch electrical connector | 49H |
| S68/6 | Right rear seat belt buckle switch | 52L |
| S68/6x1 | Right rear seat belt buckle switch electrical connector | 52H |
| U1 | Valid for USA | 85C |
| U108 | Valid for rear seat belt buckles | 49E |
| U12 | Valid for left-hand drive vehicles | 24D |
| U13 | Valid for right-hand drive vehicles | 25D |
| U221 | Valid for China | 83E |
| U221 | Valid for China | 83E |
| U225 | Valid for all except China | 82E |
| U225 | Valid for all except China | 83E |
| U226 | Valid for pedestrian protection with active Park Assist | 70E |
| U227 | Valid for pedestrian protection with short range radar without active Park Assist | 70F |
| U228 | Valid for pedestrian protection without short range radar and active Park Assist | 70F |
| U240 | Valid for all except ECO start/stop function | 1F |
| U43 | Valid for ECE | 36C |
| U541 | Valid for TELEAID emergency call system | 85C |
| U831 | Valid for NECK-PRO head restraint | 47F |
| U831 | Valid for NECK-PRO head restraint | 58F |
| U848 | Valid for ACSR | 40J |
| U848 | Valid for ACSR | 42C |
| U859 | Valid for seat belt reminder warning | 42J |
| U859 | Valid for seat belt reminder warning | 43C |
| U948 | Valid for diesel engine 651 | 63E |
| U956 | Valid for pedestrian protection | 63C |
| U958 | Valid for pelvis airbag | 44F |
| U958 | Valid for pelvis airbag | 60F |
| U968 | Valid for mild hybrid drive | 63E |
| W15/2 | Left footwell ground point | 77H |
| W18 | Left front seat crossmember ground point | 26E |
| W18 | Left front seat crossmember ground point | 25E |
| W18 | Left front seat crossmember ground point | 62C |
| W19 | Right front seat crossmember ground point | 26E |
| W19 | Right front seat crossmember ground point | 25E |
| W19 | Right front seat crossmember ground point | 46D |
| W26 | Supplemental restraint system (SRS) control unit ground point | 1E |
| W26 | Supplemental restraint system (SRS) control unit ground point | 42D |
| W7 | Right rear wheel well ground point | 50E |
| W7 | Right rear wheel well ground point | 51E |
| X150/1 | Driver NECK-PRO head restraint electrical connector | 58J |
| X150/2 | Front passenger NECK-PRO head restraint electrical connector | 47J |
| X26/38 | Front bumper and frame wiring harness electrical connector | 70H |
| X35/1 | Left front door electrical connector | 12H |
| X35/2 | Right front door electrical connector | 14H |
| X55/3 | Driver seat connector block | 26H |
| X55/3 | Driver seat connector block | 58F |
| X55/4 | Front passenger seat connector block | 21H |
| X55/4 | Front passenger seat connector block | 40F |
| X55/4 | Front passenger seat connector block | 19G |
| X55/4 | Front passenger seat connector block | 34G |
| Y127/1 | Left rear engine hood lifter | 65L |
| Y127/2 | Right rear engine hood lifter | 66L |
| Y24/12 | Driver seat NECK-PRO head restraint solenoid | 59L |
| Y24/13 | Front passenger seat NECK-PRO head restraint solenoid | 48L |
| Z5 | Connector sleeve in wiring harness | 68E |
| Z5 | Connector sleeve in wiring harness | 76E |
| Z51/19 | Engine management crash signal connector sleeve | 30E |
| Z6/15 | Right seat belt buckle circuit 31 connector sleeve | 21E |
| Z6/15 | Right seat belt buckle circuit 31 connector sleeve | 28E |
| Z6/15 | Right seat belt buckle circuit 31 connector sleeve | 43D |
