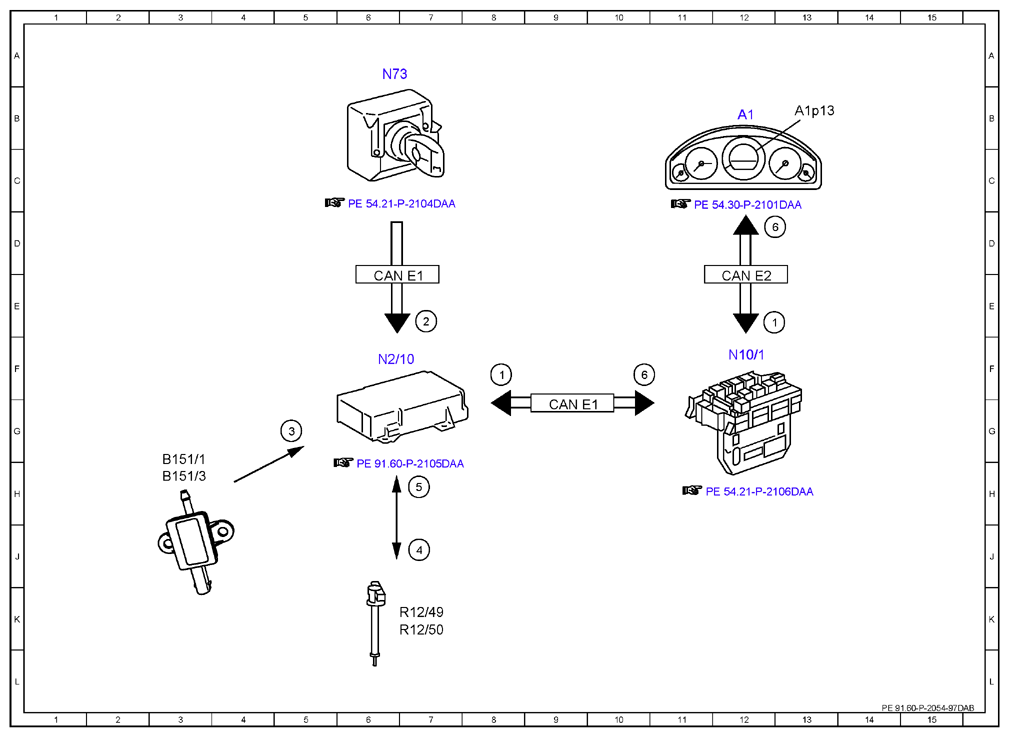

Function schematic for electric pedestrian protection - PE91.60-P-2054-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE U60 (Pedestrian protection) as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle speed, signal | 8F |
| 1 | Vehicle speed, signal | 12E |
| 2 | Circuit 15, status | 7E |
| 3 | Pedestrian protection sensor, status | 5G |
| 4 | Active engine hood squib, actuation | 7J |
| 5 | Active engine hood squib, status | 7H |
| 6 | Supplemental restraint system messages, request | 10F |
| 6 | Supplemental restraint system messages, request | 12D |
| A1 | Instrument cluster | 12B |
| A1p13 | Multifunction display | 13B |
| B151/1 | Left front bumper pedestrian protection sensor | 3H |
| B151/3 | Right front bumper pedestrian protection sensor | 3H |
| CAN E1 | Chassis CAN 1 | 6E |
| CAN E1 | Chassis CAN 1 | 9G |
| CAN E2 | Chassis CAN 2 | 12E |
| N10/1 | Front SAM control unit with fuse and relay module | 12F |
| N2/10 | Supplemental restraint system control unit | 6F |
| N73 | Electronic ignition switch control unit | 6A |
| R12/49 | Left active engine hood squib | 6K |
| R12/50 | Right active engine hood squib | 6K |
