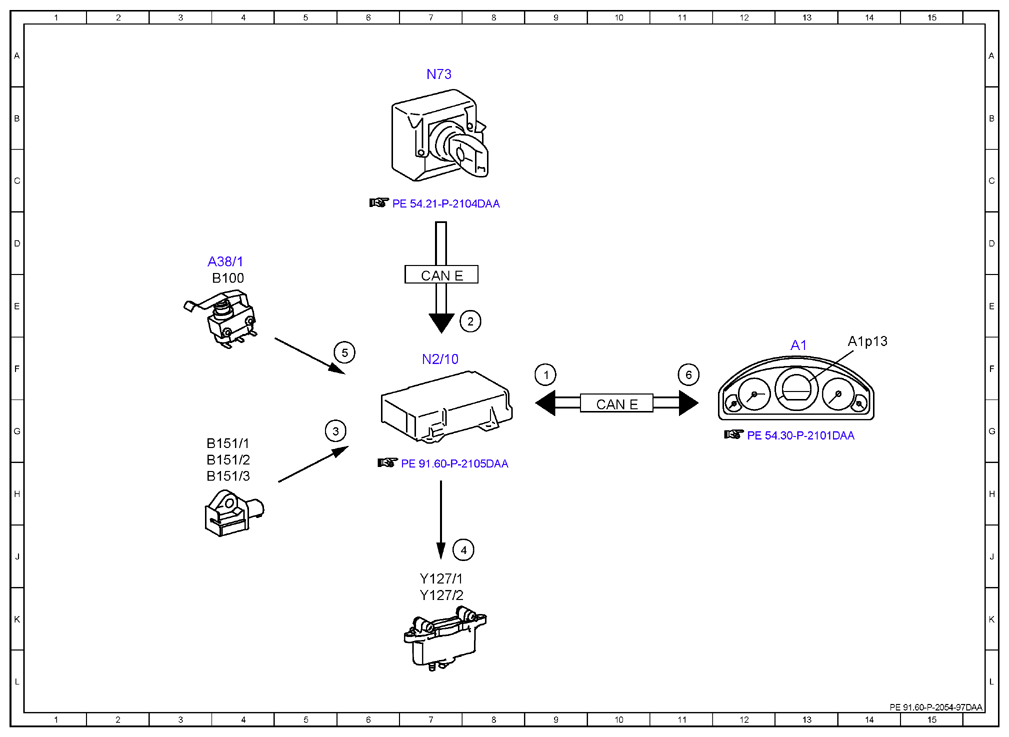

Function schematic for electric pedestrian protection - PE91.60-P-2054-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE U60 (Pedestrian protection) up to model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle speed, signal | 9F |
| 2 | Circuit 15, status | 8E |
| 3 | Pedestrian protection sensor, status | 5G |
| 4 | Engine hood lifter, actuation | 7J |
| 5 | Pedestrian protection Hall sensor, signal | 6F |
| 6 | Instrument cluster message, request | 11F |
| A1 | Instrument cluster | 13F |
| A1p13 | Multifunction display | 14F |
| A38/1 | Pedestrian protection Hall sensor + engine hood ATA [EDW] switch | 3D |
| B100 | Pedestrian protection Hall sensor | 4E |
| B151/1 | Left front bumper pedestrian protection sensor | 3G |
| B151/2 | Center front bumper pedestrian protection sensor | 3H |
| B151/3 | Right front bumper pedestrian protection sensor | 3H |
| CAN E | Chassis CAN | 7E |
| CAN E | Chassis CAN | 10G |
| N2/10 | Supplemental restraint system control unit | 7F |
| N73 | Electronic ignition switch control unit | 7A |
| Y127/1 | Left rear engine hood lifter | 7J |
| Y127/2 | Right rear engine hood lifter | 7K |
