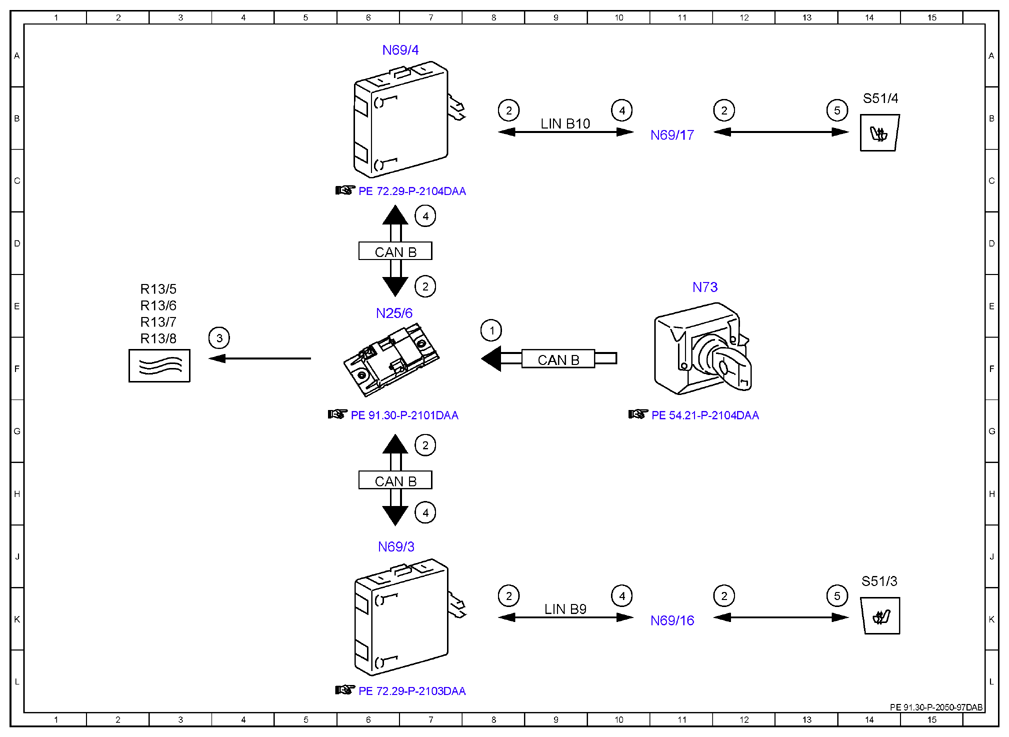

Electrical function schematic, seat heater (SIH) - PE91.30-P-2050-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 872 (Electrically heated left and right rear seats)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8E |
| 2 | Seat heater button, status | 8K |
| 2 | Seat heater button, status | 7G |
| 2 | Seat heater button, status | 7E |
| 2 | Seat heater button, status | 8B |
| 2 | Seat heater button, status | 12K |
| 2 | Seat heater button, status | 12B |
| 3 | Seat heater, actuation | 4F |
| 4 | Seat heater status indication, signal | 7H |
| 4 | Seat heater status indication, signal | 7D |
| 4 | Seat heater status indication, signal | 10K |
| 4 | Seat heater status indication, signal | 10B |
| 5 | Light-emitting diode actuation | 13K |
| 5 | Light-emitting diode actuation | 13B |
| CAN B | Interior CAN | 6H |
| CAN B | Interior CAN | 6D |
| CAN B | Interior CAN | 9F |
| LIN B10 | Right rear door LIN | 9B |
| LIN B9 | Left rear door LIN | 9K |
| N25/6 | Rear seat heaters control unit | 6E |
| N69/16 | Left rear door analog/digital converter | 11K |
| N69/17 | Right rear door analog/digital converter | 11B |
| N69/3 | Left rear door control unit | 6J |
| N69/4 | Right rear door control unit | 6A |
| N73 | Electronic ignition switch control unit | 11E |
| R13/5 | Left rear seat sitting surface heated cushion | 2E |
| R13/6 | Left rear backrest heated cushion | 2E |
| R13/7 | Right rear seat sitting surface heated cushion | 2E |
| R13/8 | Right rear backrest heater pad | 2F |
| S51/3 | Left rear seat heaters button | 14J |
| S51/4 | Right rear seat heaters button | 14B |
