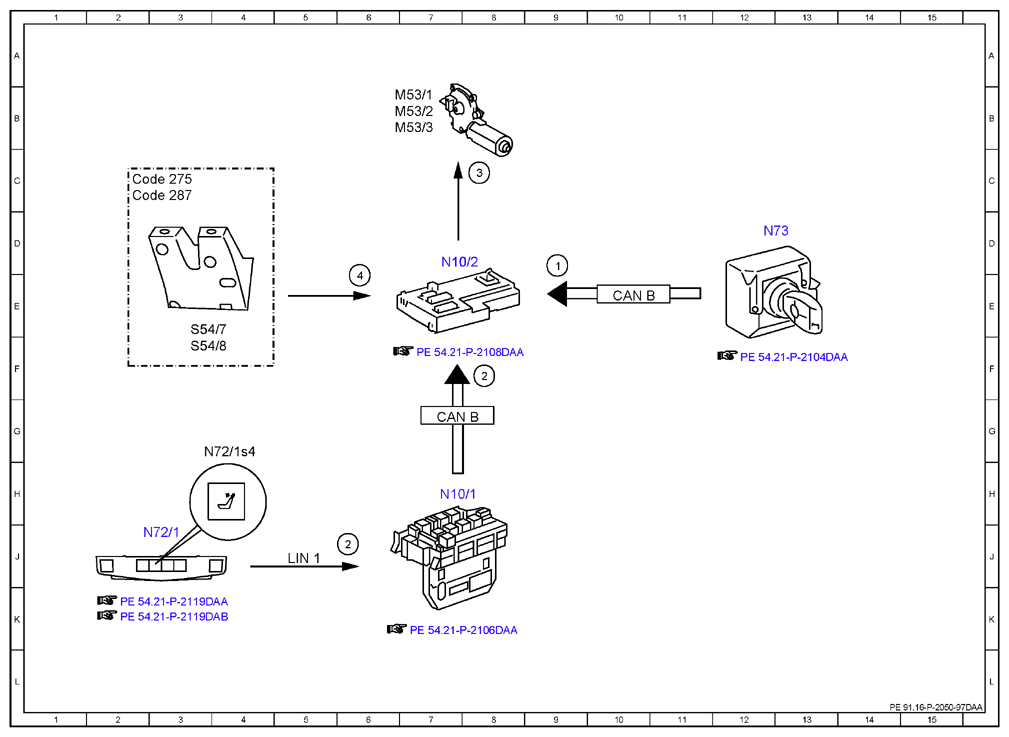

Electrical function schematic for rear retractable rear head restraints (RHR (KAF)) - PE91.16-P-2050-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 9D |
| 2 | Rear head restraints button, status | 6J |
| 2 | Rear head restraints button, status | 8F |
| 3 | Retractable rear head restraints, actuation | 8C |
| 4 | Rear backrest locking, status | 6E |
| CAN B | Interior CAN | 7G |
| CAN B | Interior CAN | 10E |
| Code 275 | Front passenger seat memory package / electrically adjustable driver seat | 2C |
| Code 287 | Through-loading feature | 2C |
| LIN 1 | Instrument panel LIN | 5J |
| M53/1 | Left rear head restraint seat adjustment motor | 6B |
| M53/2 | Right rear head restraint seat adjustment motor | 6B |
| M53/3 | Center rear head restraint seat adjustment motor | 6B |
| N10/1 | Front SAM control unit with fuse and relay module | 7H |
| N10/2 | Rear SAM control unit with fuse and relay module | 7D |
| N72/1 | Upper control panel control unit | 2J |
| N72/1s4 | Rear head restraints button | 3G |
| N73 | Electronic ignition switch control unit | 12D |
| S54/7 | Left rear backrest lock switch | 3E |
| S54/8 | Right rear backrest lock switch | 3F |
