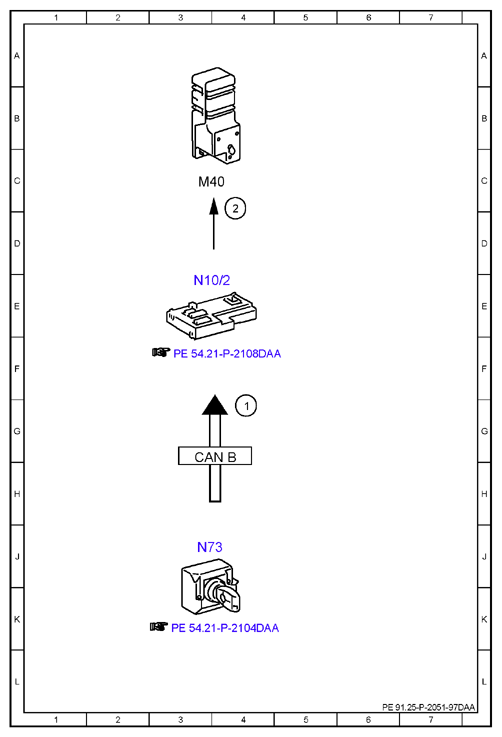

Electrical function schematic for multicontour seat - PE91.25-P-2051-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 409 (Left/right front multicontour seat)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 4G |
| 2 | Power supply, status ON | 4D |
| CAN B | Interior CAN | 3G |
| M40 | Multicontour seat pneumatic pump | 3C |
| N10/2 | Rear SAM control unit with fuse and relay module | 3E |
| N73 | Electronic ignition switch control unit | 3J |
