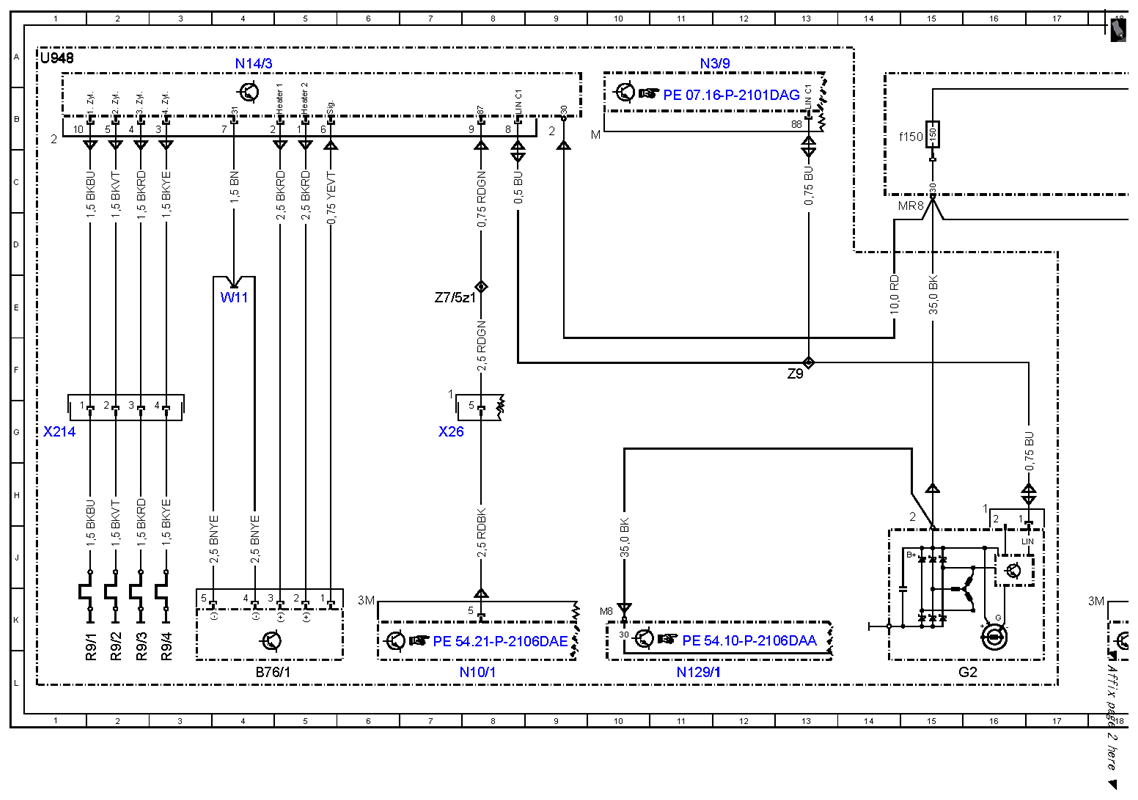

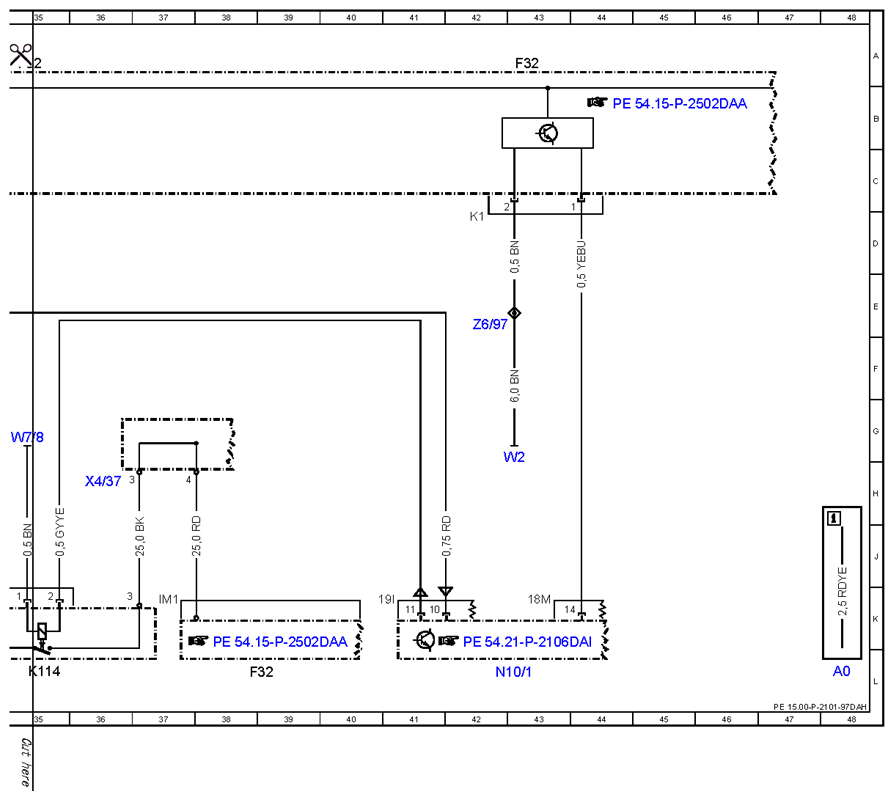

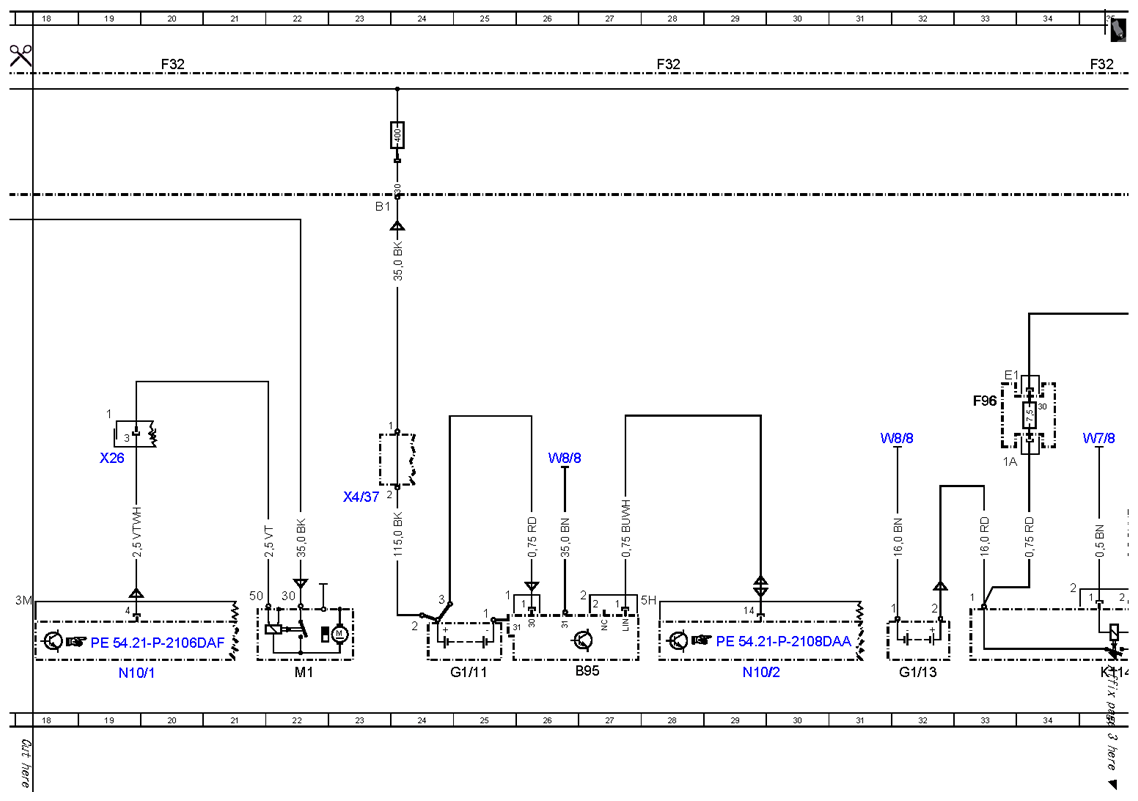

Wiring diagram of starter, alternator, battery - PE15.00-P-2101-97DAH
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.952 in MODEL 212.095
ENGINE 651.924 in MODEL 212.098/298
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| B76/1 | Condensation sensor for fuel filter with heating element | 4L |
| B95 | Battery sensor | 27L |
| F32 | Front electrical prefuse box | 38L |
| F32 | Front electrical prefuse box | 35A |
| F32 | Front electrical prefuse box | 28A |
| F32 | Front electrical prefuse box | 20A |
| F32 | Front electrical prefuse box | 43A |
| F32f150 | Pyrofuse 150 | 15B |
| F96 | Additional battery circuit 30 fuse | 33G |
| G1/11 | Rear on-board electrical system battery | 25L |
| G1/13 | ECO start/stop function additional battery | 32L |
| G2 | Alternator | 16L |
| K114 | ECO start/stop function additional battery relay | 35L |
| LIN C1 | Drive train LIN | 8B |
| LIN C1 | Drive train LIN | 13B |
| M1 | Starter | 22L |
| N10/1 | Front SAM control unit with fuse and relay module | 19L |
| N10/1 | Front SAM control unit with fuse and relay module | 42L |
| N10/1 | Front SAM control unit with fuse and relay module | 8L |
| N10/2 | Rear SAM control unit with fuse and relay module | 29L |
| N129/1 | Power electronics control unit | 11L |
| N14/3 | Glow output stage | 4A |
| N3/9 | CDI control unit | 11A |
| R9/1 | Cylinder 1 glow plug | 2L |
| R9/2 | Cylinder 2 glow plug | 2L |
| R9/3 | Cylinder 3 glow plug | 2L |
| R9/4 | Cylinder 4 glow plug | 3L |
| U948 | Valid for diesel engine 651 | 1A |
| W11 | Combustion engine ground point | 4E |
| W2 | Right front ground point at lamp unit | 43H |
| W7/8 | Right wheelhouse trunk ground point | 35G |
| W8/8 | Ground point (right rear end) | 31G |
| W8/8 | Ground point (right rear end) | 26G |
| X214 | Glow plug electrical connector | 1G |
| X26 | Interior and engine wiring harness electrical connector | 19H |
| X26 | Interior and engine wiring harness electrical connector | 7G |
| X4/37 | Terminal block (circuit 30) | 36H |
| X4/37 | Terminal block (circuit 30) | 23H |
| Z6/97 | Right lamp unit circuit 31 connector sleeve | 42E |
| Z7/5z1 | Circuit 87 connector sleeve | 7E |
| Z9 | Connector sleeve 1 | 13F |
