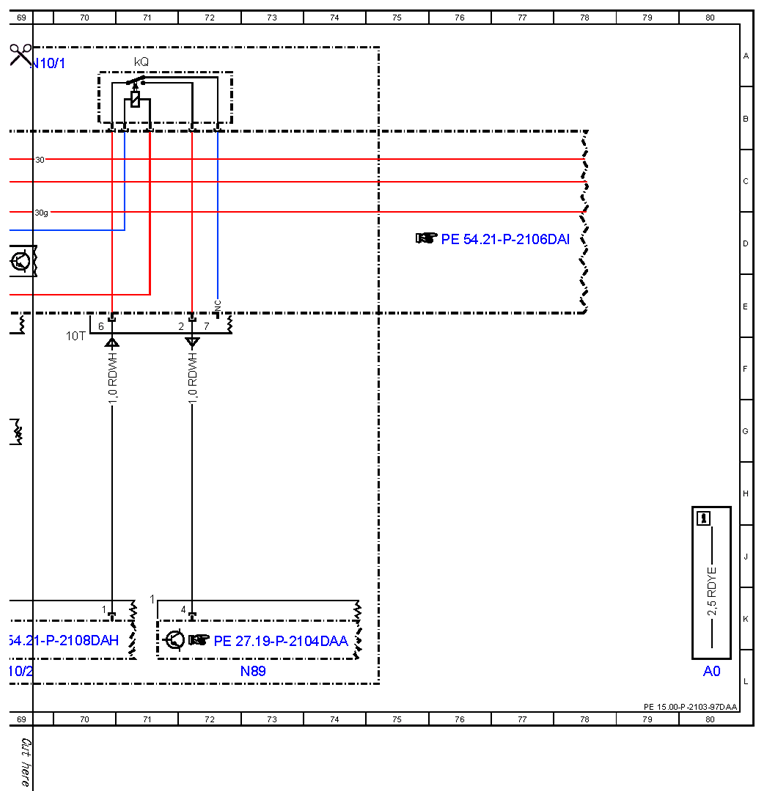

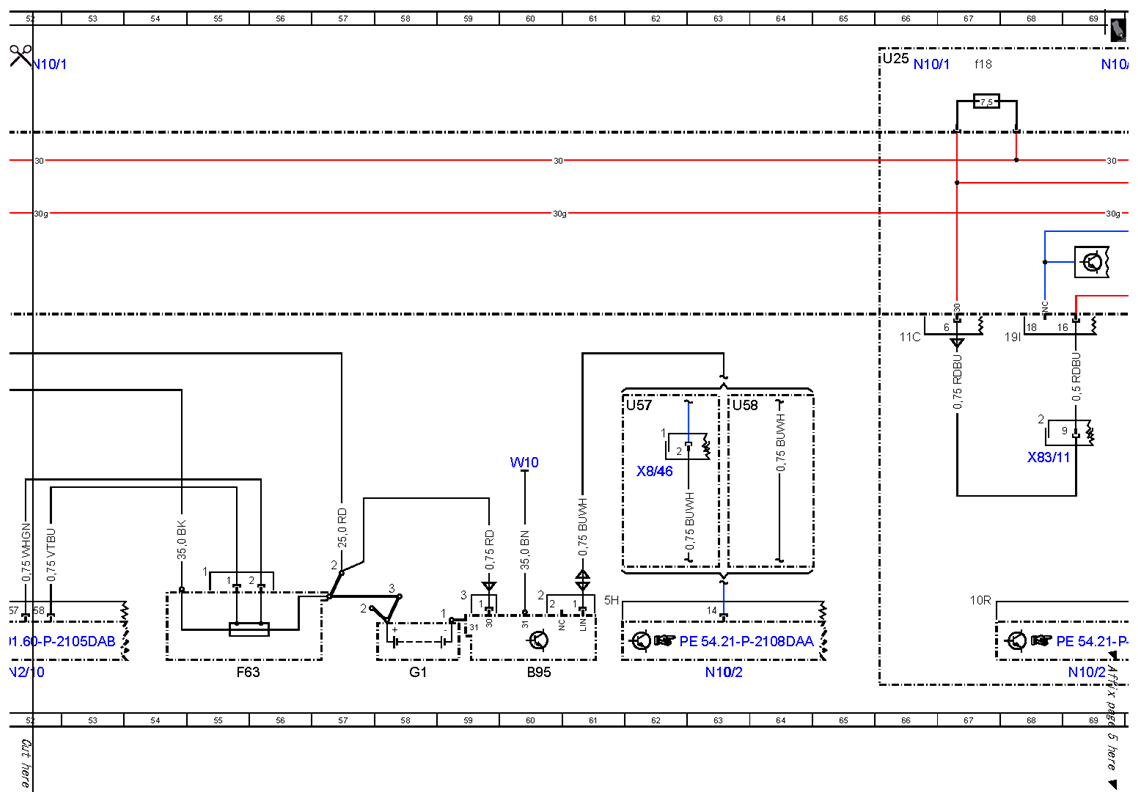

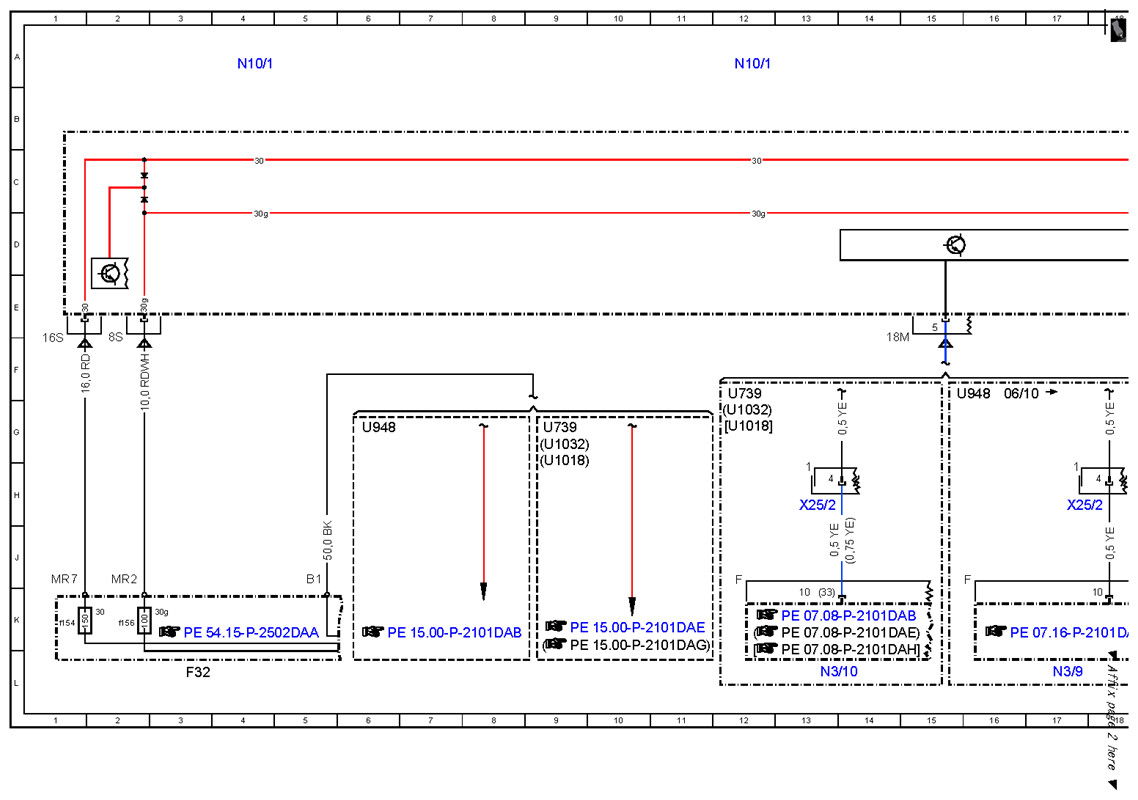

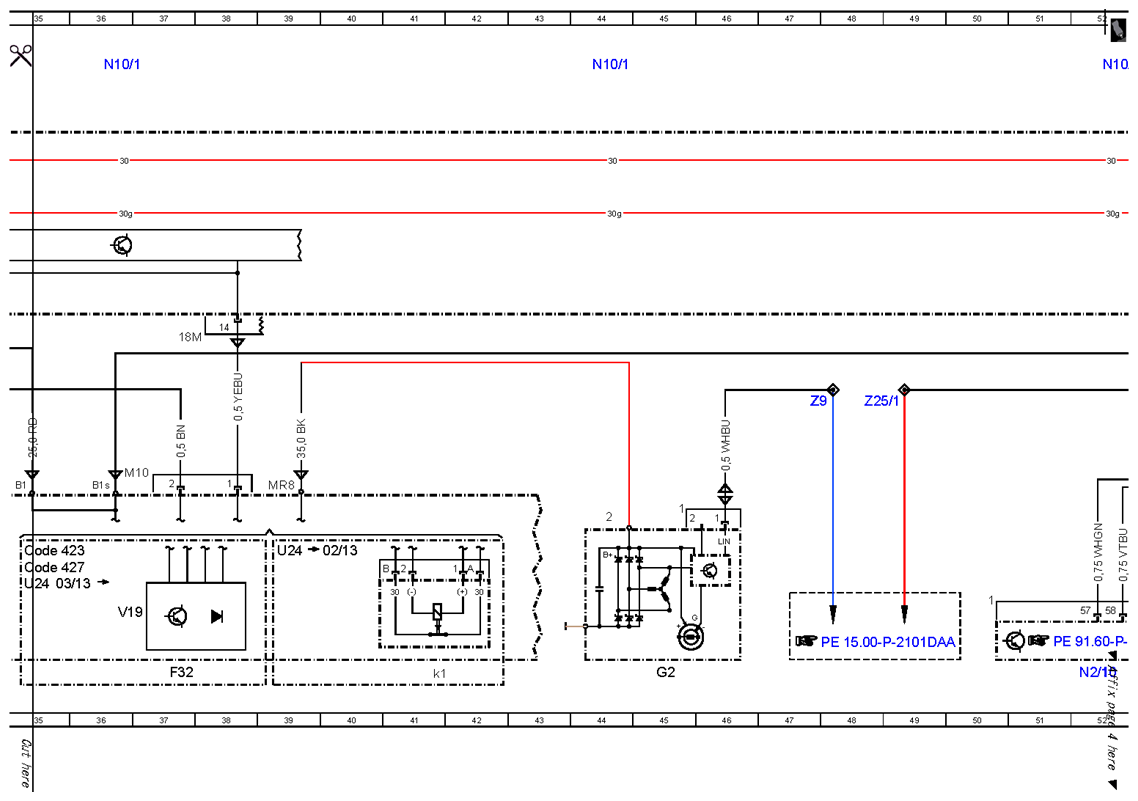

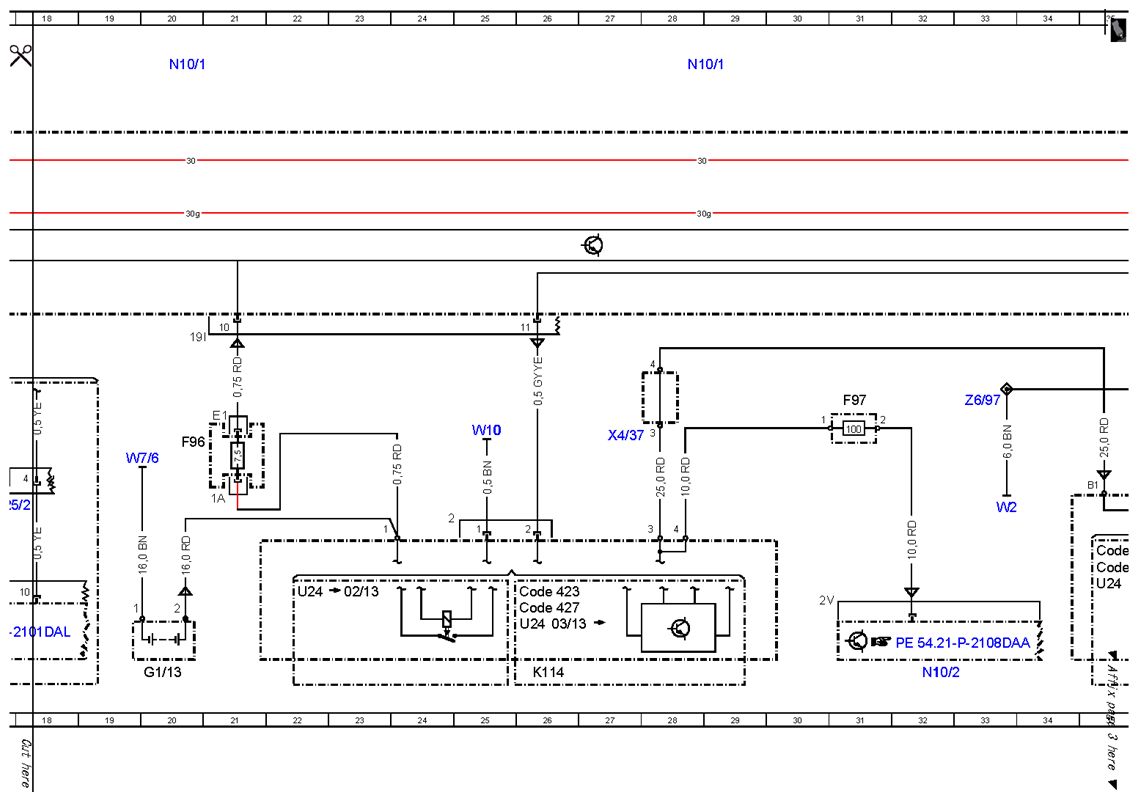

Wiring diagram for Start/Stop engine - PE15.00-P-2103-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157, 271, 274, 276, 278, 642, 651 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| B95 | Battery sensor | 60L |
| Code 423 | 5-speed automatic transmission | 26K |
| Code 423 | 5-speed automatic transmission | 35J |
| Code 427 | 7-speed automatic transmission | 26K |
| Code 427 | 7-speed automatic transmission | 35J |
| F32 | Front electrical prefuse box | 3L |
| F32 | Front electrical prefuse box | 37L |
| F32f154 | Prefuse 154 | 1K |
| F32f156 | Prefuse 156 | 2K |
| F32k1 | Decoupling relay | 41L |
| F63 | Pyrofuse | 55L |
| F96 | Additional battery circuit 30 fuse | 20G |
| F97 | Rear SAM control unit with fuse and relay module circuit 30 fuse | 31G |
| G1 | On-board electrical system battery | 58L |
| G1/13 | ECO start/stop function additional battery | 20L |
| G2 | Alternator | 45L |
| K114 | ECO start/stop function additional battery relay | 26L |
| N10/1 | Front SAM control unit with fuse and relay module | 36A |
| N10/1 | Front SAM control unit with fuse and relay module | 4A |
| N10/1 | Front SAM control unit with fuse and relay module | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 20A |
| N10/1 | Front SAM control unit with fuse and relay module | 28A |
| N10/1 | Front SAM control unit with fuse and relay module | 66A |
| N10/1 | Front SAM control unit with fuse and relay module | 44A |
| N10/1 | Front SAM control unit with fuse and relay module | 52A |
| N10/1 | Front SAM control unit with fuse and relay module | 69A |
| N10/1f18 | Fuse 18 | 67A |
| N10/1kQ | Transmission oil auxiliary pump relay | 71A |
| N10/2 | Rear SAM control unit with fuse and relay module | 32L |
| N10/2 | Rear SAM control unit with fuse and relay module | 69L |
| N10/2 | Rear SAM control unit with fuse and relay module | 63L |
| N2/10 | Supplemental restraint system control unit | 52L |
| N3/10 | ME-SFI [ME] control unit | 13L |
| N3/9 | CDI control unit | 17L |
| N89 | Transmission oil auxiliary pump control unit | 73L |
| U1018 | Valid for gasoline engine 276 | 12G |
| U1018 | Valid for gasoline engine 276 | 9H |
| U1032 | Valid for engine 278 and 157 | 9G |
| U1032 | Valid for engine 278 and 157 | 12G |
| U24 | Valid for manual transmission | 26K |
| U24 | Valid for manual transmission | 22K |
| U24 | Valid for manual transmission | 39J |
| U24 | Valid for manual transmission | 35K |
| U25 | Valid for automatic transmission | 66A |
| U57 | Valid for model 212.2 | 62G |
| U58 | Valid for model 212.0/1 | 63G |
| U739 | Valid for gasoline engine 271 DE | 9G |
| U739 | Valid for gasoline engine 271 DE | 12F |
| U948 | Valid for diesel engine 651 | 6G |
| U948 | Valid for diesel engine 651 | 15F |
| V19 | ECO start/stop function diode | 36K |
| W10 | Right front battery ground point | 25G |
| W10 | Right front battery ground point | 60H |
| W2 | Right front ground point at lamp unit | 33H |
| W7/6 | Rear additional battery ground point | 19G |
| X25/2 | Engine compartment/interior electrical connector | 13H |
| X25/2 | Engine compartment/interior electrical connector | 17H |
| X4/37 | Terminal block (circuit 30) | 27G |
| X8/46 | Right vehicle interior and tailgate electrical connector | 62H |
| X83/11 | Circuit 56 exterior lights switch electrical connector | 68G |
| Z25/1 | Starter circuit 30 terminal block connector sleeve | 48G |
| Z6/97 | Right lamp unit circuit 31 connector sleeve | 33G |
| Z9 | Connector sleeve 1 | 47G |
