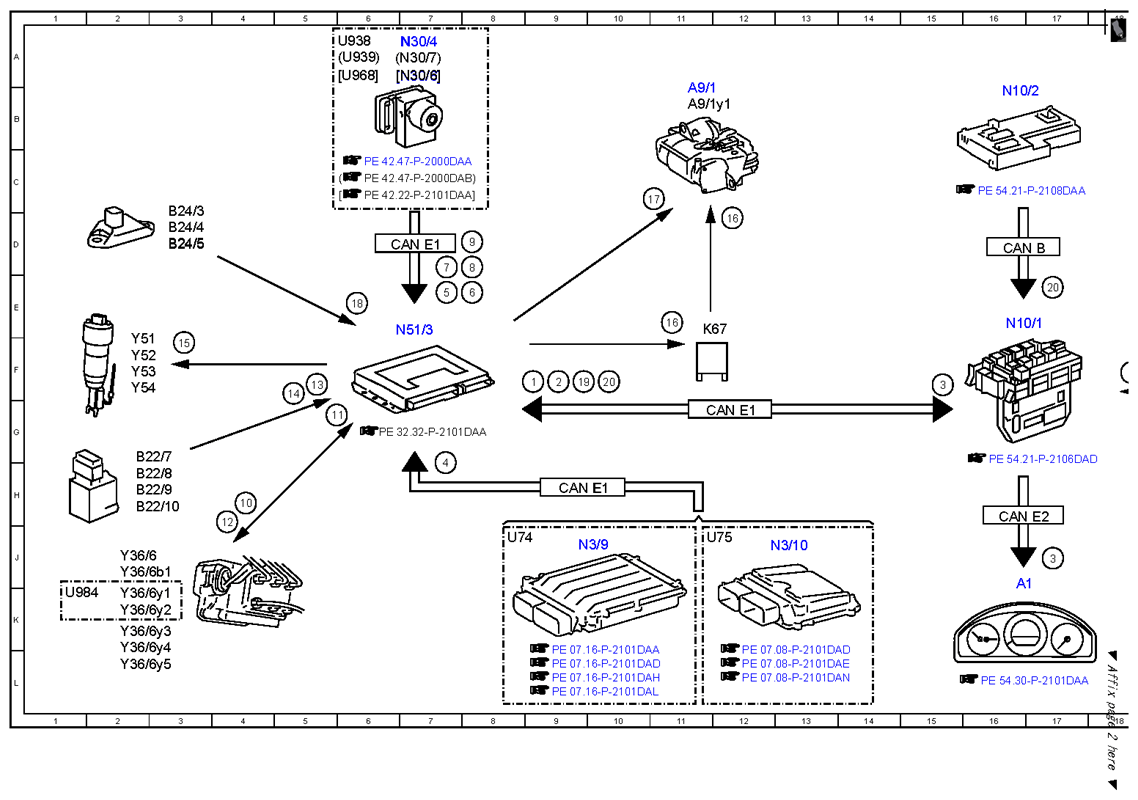

Electrical function schematic for Airmatic - PE32.32-P-2050-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014 with CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment))
MODEL 212 as of model year 2014 with CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) without CODE 488 (Steel/air suspension)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Electronic level control button, status | 9F |
| 1 | Electronic level control button, status | 18F |
| 10 | Central reservoir filling valve, actuation | 4H |
| 11 | Pressure sensor, signal | 5G |
| 12 | Level control valve, actuation | 4J |
| 13 | Vehicle level, signal | 5F |
| 14 | Damper speed, signal | 5F |
| 15 | Damping valve units, actuation | 3F |
| 16 | AIRMATIC compressor, actuation | 11E |
| 16 | AIRMATIC compressor, actuation | 12D |
| 17 | AIRMATIC pressure reduction valve, actuation | 11C |
| 18 | Body acceleration sensor, signal | 6E |
| 19 | Wake-up, signal | 9F |
| 2 | Comfort and Sport button, status | 9F |
| 2 | Comfort and Sport button, status | 19F |
| 20 | Battery, status | 10F |
| 20 | Battery, status | 17E |
| 3 | Warning and system messages, actuation | 15F |
| 3 | Warning and system messages, actuation | 17J |
| 4 | Engine speed, signal | 7H |
| 5 | Wheel speed, signal | 7E |
| 6 | Braking torque, signal | 8E |
| 7 | Steering angle, signal | 7D |
| 8 | Brake light switch, signal | 8D |
| 9 | Shift stage, status | 8D |
| A1 | Instrument cluster | 16K |
| A9/1 | AIRMATIC compressor | 11B |
| A9/1y1 | AIRMATIC pressure reduction valve | 11B |
| B22/10 | Right rear level sensor | 2H |
| B22/7 | Left rear level sensor | 2G |
| B22/8 | Left front level sensor | 2H |
| B22/9 | Right front level sensor | 2H |
| B24/3 | Left front body lateral acceleration sensor | 3D |
| B24/4 | Right front body lateral acceleration sensor | 3D |
| B24/5 | Left rear body lateral acceleration sensor | 3D |
| CAN B | Interior CAN | 16D |
| CAN E1 | Chassis CAN 1 | 9H |
| CAN E1 | Chassis CAN 1 | 12G |
| CAN E1 | Chassis CAN 1 | 7D |
| CAN E2 | Chassis CAN 2 | 16H |
| K67 | AIRMATIC relay | 11E |
| LIN 1 | Instrument panel LIN | 19F |
| N10/1 | Front SAM control unit with fuse and relay module | 16E |
| N10/2 | Rear SAM control unit with fuse and relay module | 16B |
| N3/10 | ME-SFI [ME] control unit | 12J |
| N3/9 | CDI control unit | 9J |
| N30/4 | Electronic Stability Program control unit | 7A |
| N30/6 | Regenerative braking system control unit | 7A |
| N30/7 | Premium Electronic Stability Program control unit | 7A |
| N51/3 | AIRMATIC control unit | 7E |
| S77s1 | Electronic level control button | 22E |
| S77s2 | Comfort and Sport button | 22F |
| U74 | Valid for diesel engines | 8J |
| U75 | Valid for gasoline engines | 11J |
| U938 | Valid for ESP Basic | 6A |
| U939 | Valid for ESP Premium | 6A |
| U968 | Valid for mild hybrid drive | 6A |
| U984 | Not valid for steel/air suspension | 1K |
| Y36/6 | AIRMATIC valve unit | 2J |
| Y36/6b1 | AIRMATIC pressure sensor | 2J |
| Y36/6y1 | Left front level control valve | 2K |
| Y36/6y2 | Right front level control valve | 2K |
| Y36/6y3 | Left rear level control valve | 2K |
| Y36/6y4 | Right rear level valve | 2L |
| Y36/6y5 | AIRMATIC central reservoir filling valve | 2L |
| Y51 | Left front axle damping valve unit | 2F |
| Y52 | Right front axle damping valve unit | 2F |
| Y53 | Left rear axle damping valve unit | 2F |
| Y54 | Right rear axle damping valve unit | 2F |
