Remove/install air suspension control unit - AR32.22-P-6000EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1 with CODE (489) AIRmatic (air suspension with continuous damper adjustment) with CODE (488) Steel/air suspension
MODEL 212.2
MODEL 218 with CODE (489) AIRmatic (air suspension with continuous damper adjustment) with CODE (488) Steel/air suspension
Shown on model 212
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

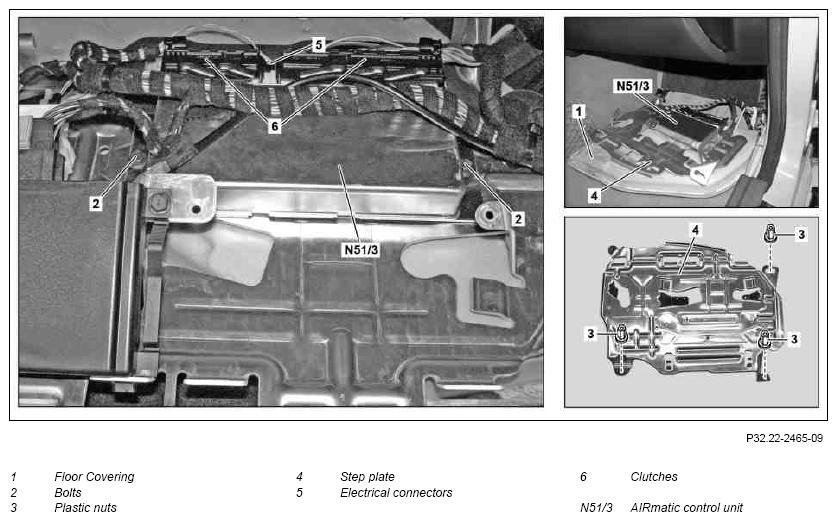

| 1 | Move the front passenger seat into the rearmost position | ||
| 2 | Fold back floor covering (1) in front passenger footwell | ||
| 3 | Unscrew plastic nuts (3) and fold step plate (4) to rear | ||
| 4 | Push locking slide of the two couplings (6) on the AIRmatic control unit (N51/3) in the direction of the arrow as far as the stop and detach electrical connections | ||
| 5 | Disconnect electrical connector (5) | ||
| 6 | Remove bolts (2) | ||
| 7 | Remove AIRmatic control unit (N51/3) | ||
| 8 | Install in the reverse order | ||
| 9 | Perform control unit adaptations using STAR DIAGNOSIS, read out fault memory and erase if necessary | When replacing AIRmatic control unit (N51/3). | AD00.00-P-2000-04A |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 10 | Perform engine test run and check AIRmatic for proper operation |
