Remove/install air suspension button group - AR32.22-P-0001EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except-212.274/277) with CODE 279 (Electronic gear selector) with CODE 489 (AIRMATIC)
MODEL 218 (except 218.374/375/376/392/974/975/976/992) with CODE 489 (AIRMATIC)
Shown on MODEL 218 as of model year 2015
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

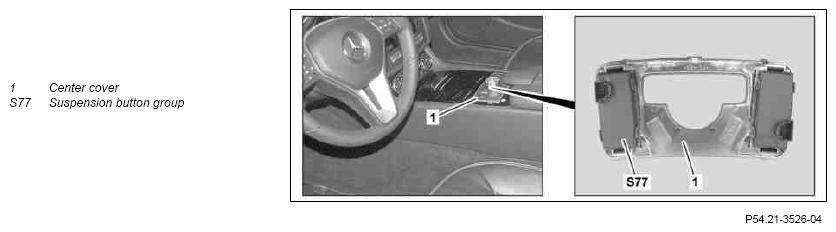

| 1 | Remove center cover (1) on center console | AR68.20-P-2350EW | |
| 2 | Unclip suspension button group (S77) from center cover (1) | ||
| 3 | Install in the reverse order |
