Clamp/release front spring - AR32.20-P-0200-05CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 172, 204, 207

MODEL 212, 218 except CODE (489) AIRMATIC (air suspension with continuous damper adjustment)

Fig 1: Identifying Adapter Plate (172 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Tensioning Device (203 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Clamping Plate (203 589 01 63 02)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Clamping Plate (204 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Adapter Plate (204 589 02 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Adapter Plate (212 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Adapter Plate (212 589 02 63 00)

Courtesy of MERCEDES-BENZ USA

Positioning dimensions for tensioning device:

Fig 8: Positioning Dimensions For Tensioning Device

Courtesy of MERCEDES-BENZ USA

Model 172 without code (483) ADVANCED AGILITY package	H = 5 mm L1 = 260 - 280 mm L2 = 240 - 260 mm L3 = 45 - 50 mm L4 = 190 - 200 mm L5 = 140 - 150 mm
Model 172 with code (483) ADVANCED AGILITY package	H = 5 mm L1 = 230 - 240 mm L2 = 210 - 220 mm L3 = 45 - 48 mm L4 = 185 mm L5 = 135 - 140 mm
Model 204.0/2/3, 207, 204.9 with code (486) Sports suspension	H = 10 mm L1 = 270 - 285 mm L2 = 230 - 250 mm L3 = 55 mm L4 = 160 - 165 mm L5 = 150 mm
Model 204.9 without code (486) Sports suspension	H = 40 mm L1 = 250 - 270 mm L2 = 225 - 230 mm L3 = 60 mm L4 = 160 - 175 mm L5 = 130 - 140 mm
Model 212 with code (482) Suspension for increased ground clearance	H = 30 mm L1 = 285 - 290 mm L2 = 250 - 270 mm L3 = 70 mm L4 = 175 - 185 mm L5 = 150 - 160 mm
Model 212 with code (485) Comfort suspension	H = 30 mm L1 = 290 mm L2 = 245 - 260 mm L3 = 80 mm L4 = 185 - 200 mm L5 = 160 - 170 mm
Model 212 with code (677) AVANTGARDE suspension, model 218 without code (486) Sports suspension and without code (488) Steel/air suspension	H = 30 mm L1 = 290 mm L2 = 230 - 240 mm L3 = 55 mm L4 = 160 - 170 mm L5 = 130 - 145 mm
Model 212, 218 with code (486) Sports suspension or code (488) Steel/air suspension	H = 10 mm L1 = 210 - 220 mm L2 = 180 - 195 mm L3 = 50 mm L4 = 155 - 160 mm L5 = 115 - 130 mm

Dismantle front spring

The clamping devices must be mounted to prevent unintended twisting of the front spring.

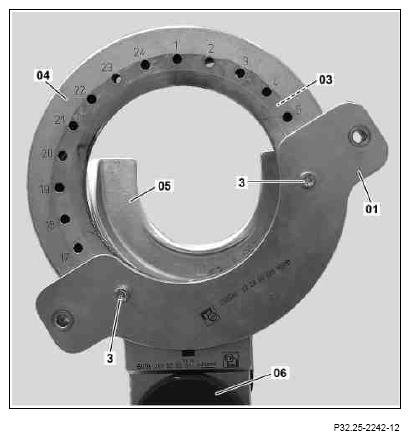

Fig 9: Mounting Clamping Device Part 1 And Spacer Ring On Upper Clamping Plate With Bolts

Courtesy of MERCEDES-BENZ USA

Mount clamping device part 1 (01) and spacer ring (03) on upper clamping plate (04) with bolts (3).
Assembly position for clamping device:

Model 172:

The clamping device part 1 (01) must be positioned in bore 11 and 19 relative to the upper clamping plate (04).

Model 204, 207, 212, 218:

The clamping device part 1 (01) must be positioned in bore 7 and 15 relative to the upper clamping plate (04).

Assignment of spacer ring (03):

Model 172:
- Use spacer ring (03) from 172 589 00 63 00. Model 204.0/2/3, 207:
- Use spacer ring (03) from 204 589 00 63 00. Model 204.9:
- Use spacer ring (03) from 204 589 02 63 00.
Model 212 with code (482) Suspension for greater ground clearance or code (485) Comfort suspension or code (677) AVANTGARDE suspension, model 218 without code (486) Sports suspension and without code (488) Steel/air suspension:
- Use spacer ring (03) from 212 589 00 63 00. Model 212, 218 with code (486) Sports suspension or code (488) Steel/air suspension:
- Use spacer ring (03) from 212 589 02 63 00.

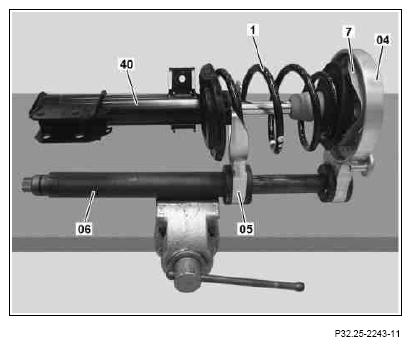

Fig 10: Moving Tensioning Device Into Assembly Position

Courtesy of MERCEDES-BENZ USA

Mount lower clamping plate (05) and move tensioning device (06) into assembly position.
Assignment of clamping plate (05):

Model 172, 204, 207, 218,
- Use clamping plate (05) from 203 589 01 63 02. For model 204.9 also use protective insert 204 589 02 63 02 from 204 589 02 63 00.
  Model 212, with code (486) Sports suspension or code (488) Steel/air suspension or code (677) AVANTGARDE suspension:
- Use clamping plate (05) from 203 589 01 63 02. Model 212 with code (482) Suspension for greater ground clearance or code (485) Comfort suspension:
- Use clamping plate (05) 212 589 00 63 00.
Insert suspension strut (40) into preassembled upper clamping plate (04) and lower clamping plate (05).
Insert suspension strut (40) by turning between upper and lower clamping plate (04, 05).
Align head bearing (7) with spacer ring (03) and move tensioning device (06) into insert position "L4".
The head bearing (7) only fits in one position in the spacer ring (03).

Fig 11: Mounting Clamping Device Part 2 On Clamping Device Part 1 With Clamp Bolts

Courtesy of MERCEDES-BENZ USA

Mount clamping device part 2 (02) on clamping device part 1 (01) with clamp bolts (2).
Tighten clamp bolts (2) by hand until the clamping device part 2 (02) abuts the front spring (1).

Assignment of clamp bolts (2):

Model 204.0/2/3, 207, model 212 with code (482) Suspension for greater ground clearance or code (485) Comfort suspension or code (677) AVANTGARDE suspension, model 218 without code (486) Sports suspension or without code (488) Steel/air suspension:
- Use clamp bolts (2) from 204 589 00 63 00.
  Model 172, 204.9

  model 212, 218 with code (486) Sports suspension or code (488) Steel/air suspension:
- Use clamp bolts (2) from 204 589 02 63 00.
Twist front spring (1) so that the start of the spring coil reaches position "H" (arrow).
Clamp front spring (1) until the clamping position "L5" is reached.
Tighten clamping bolts (2).
Always observe the guide value of 5 Nm. Otherwise, the thrust bearing (5) may be damaged or the front spring (1) may twist during clamping.

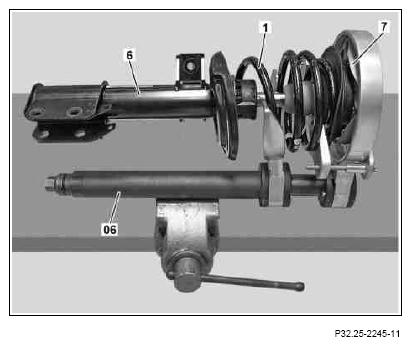

Fig 12: Removing Front Spring And Head Bearing

Courtesy of MERCEDES-BENZ USA

Clamp front spring (1) with tensioning device (06) until the clamping position "L3" is reached.
Detach nut from piston rod.
Counterhold piston rod with Torx TX50
Move out suspension strut (6).
Move tensioning device (06) into removal position "L1".
Remove front spring (1) and head bearing (7).
Mount front spring (1)

Fig 13: Mounting Clamping Device Part 1 And Spacer Ring On Upper Clamping Plate With Bolts
Courtesy of MERCEDES-BENZ USA

The clamping devices must be mounted to prevent unintended twisting of the front spring (1).
Mount clamping device part 1 (01) and spacer ring (03) on upper clamping plate (04) with bolts.
Assembly position for clamping device:

Model 172:

The clamping device part 1 (01) must be positioned in bore 11 and 19 relative to the upper clamping plate (04).

Model 204, 207, 212, 218:

The clamping device part 1 (01) must be positioned in bore 7 and 15 relative to the upper clamping plate (04).

Assignment of spacer ring (03):

Model 172:
- Use spacer ring (03) from 172 589 00 63 00. Model 204.0/2/3, 207:
- Use spacer ring (03) from 204 589 00 63 00. Model 204.9:
- Use spacer ring (03) from 204 589 02 63 00. Model 212 with code (482) Suspension for greater ground clearance or code (485) Comfort suspension or code (677) AVANTGARDE suspension, model 218 without code (486) Sports suspension and without code (488) Steel/air suspension:
- Use spacer ring (03) from 212 589 00 63 00.
  Model 212, 218 with code (486) Sports suspension or code (488) Steel/air suspension:
- Use spacer ring (03) from 212 589 02 63 00.
Mount lower clamping plate (05) and move tensioning device (06) into assembly position.
Assignment of clamping plate (05):

Model 172, 204, 207, 218,
- Use clamping plate (05) from 203 589 01 63 02.
  For model 204.9 also use protective insert 204 589 02 63 02 from 204 589 02 63 00.

  Model 212, with code (486) Sports suspension or code (488) Steel/air suspension or code (677) AVANTGARDE suspension:
- Use clamping plate (05) from 203 589 01 63 02.
  Model 212 with code (482) Suspension for greater ground clearance or code (485) Comfort suspension:
- Use clamping plate (05) 212 589 00 63 00.
Place head bearing (7) in spacer ring (03).
Move tensioning device (06) into insert position "L1" and insert front spring (1).
The head bearing (7) only fits in one position in the spacer ring (03) and must abut the upper clamping plate (04).

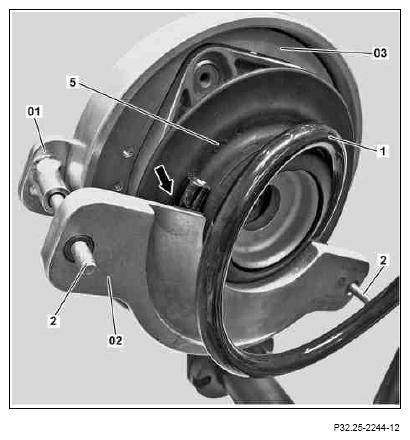

Fig 14: Mounting Clamping Device Part 2 On Clamping Device Part 1 With Clamp Bolts

Courtesy of MERCEDES-BENZ USA

Mount clamping device part 2 (02) on clamping device part 1 (01) with clamp bolts (2) .
Tighten clamp bolts (2) by hand until the clamping device part 2 (02) abuts the front spring (1).

Assignment of clamp bolts (2):

Model 204.0/2/3, 207, model 212 with code (482) Suspension for greater ground clearance or code (485) Comfort suspension or code (677) AVANTGARDE suspension, model 218 without code (486) Sports suspension or without code (488) Steel/air suspension:
- Use clamp bolts (2) from 204 589 00 63 00.
  Model 172, 204.9 model 212, 218 with code (486) Sports suspension or code (488) Steel/air suspension:
- Use clamp bolts (2) from 204 589 02 63 00.
Twist front spring (1) so that the start of the spring coil reaches position "H" (arrow).
So that the front spring (1) can be correctly applied at the thrust bearing (5), the front spring (1) may not yet be positioned in the lower clamping plate.
Tighten clamp bolts (2).
Always observe the guide value of 5 Nm. Otherwise, the thrust bearing (5) may be damaged or the front spring (1) may twist during clamping.

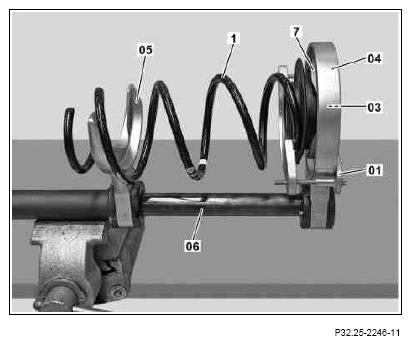

Fig 15: Locating Clamping Device Part 2 And Front Spring

Courtesy of MERCEDES-BENZ USA

Position front spring (1) in the lower clamping plate (05) and move tensioning device (06) into the clamping position "L5".
Check positioning of front spring (1) in the tensioning device (06) and in the clamping plates (04, 05).
Clamp front spring (1) until the clamping position "L3" is reached.
Clamp carefully. Otherwise clamping device part 2 (02) may damage the front spring (1) (arrow).

Fig 16: Front Spring, Suspension Strut And Lower Spring Cup

Courtesy of MERCEDES-BENZ USA

Insert suspension strut (6) and mount new nut on piston rod.
Counterhold piston rod with Torx T50

Observe position of front spring (1) in lower spring cup (8). The end of the spring coil must abut the end stop (9) in the lower spring cup (8).
Release front spring (1) until the release position "L5" is reached.
Do not release front spring (1) further. Otherwise there is a risk of damaging clamping device part 1 (01) and clamping device part 2 (02).
Detach clamping device part 2 (02) from clamping device part 1 (01) with clamp bolts (2) .
Move tensioning device (06) into removal position "L4".
Detach suspension strut (40) from tensioning device (06).
Detach suspension strut (40) by turning out of upper and lower clamping plate (04, 05).
