AIRMATIC, location of components - GF32.22-P-0003-05FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 with CODE 489 (AIRMATIC (air suspension with continuous damper adjustment))

Shown on model 212.0 up to model year 2014

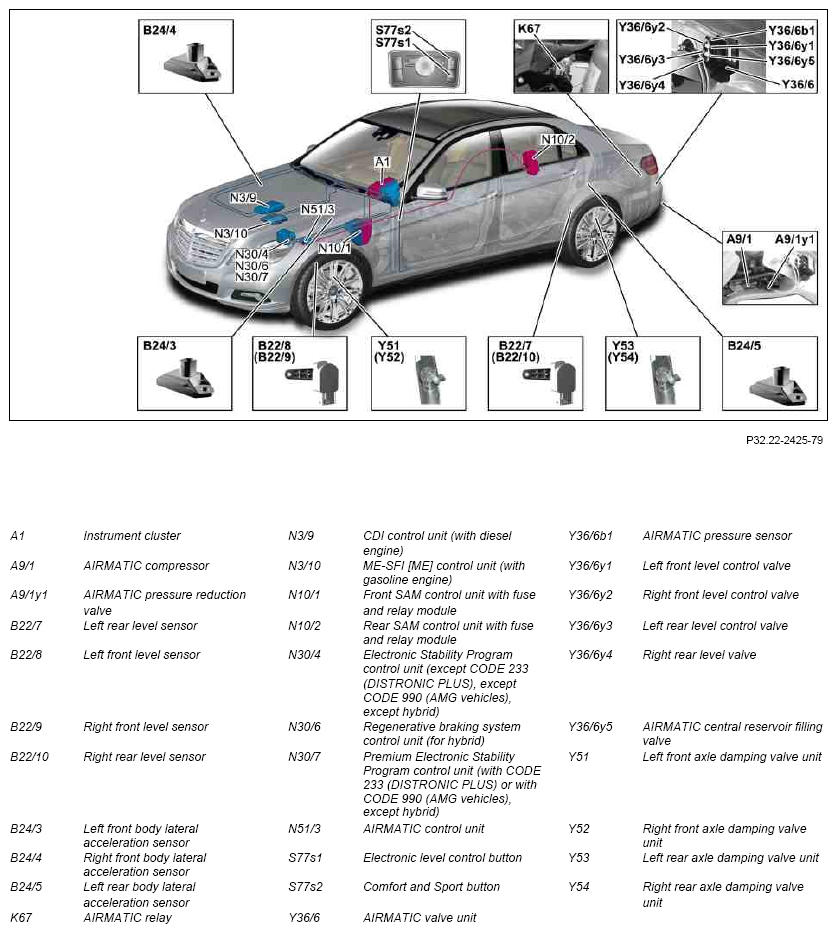

Fig 1: AIRMATIC Components - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA
